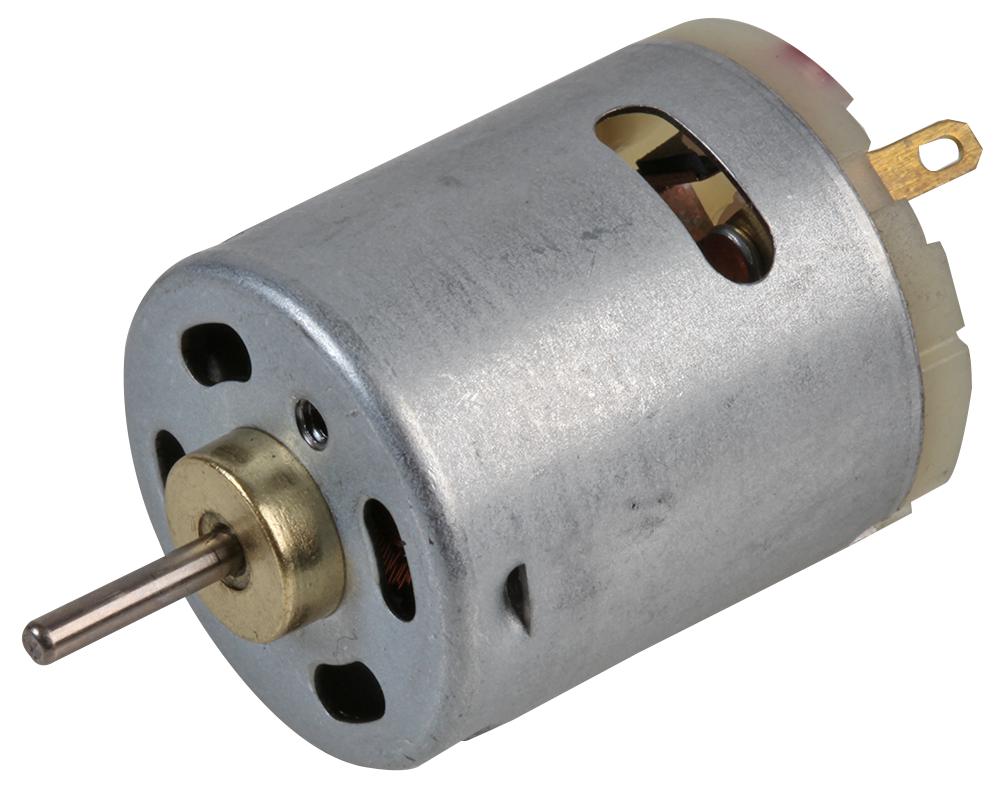

This PEL00882 is DC brushed motor. Its small sizes alongside with the high torque allows to use in small electronics applications, such as for example: robotics, portable devices, DIY electronics kits, pumps. The motor could be used as it is, or it could be mounted on the base (PCB, External Enclosure) by using two mounting holes.
- Suitable for water pumps, robotics etc..
- Counter-clockwise rotation
- High torque 5 pole DC motor with wide operating range 12-24V
- Operating range: 12-24V (nominal 18V)
- No load speed: 18000 RPM ±10%
- No load current: 0.32A
- Load speed: 14350 RPM ±8%
- Current at maximum efficiency: 1.3A
- Rated load (with fan): 65g / cm
- Stall torque: 55g / cm (minimum)
- Motor dimensions (Lx�): 32.5x27.5mm
- Shaft dimensions (Lx�): 12.8x2.3mm
- Mounting holes 2x M2.6 x 0.45 tapped
- Weight: 52g (approx)
Applications
Agriculture, Cooling, Consumer Electronics, Hobby & Education, Mechanical, Portable Devices
Product details
| DC Motor Type |
Brushed |
| Supply Voltage V DC |
12V |
| Rotational Speed Max |
18000rpm |
| Torque Max |
11.6g-cm |
| Power Rating |
420mW |
| Motor Size |
27.5mm |
| External Length |
45.3mm |
| Product Range |
- |
Other details
| Brand |
PRO ELEC |
| Part Number |
PEL00882 |
| Quantity |
Each |
