Description
Product Overview

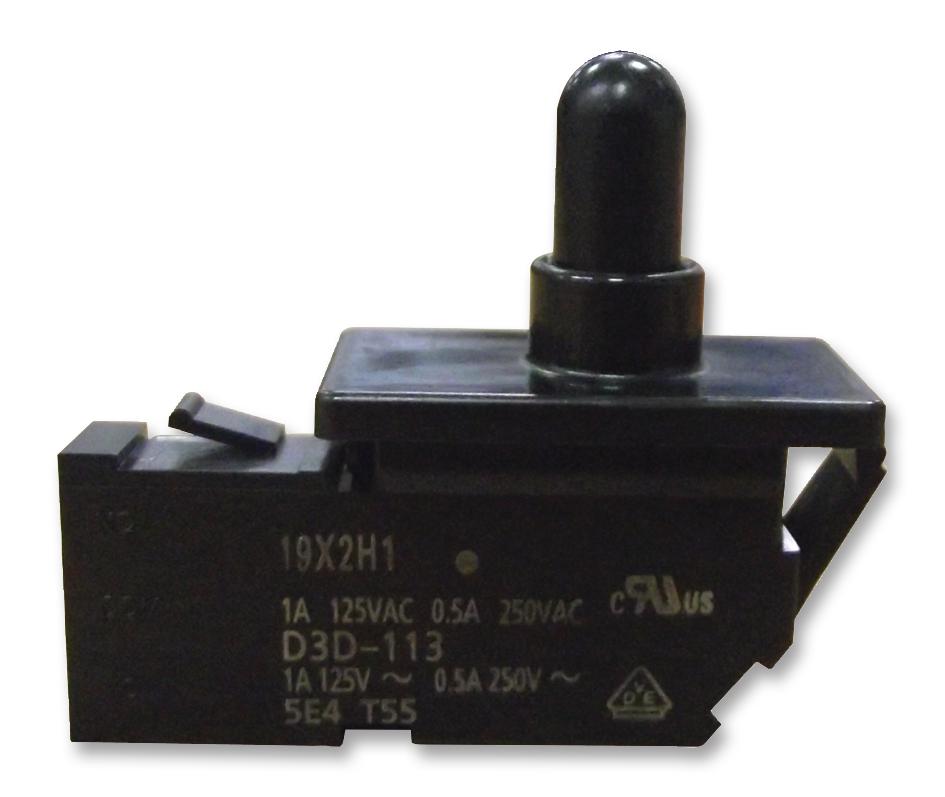

The D3D113 is a SPDT Miniature Door Switch unique mechanism allows switching of micro loads. It features disconnect-able crimp connector for easier wiring and snap-fit attachment for easy installation. The switch provides a long stroke with its unique mechanism and low noise operation.
- Plunger actuator
- 7.5mm to 500mm/s Permissible operating speed
- 120 Operations/minute maximum mechanical operating frequency
- 20 Operations/min maximum electrical operating frequency
- 100M? at 500VDC Minimum insulation resistance
- 100m? Maximum contact resistance
- IP00 Protection rating
- Class I Degree of protection against electric shock
- -30 to 60°C Ambient operating temperature
Applications
Industrial, Safety
Product details
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | D3D113 |
| Quantity | Each |
| Technical Data Sheet EN |  |
