| ₹ 2359.92 includes GST and import duties. | |
| B2B customers can avail ₹ 359.89 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

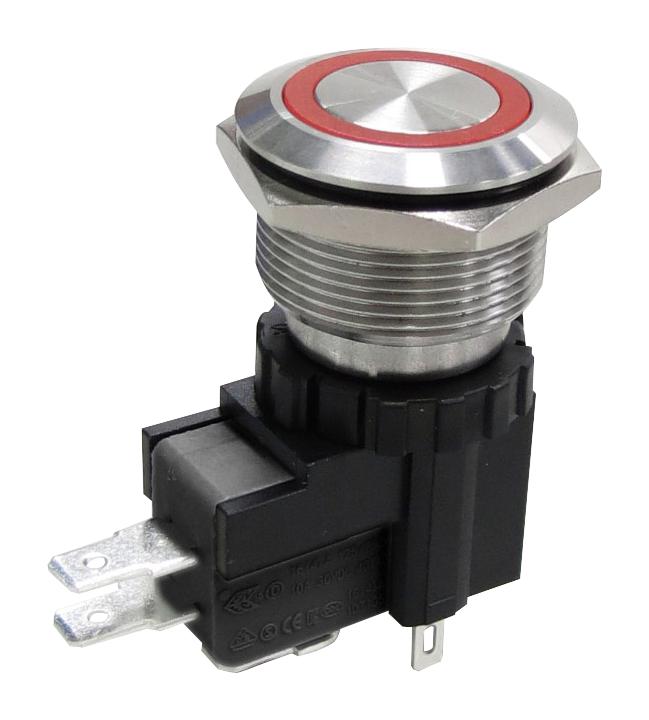

MPW22-A0F0E324-A1ZB is a red LED, 22mm, 16A anti vandal pushbutton switch.
- Silver contact material, 16A, 250/125VAC rating
- 10,000 cycles electrical life (16A, 125 and 250VAC), momentary 1,000,000 mechanical life
- 100Mohm min at 500VDC insulation resistance, 1,500Vrms at sea level dielectric strength
- 50mohm max at 1A 12VDC (initial value) contact resistance
- About 3.2mm travel, 3.5 ±1.5N operation pressure
- IP67, IK08 (stainless steel) ingress protection, 1 to 3Nm torque
- Stainless steel bushing, PBT(UL 94-V0), PC(UL94-V2), PA6T(UL94-V0) base
- PC(UL 94-V2), stainless steel actuator, POM/PA66 inner assembly, steel spring
- Silicone O-ring, brass, silver plated terminal/contact, nickel plated brass hex nut
- Operating temperature range from -25°C to 85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPW22-A0F0E324-A1ZB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2312.72 |
| 3-5 | ₹ 2289.12 |
| 5-10 | ₹ 2241.92 |
| 10+ | ₹ 2194.73 |
Bulk discount will be automatically applied during checkout based on quantity.
