Description
Product Overview

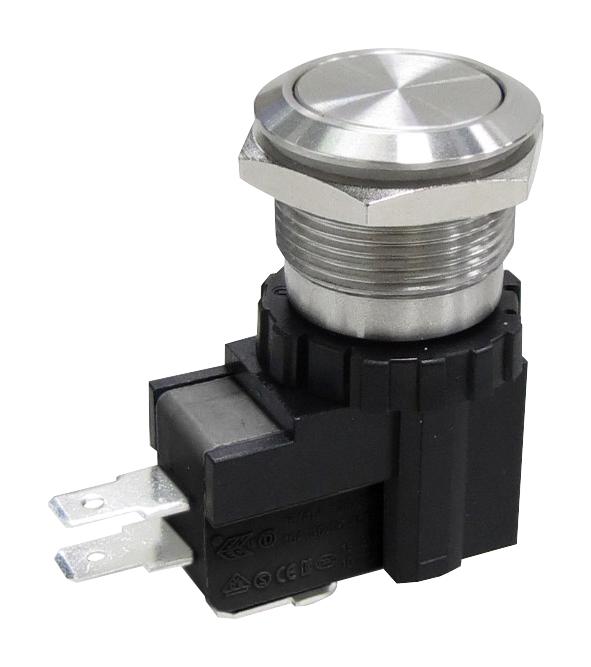

MPW19-A0F1000-A3ZA is a 19mm, 26A, anti vandal pushbutton switch (no led).
- Silver contact material, 26A, 250/125VAC rating
- 10,000 cycles electrical life (26A 125 and 250V AC), self-lock 500,000 mechanical life
- 100Mohm min at 500VDC insulation resistance, 1500Vrms at sea level dielectric strength
- Contact resistance is 50mohm max at 1A/12VDC (initial value)
- About 3.2mm travel, 3.5 ±1.5N operation pressure
- IP67, IK08 ingress protection, 1 to 3Nm torque
- Stainless steel bushing, PBT(UL 94-V0), PC(UL94-V2), PA6T(UL94-V0) base
- PC(UL 94-V2), stainless steel actuator, POM/PA66 inner assembly
- Silicone sealing, silver plated brass terminal/contact, nickel plated brass hex nut
- Operating temperature range from -25°C to 85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPW19-A0F1000-A3ZA |
| Quantity | Each |
| Technical Data Sheet EN |  |
