Description
Product Overview

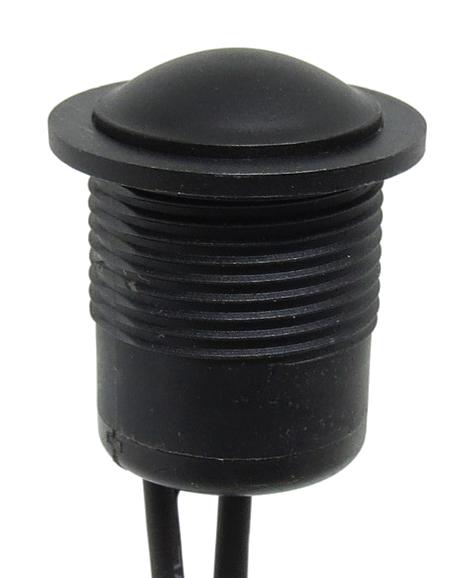

MPMD16-P2102T-L001 is a SPST-NO low profile pushbutton switch with a black colour cap.
- 2A, 24VDC rating, minimum 10,000 cycles electrical life
- 1,000,000 cycles mechanical life, 100Mohm at 500VDC minimum insulation resistance
- 500Vrms at sea level dielectric strength, 100mohm max at 1A/12VDC (initial value) contact resistance
- 1.5mm (.059) ±0.3mm travel, 7N ±2N operation pressure
- IP67 ingress protection, 0.5 to 1Nm maximum torque (applied to nut)
- Nylon 6/6 case/bushing, polyurethane cap, POM actuator
- Stainless steel button, SPCC (nickel plated) nut, silicone (translucent) O-RING
- Operation temperature range from -20°C to +65°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPMD16-P2102T-L001 |
| Quantity | Each |
| Technical Data Sheet EN |  |
