Description
Product Overview

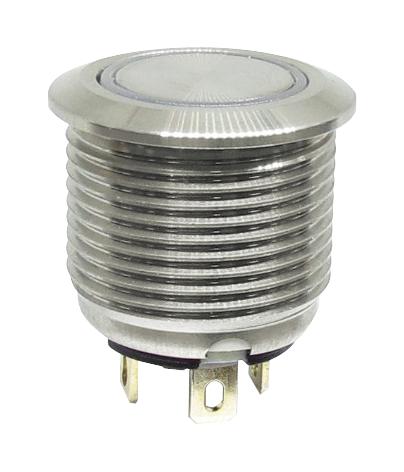

MPC16T-A2FE-0-JR-0V is a green LED anti vandal push button switch.
- 50mA/12VDC rating, 200,000 make-and-break cycles at full load electrical life
- 1,000,000 cycles mechanical life, 100Mohm min insulation resistance
- 250Vrms at sea level dielectric strength, 100mohm max. (Initial Value) contact resistance
- 0.85mm ±0.25mm travel, 450gf ±150gf operation pressure
- IP67 ingress protection, 11.5kgf - cm torque
- Stainless bushing, Nylon 6/6 base, PC actuator, silicone (Translucent) O-ring
- Brass, gold flash over silver plated terminal, stainless, silver plated contact
- Operating temperature range from -20°C to +70°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPC16T-A2FE-0-JR-0V |
| Quantity | Each |
| Technical Data Sheet EN |  |
