Description
Product Overview

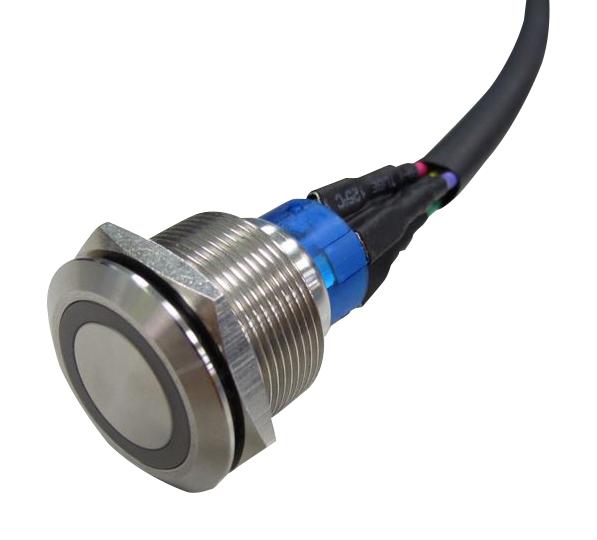

MPB25-A0F20E-73-T1Q is a double pole, anti vandal push button switch.
- Momentary switch operation, 3V voltage, blue LED
- Ith 5A/250VAC resistive load 3A/250VAC rating
- 50mohm max at 1A/12V DC (initial value) contact resistance
- 1,000Mohm min at 500VDC insulation resistance
- 50,000 make-and-break cycles at full load electrical life
- Torque range from 5Nm to 14Nm, about 3.2mm travel
- IP67, IK08 (stainless) ingress protection, 3.5±1N operation pressure
- Stainless steel / brass / aluminium alloy bushing, steel spring
- Brass/silver/gold plated terminal, brass/coin silver/silver/gold plated contact
- Operation temperature range from -20°C to 55°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPB25-A0F20E-73-T1Q |
| Quantity | Each |
| Technical Data Sheet EN |  |
