| ₹ 4750.34 includes GST and import duties. | |
| B2B customers can avail ₹ 724.43 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

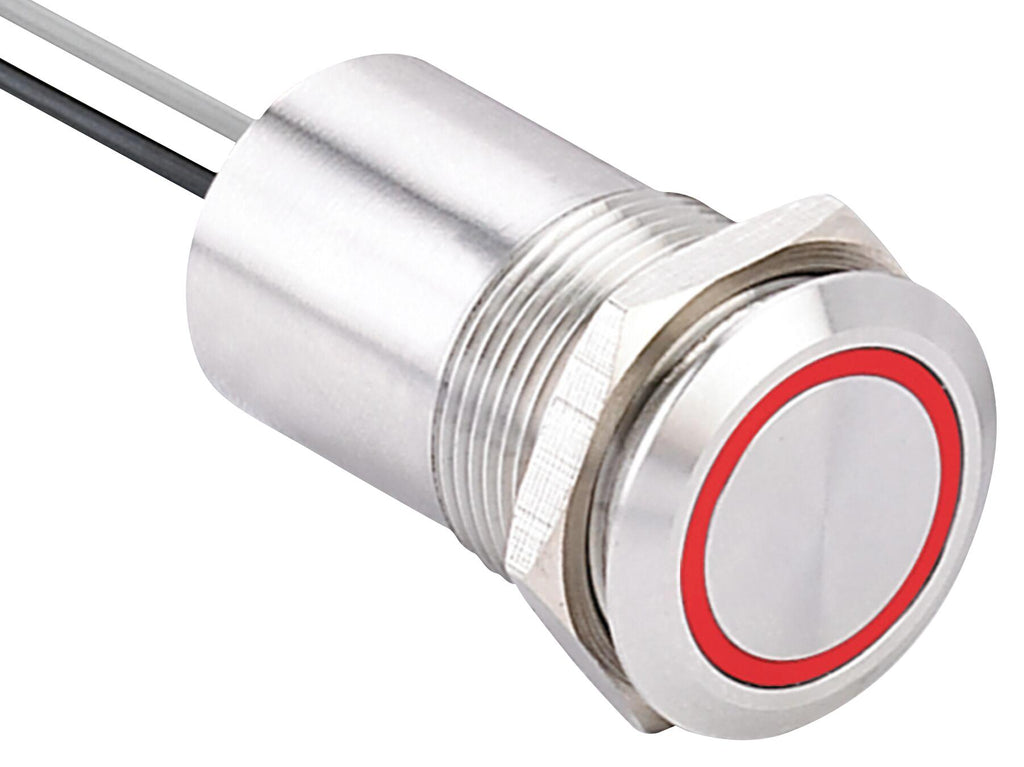

MP015392 is a latching, capacitive touch switch. The switch illuminates red and then changes to green when touched. The switch is used in various applications including food processing, medical treatment, coffee machines, water dispensers and home appliances. The switch can still be operated when wearing medical rubber gloves.
- Dual colour illumination red and green
- Ring illuminate at both 12 and 24V, switch rating 500mA / 24VDC
- Finger touch trigger (can be triggered by flowing water)
- Ultra long life (50 million cycles), IP67, IK06 rated
- Stainless steel housing, fitted with 300mm leads
- Standard thin ring actuator
- 19mm panel cutout
- ?20Mohm contact resistance, ?10Mohm at 600VDC insulation resistance
- Operating temperature range from -25°C to +55°C
- UL1430 22AWG wire gauge
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP015392 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 4655.33 |
| 3-5 | ₹ 4607.83 |
| 5-10 | ₹ 4512.82 |
| 10+ | ₹ 4417.82 |
Bulk discount will be automatically applied during checkout based on quantity.
