MULTICOMP PRO MP008397

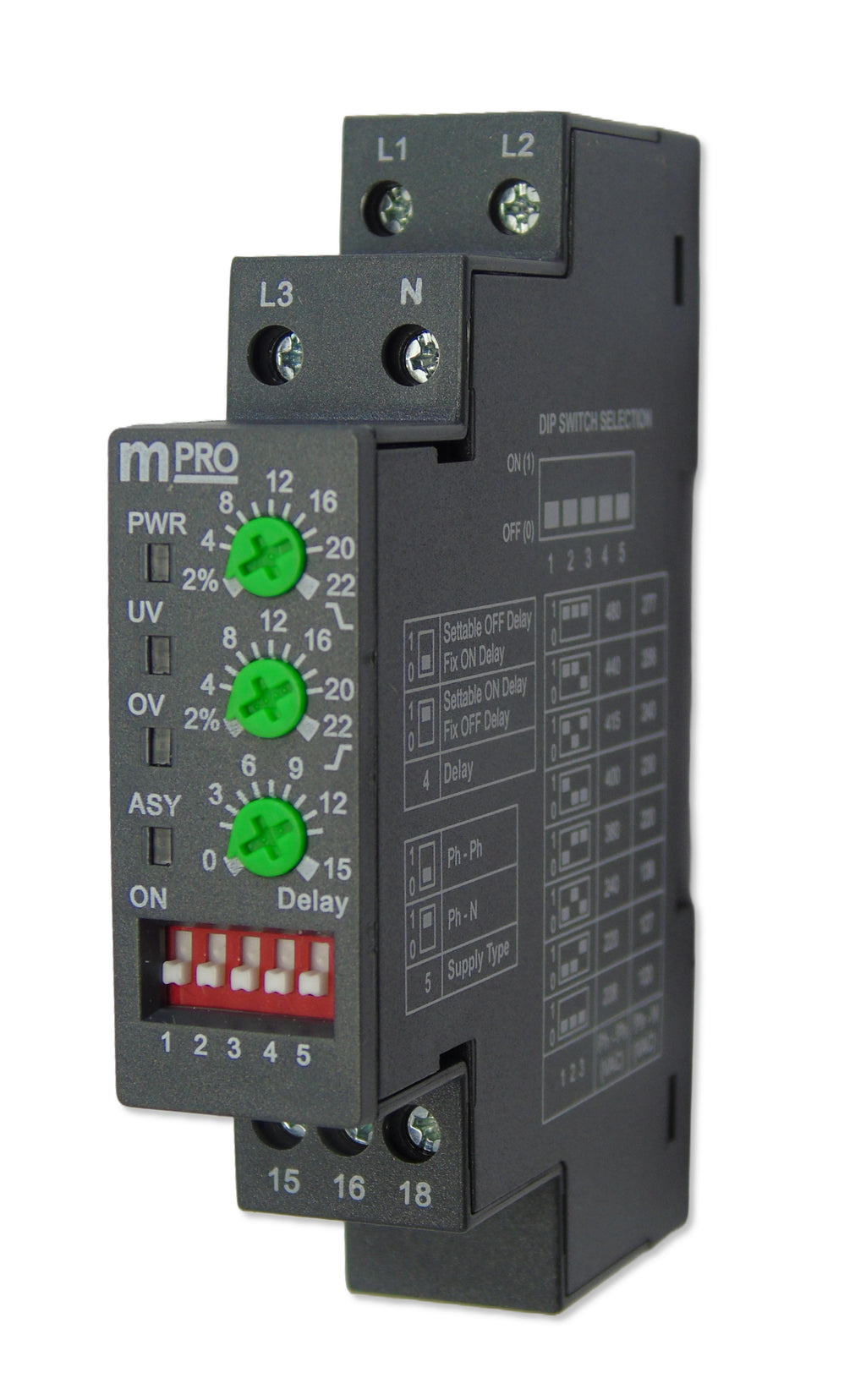

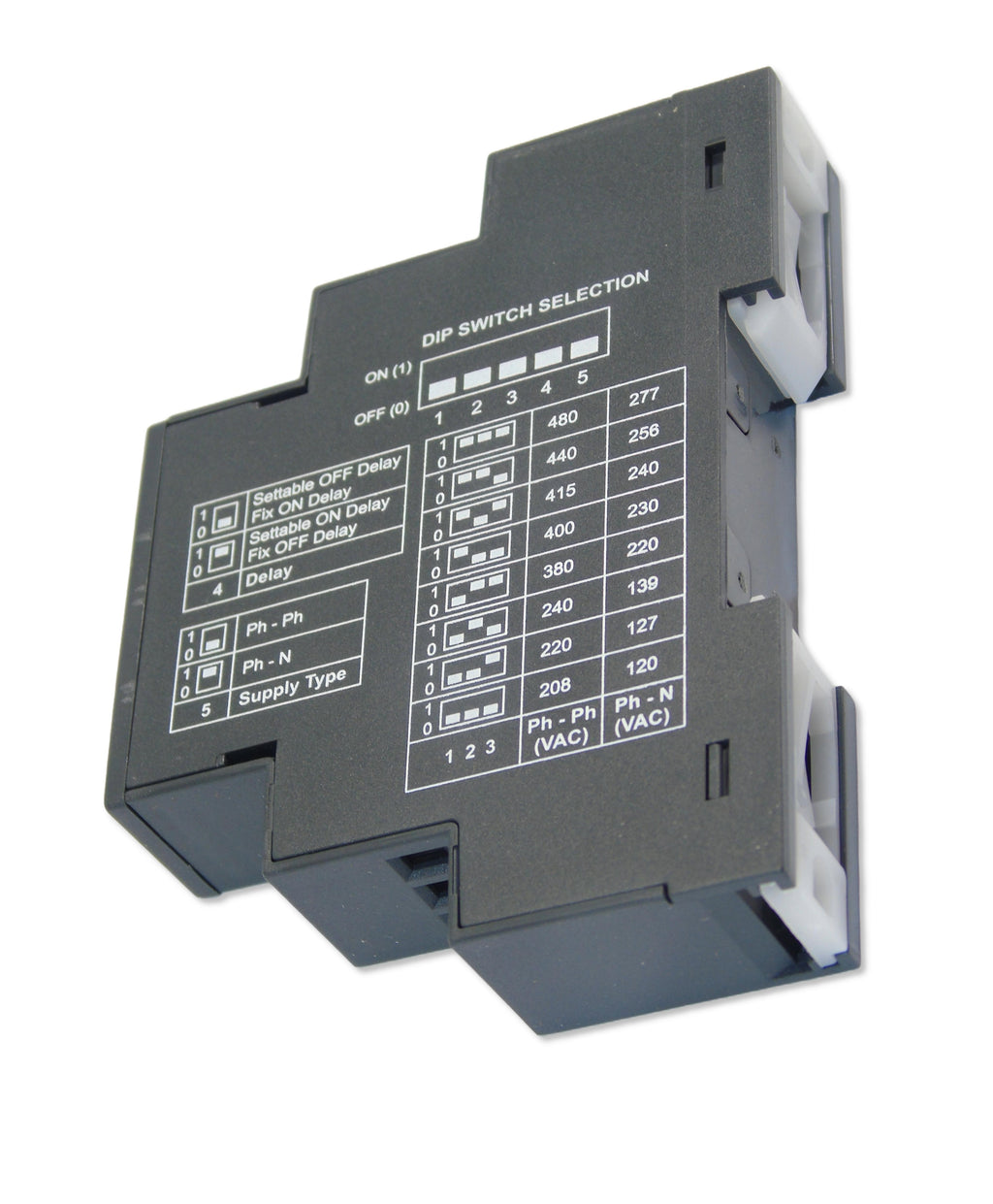

MP008397 product is a phase failure relay which can be used for both a 3 or 4 wire application, switchable by a DIP switch. The supply voltage can also be selected between 208-480V AC by 3 wire and 120-277V AC by 4 wire. This versatile product comes with phase loss, reversal and asymmetry as well as adjustable under and over voltage set points. The on/off time delays are also adjustable with range of 0.5 to 15s using selectable DIP switch, making it a benchmark in its segment. All of this comes in a compact 17.5mm IP40 protected housing making the product an essential tool for your needs.

• Multi voltage: three phase 3 Wire at 208-480V AC and three phase 4 Wire at 120-277V AC
• Selectable under voltage / over voltage, asymmetry and phase sequence
• Phase loss, phase reverse, phase asymmetry protection
• Adjustable ON/OFF Time Delay in sec/min
• LED indication for all failure conditions

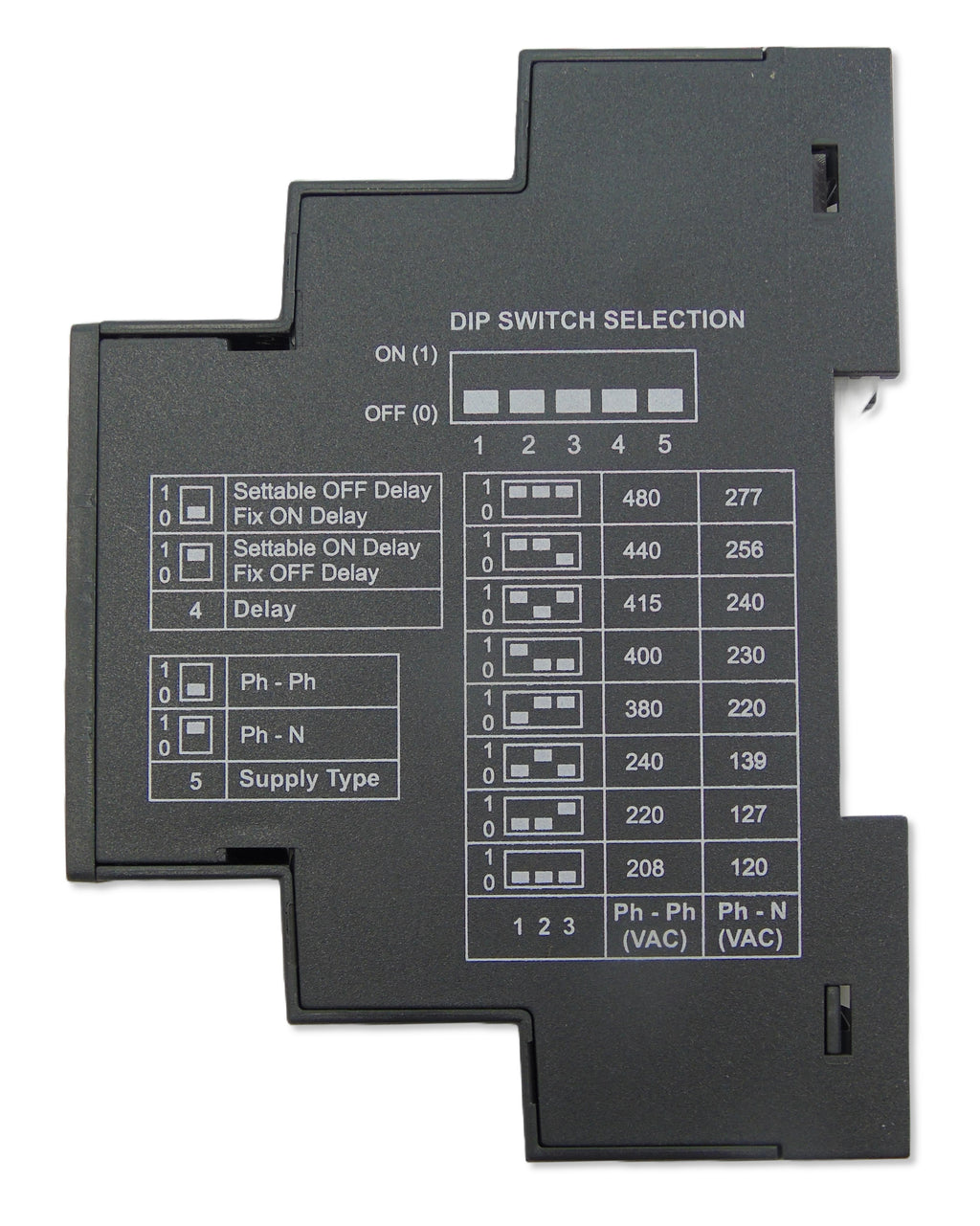

• Configurable supply range from 208 to 480VAC (3P,3W) and 120 to 277VAC (3P,4W)

Applications

Industrial, Automation & Process Control, Motor Drive & Control, Safety

Contents

x1 Three phase multi voltage protector, 17.5 x 90 x 66.5mm.

IP20 protection for terminals and IP40 protection for enclosure.
