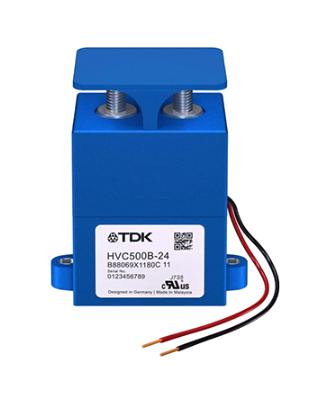

EPCOS B88269X2320C011 Contactor, Flange, 1 kV

B88269X2320C011 is a HVC series high-voltage, gas-filled contactor for high-voltage DC switching. It has been especially designed to meet the requirements of high-voltage DC switching applications. The optimized hermetically sealed design exhibits excellent reliability performance against harsh environments. HVC series can be used in a wide range of applications. Applications include battery charge/ discharge systems, renewable energy storage systems, DC high-voltage/ high-current applications, DC fast charging stations. Approvals are UL 60947-4-1 (E491412).

• Energy saving with dual coil, gas-filled and hermetically sealed, no EMI, low operating power
• Maximum operating voltage is 1000VDC, 1A contact arrangement
• Cu alloy inner contact material, 2.8mm internal contact gap (full disconnection)
• <gt/> 200mm² recommended connection cable cross section
• Coil wires - length is 300mm, max. auxiliary contact voltage is 36VDC
• Max. auxiliary contact current is 250mADC, max. auxiliary contact switching power is 3W
• Max. auxiliary contact wire cross section - 26AWG
• Mechanical endurance is 1000000 switchings
• Contact resistance is 0.2mohm typ (<gt/>100ADC)
• Operation temperature range from -40 to +85°C
