Description
Product Overview

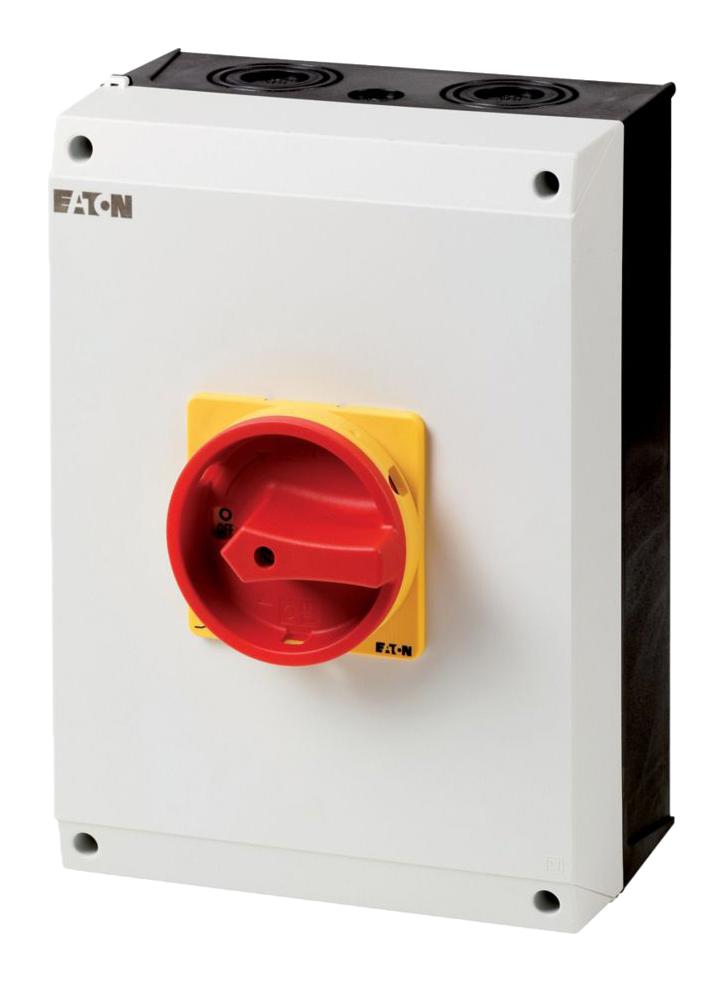

P3-100/I5-SI is a 100A, 3 pole, P3 safety switch. It has emergency switching off function, with red rotary handle and yellow locking ring. It is certified by VDE 0660, IEC/EN 60204, IEC/EN 60947-3, IEC/EN 60947.
- Lockable in position 0 with cover interlock, NEMA 12 degree of protection
- Degree of protection (front side) is IP65, surface mounting
- Ambient operating temperature range from -25°C to 40°C
- Rated operational current (Ie) at AC-3, 220V, 230V, 240V is 71A
- Rated operational power at AC-3, 380/400V, 50Hz is 37KW
- Rated operational voltage (Ue) at AC - max is 690V
- Rated conditional short-circuit current (Iq) is 4KA (load side), 80KA (supply side)
- Number of contacts in series at DC-23A, 48V are 2
- Red door coupling rotary drive actuator
- Product dimension is 169mm length/depth x 280mm height x 200mm width
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | P3-100/I5-SI |
| Quantity | Each |
| Technical Data Sheet EN |  |
