| ₹ 7569.33 includes GST and import duties. | |
| B2B customers can avail ₹ 1154.32 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

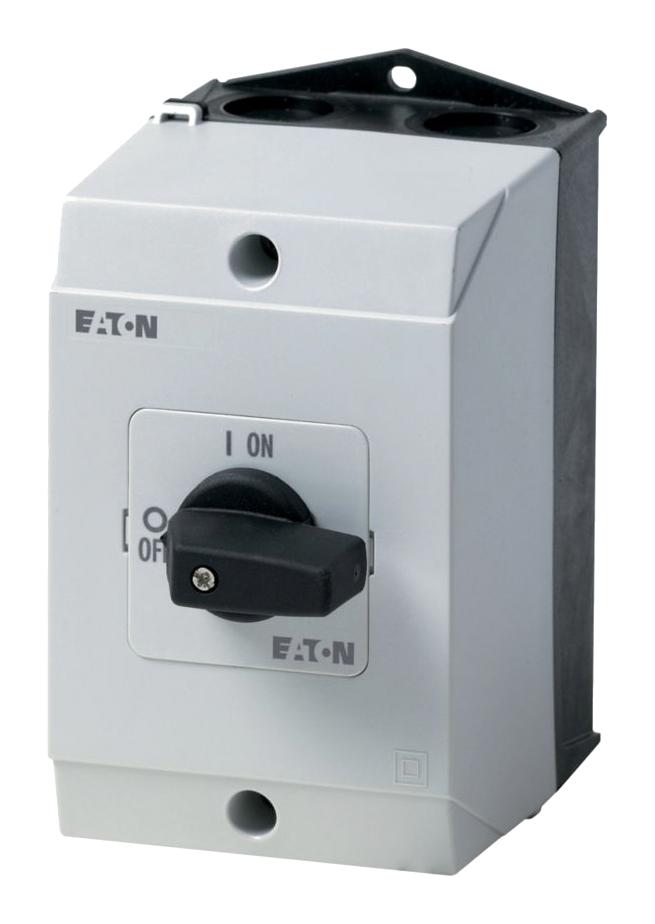

P1-25/I2 is an Eaton Moeller® series P1 on-off switch. It includes short-circuit protection. Safety certification are VDE 0660, IEC/EN 60947-3, UL, IEC/EN 60204, CSA, IEC/EN 60947.
- Fitted with black thumb grip and front plate, 3 number of poles
- 3 number of poles, NEMA 12 degree of protection, surface mounting method
- 300,000 operations lifespan, mechanical
- 1200 operations/h operating frequency, 3 pollution degree
- 6000VAC rated impulse withstand voltage (Uimp)
- 440VAC, between the contacts, according to EN 61140 safe isolation
- 1.6Nm, screw terminals tightening torque
- 107mm product length/depth, 180mm product height, 100mm product width
- Ambient operating temperature range from -25°C to 40°C
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | P1-25/I2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7417.94 |
| 3-5 | ₹ 7342.25 |
| 5-10 | ₹ 7190.86 |
| 10+ | ₹ 7039.48 |
Bulk discount will be automatically applied during checkout based on quantity.
