Description
Product Overview

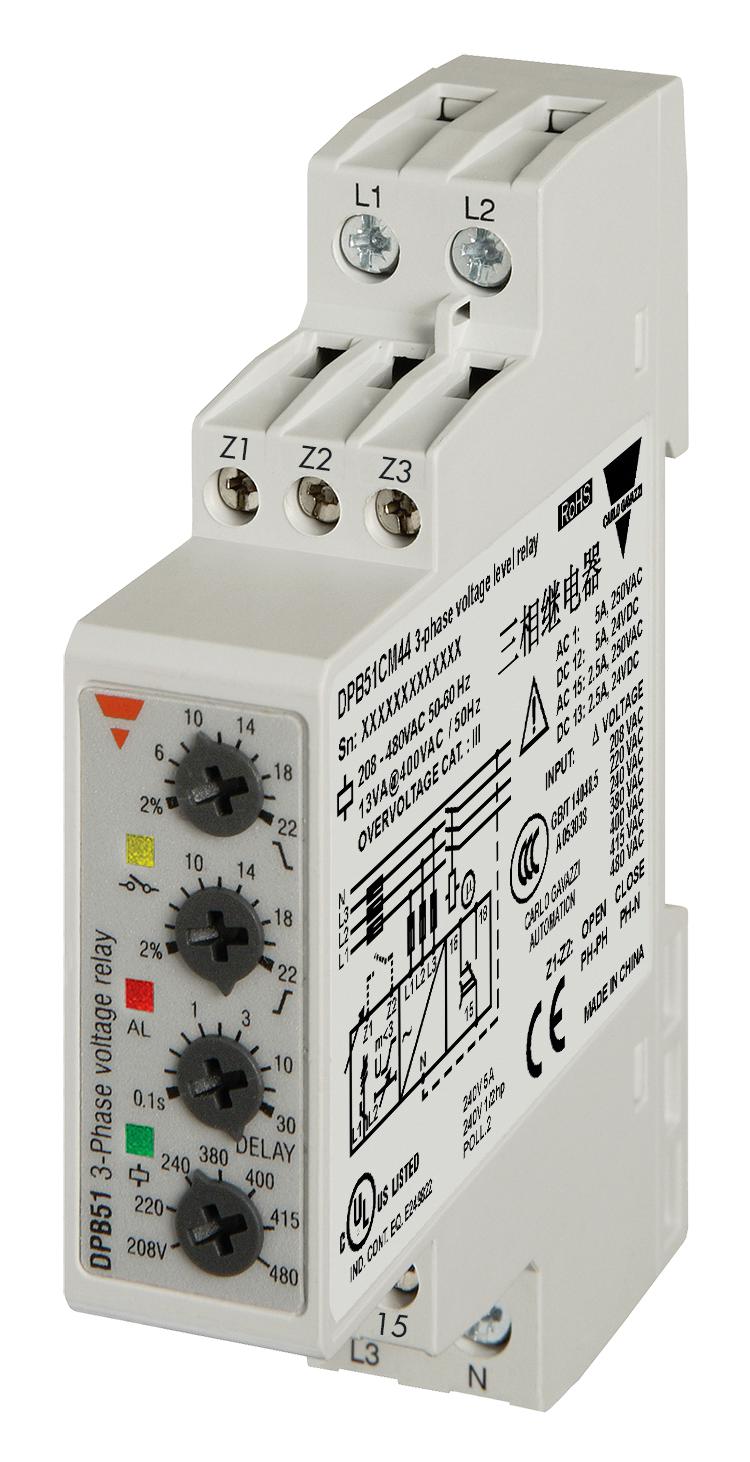

DPB51CM44 is a true RMS 3-phase voltage monitoring relay. It operates on 3P and 3P+N systems, monitoring phase loss and phase sequence, overvoltage and undervoltage. The power supply is provided by the monitored mains. Delay on alarm, upto 30s, for over/under voltage alarms. It has output and status LED indications for quick troubleshooting and ultra-high harmonic immunity for very noisy environments.
- Adjustable voltage levels and time delay to allow a correct response to real alarm conditions
- High compactness 17.5mm DIN rail housing, supply voltage range from 208 to 480VAC
- Detection of the correct phase sequence and phase loss, changeover relay output
- Front dial adjustable overvoltage and undervoltage setpoints, time delay
- Frequency range from 50 to 60Hz, dimensions (W x H x D) is 17.5 x 90 x 67.2mm
- IP20 degree of protection, (UL508) (GB/T14048.5) approval
- Insulation coordination: EN 60664-1, immunity: EN61000-6-2, emission: EN61000-6-3 standards
- Operating temperature range from -20°C to 60°C
Product details
Other details
| Brand | CARLO GAVAZZI |
| Part Number | DPB51CM44 |
| Quantity | Each |
| Technical Data Sheet EN |  |
