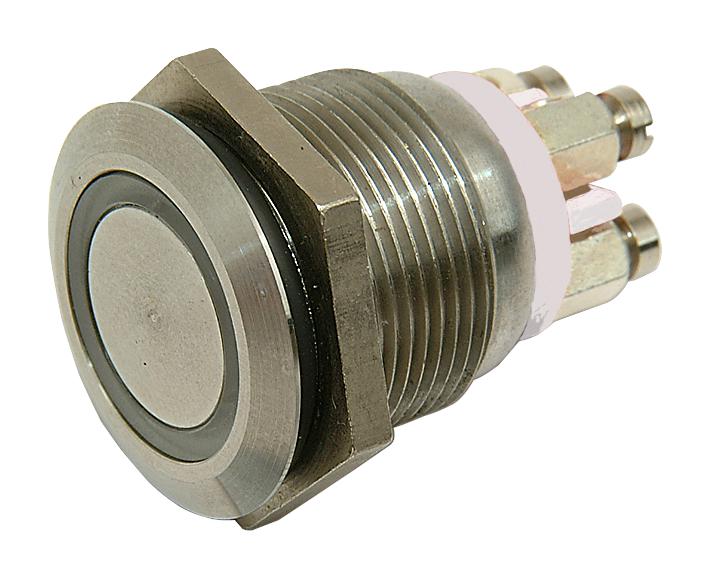

- Stainless steel illuminated vandal resistant LED switch
- Ring illumination, 22mm diameter
- Single Contact, push to make, tactile (momentary action)
- Bright daylight LEDs, independent LED terminals
- Front panel seal to IP66, integral supply resistors, TVS protection
- TE (screw terminals), 50mA, 24VDC maximum switch rating
- White colour, 900mcd luminous intensity, 3.6V forward voltage, 20mA forward current
- 24VDC Illumination voltage, <100mohm contact resistance
- Copper alloy terminals, UL94V-0 rated Polyamide (Nylon) materials switch assembly
- Operating temperature range from -30°C to +70°C
Product details
| Product Range:
MPI002 Series
|
| Panel Cutout Diameter:
19.2mm
|
| Contact Configuration:
SPST
|
| Switch Operation:
Push to Make
|
| Pushbutton Actuator Style:
Round
|
| Actuator / Cap Colour:
Natural
|
| Contact Current AC Max:
-
|
| Contact Voltage VAC:
-
|
| Contact Current DC Max:
50mA
|
| Contact Voltage VDC:
24V
|
| IP Rating:
IP66
|
| Switch Mounting:
Panel Mount
|
| Switch Terminals:
Screw
|
| Illumination Colour:
White
|
| Panel Cutout (H x W):
-
|
Other details
| Brand |
BULGIN LIMITED |
| Part Number |
MPI002/TE/WH/24 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
