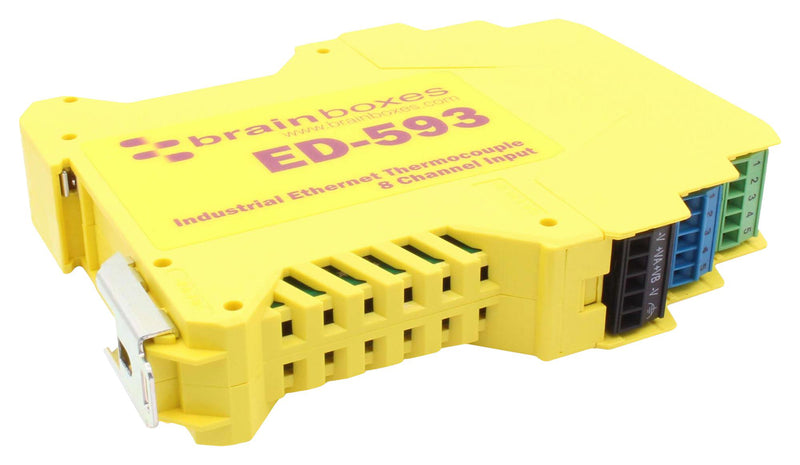

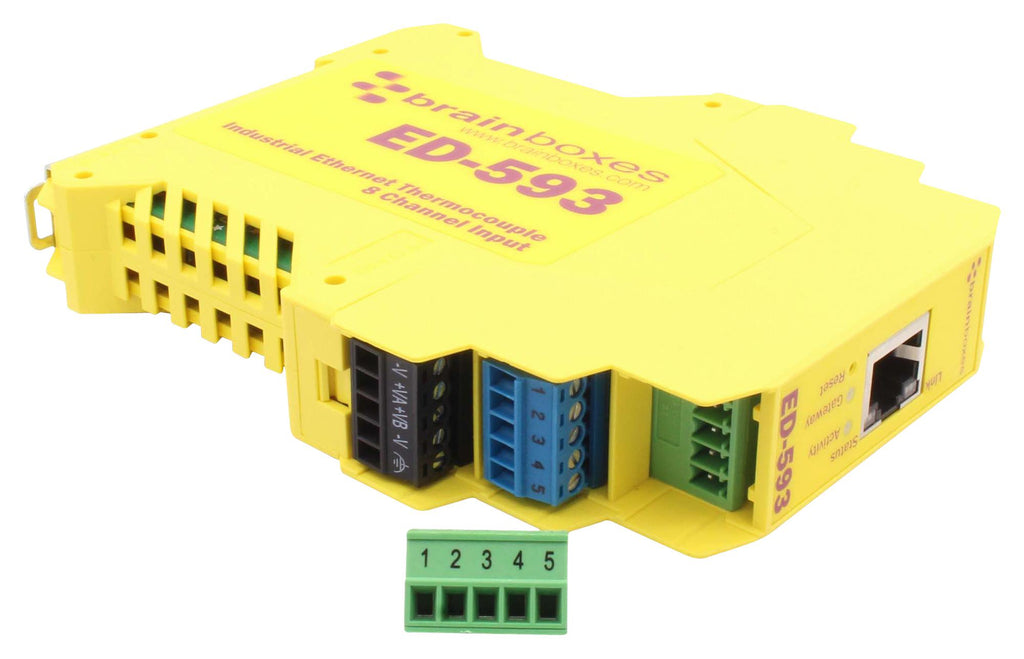

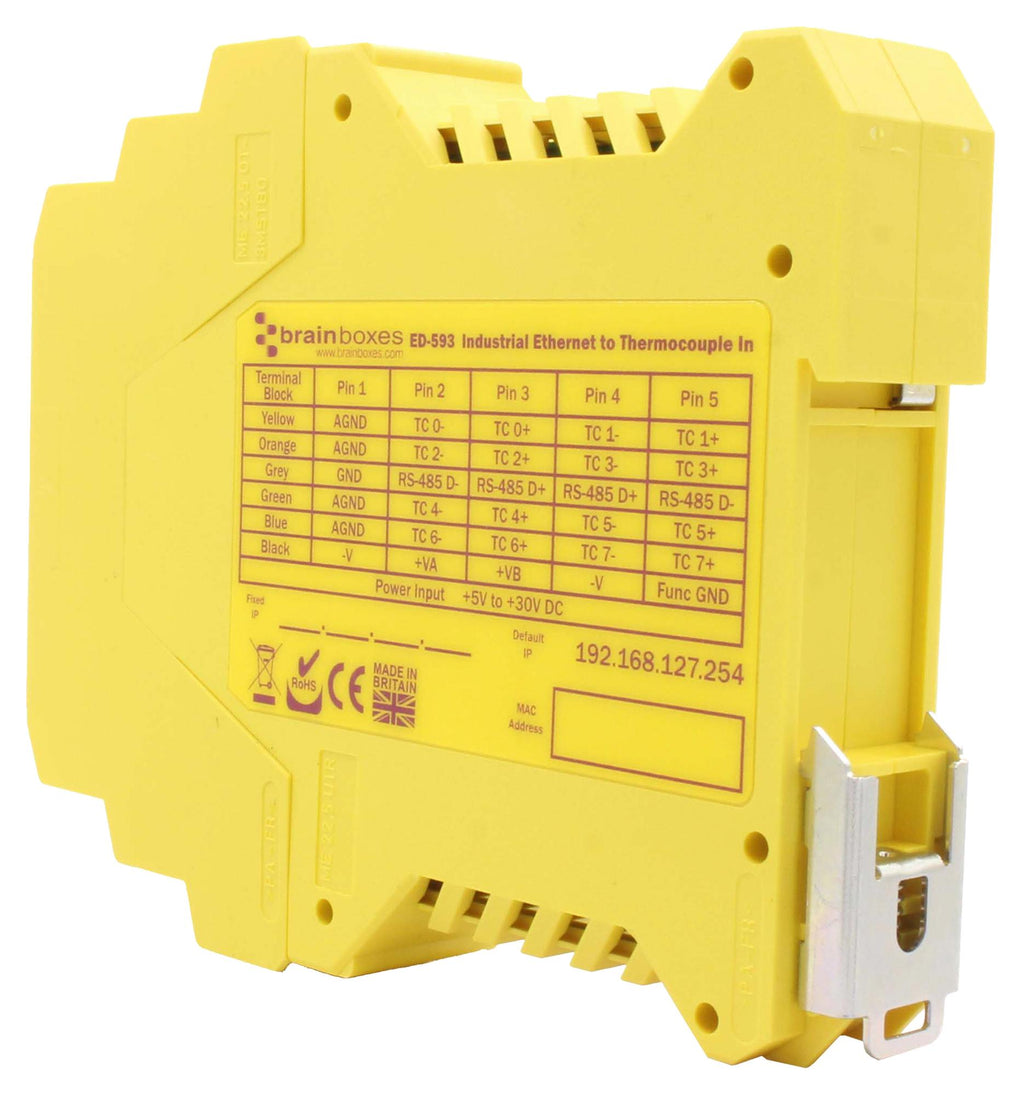

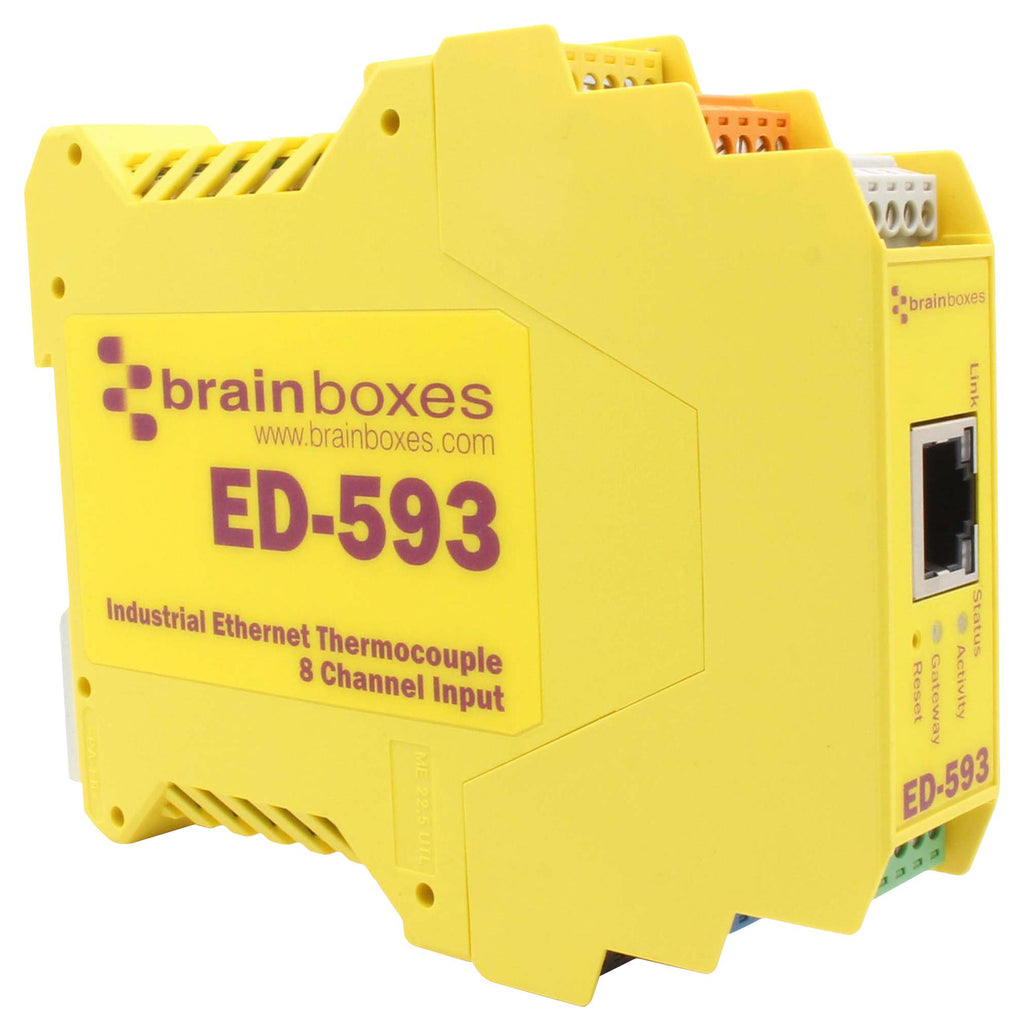

ED-593 is an Ethernet to 8 channel thermocouple input. The device can be controlled over TCP/IP using simple ASCII commands. Additionally, Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device can be configured from any modern web browser, and can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.
- Factory floor process control and automation, 8 channel differential thermocouple inputs
- Product operating temperature range from -40°C to +80°C
- 1 Ethernet port, covers most standard thermocouple types
- Software APIs for VB, C# and more
- Integral DIN mount and slim design takes up minimal cabinet space
- Serial expansion port suitable for ADAM modules, IP20 non-conducting polyamide case with vents
- Wide range input power: +5VDC to +30VDC
- 1500V magnetic isolation between ports and network protection
- Dimension is 160 x 135 x 49mm

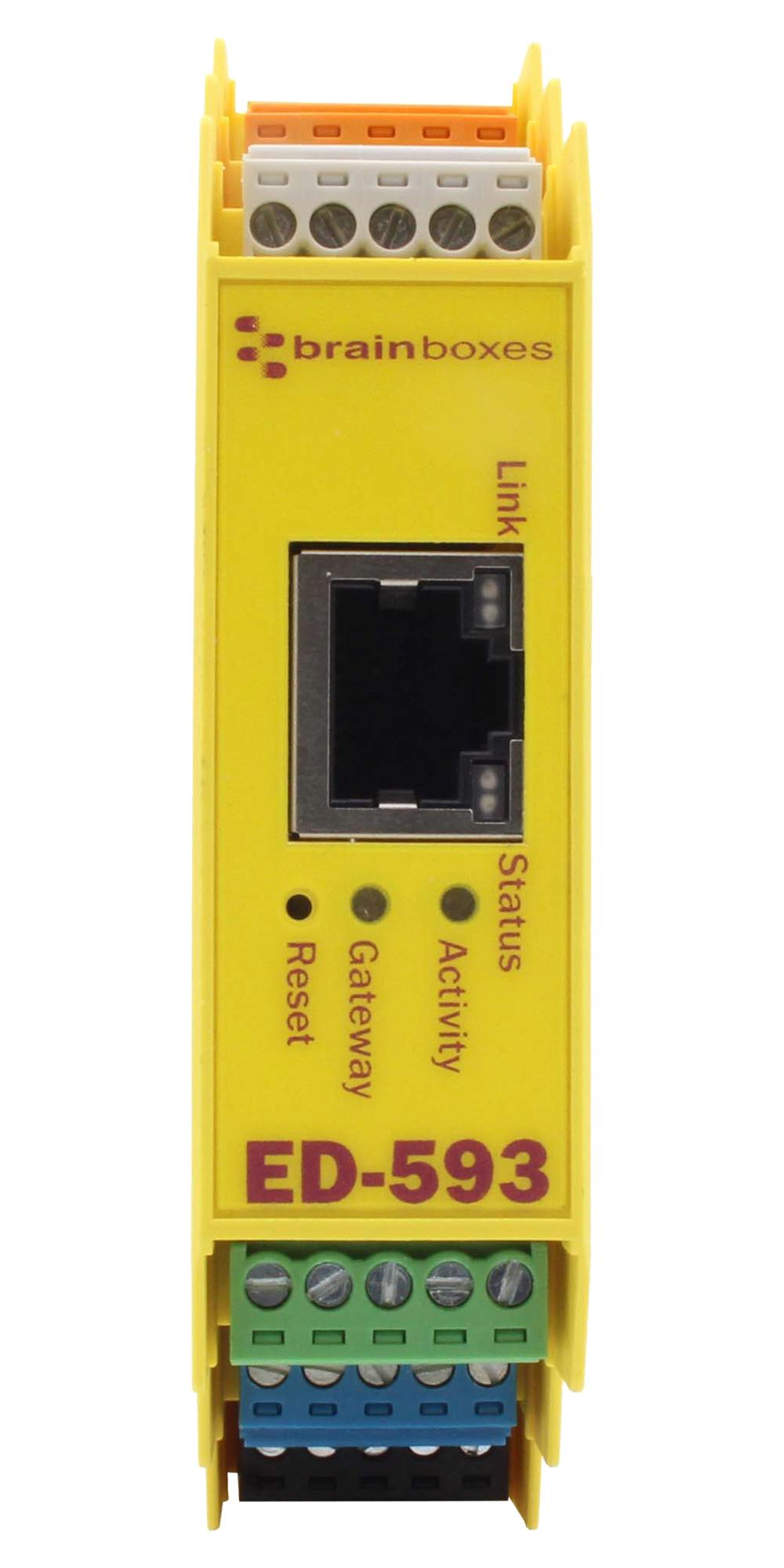

- RJ45 jack 10/100Mbit autosensing, cross over autosensing (MDIX) network port
Product details
| Temperature Accuracy ± |
0.16% |
| Thermocouple Type |
B, E, J, K, N, R, S, T |
| Product Range |
- |
Other details
| Brand |
BRAINBOXES |
| Part Number |
ED-593 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
