Description
Product Overview

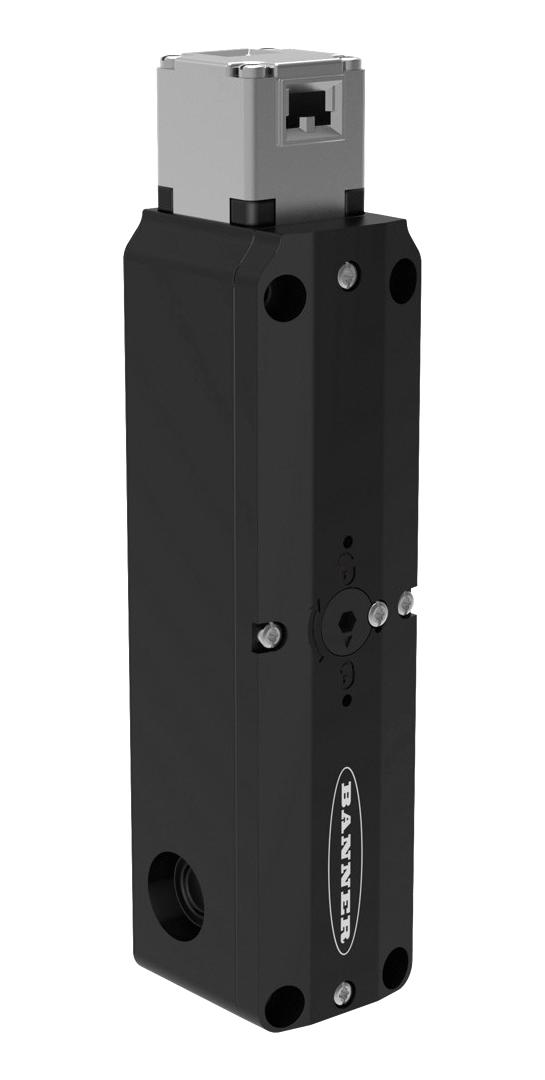

SI-GL42DS20-20 is a SI-GL42 series safety interlock switch for interlocking and position monitoring.
- Positive opening safety contacts (per IEC 60947-5-1), insulated device (IEC 60947-5-1)
- Contact monitors both the presence of the actuator and if it is locked into the interlock
- Integrated manual release mechanism (front and back), 6.7VA rated operating current
- Actuator head rotatable in 90° increments providing five actuator positions
- Many different actuator and monitoring contact configurations to satisfy any application
- Lightweight yet robust design
- IP67 environmental rating making the unit suitable for demanding industrial environments
- 24VAC/DC solenoid voltage, spring locking method, wiring chamber
- 2 NC actuator contacts, 2 NC solenoid monitor contacts, IP67 rating
- Device size is 192 x 42 x 44m, operating temperature range from -25 to 55°C
Product details
Other details
| Brand | BANNER ENGINEERING |
| Part Number | SI-GL42DS20-20 |
| Quantity | Each |
| Technical Data Sheet EN |  |
