| ₹ 6804.28 includes GST and import duties. | |
| B2B customers can avail ₹ 1037.65 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

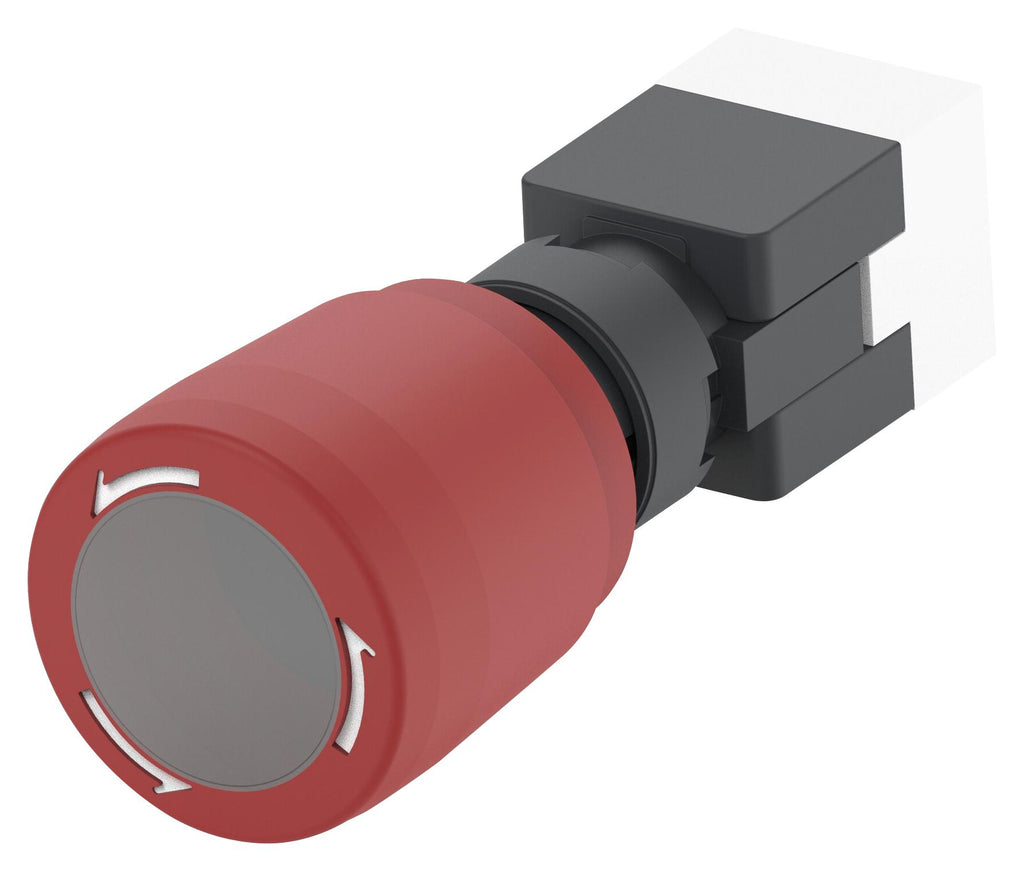

PBES16L3DRE is a PBES16 series pushbutton emergency stop switch. It meets IEC 60947-5-1 and IEC 60947-5-5 standards. The PBES16 series comes equipped with a 20N actuation force for ruggedized applications. It helps avoiding accidental actuations and is IP65 rated to resist harsh environments.
- 16mm mounting hole, simple easy mounting
- UL and TUV agency approval, high actuation force
- 1NC + 1NC function, LED 12 to 24VAC/DC
- Mechanical life is 100,000 operations, electrical life is 50,000 operations
- IP65 degree of protection, 1.1Nm mounting torque
- 100Mohm at (500VDC, 100mA, 1 minute insulation resistance)
- 300V rated insulation voltage, 5A conventional enclosed thermal current
- 50mohm initial contact resistance
- Operating temperature range from -25°C to +55°C
- Illuminated switch style
Product details
Other details
| Brand | ALCOSWITCH - TE CONNECTIVITY |
| Part Number | PBES16L3DRE |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 6668.19 |
| 3-5 | ₹ 6600.15 |
| 5-10 | ₹ 6464.07 |
| 10+ | ₹ 6327.98 |
Bulk discount will be automatically applied during checkout based on quantity.
