Description

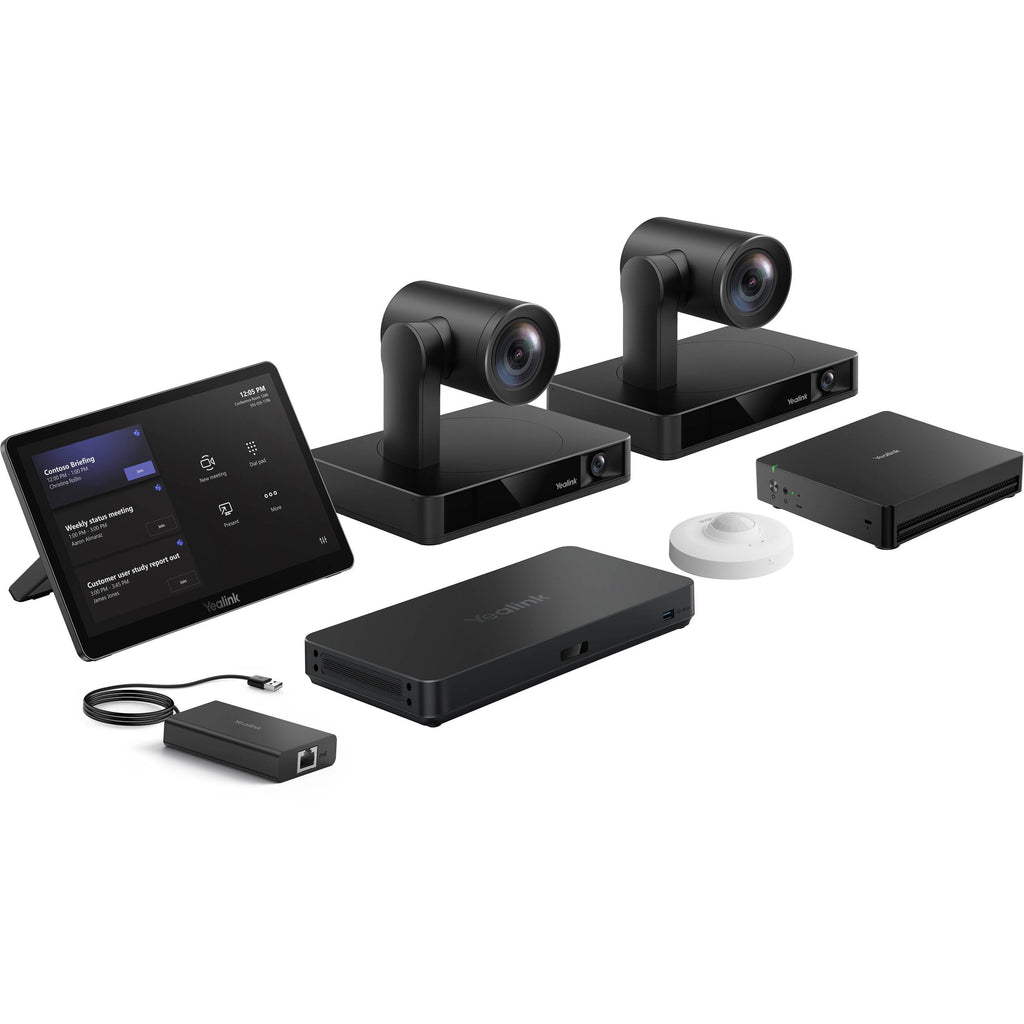

Set up your large boardroom with the MVC S90 Native Teams Rooms System from Yealink. This complete system includes two UVC86 4K tracking PTZ cameras, a VCR20 remote control, a Mini PC preconfigured for Teams Rooms, MTouch Plus, RoomSensor, AVHub processor, BYOD extender, and all the required power and connector cables.
The 8MP UVC86 4K Dual-Eye Intelligent Tracking PTZ Camera from Yealink combines a PTZ camera with a 90? diagonal FOV and a panoramic lens with a 120? FOV to clearly display each participant in a meeting. Intelligent tracking functions include auto framing, speaker tracking, and presenter tracking. The UVC86 camera's 12x optical and 1.7x digital zoom combine to create a maximum 20x zoom for getting closeup views.
The VCR20 Remote Control allows you to control meeting and camera functions of the Yealink MVC/ZVC series conferencing systems, including the MeetingEye 400 and 600 models. The remote communicates to compatible equipment via an IR signal and features intuitive onboard controls that toggle a multitude of functions. Control conferences and cameras, initiate or join a meeting, record video or audio, present content, take screenshots, and even modify your VCS endpoint settings with the VCR20.
The Yealink AVHub Meeting Audio & Video Processor is designed for large and extra-large conference rooms/conference fields. AVHub supports multi-camera, multi-microphone, and multi-speaker use. Cameras, microphones, and speakers can be directly connected to the AVHub over PoE connectivity, reducing wiring and managing video and audio equipment uniformly. Users can adjust the camera layout with the Yealink plug-in before or during MTR meetings.
Quickly add your own device to your MVC conferencing system with this BYOD Extender from Yealink. This compact extender plugs into your laptop or computer to add it into your Microsoft Teams Rooms meeting and conferencing setup when using a Yealink MVC conferencing system.
It features an integrated USB-A cable to plug into your laptop, and an Ethernet port on the other end allows you to connect to your LAN to the conferencing system using the included Ethernet cable. It is easy to set up and provides plug-and-play operation from up to 328' from your main system.
Items Included
- 2 x Yealink UVC86 4K Dual-Eye Intelligent Tracking PTZ Camera
- USB Cable (23')
- Ethernet Cable (24.6)
- AC Power Adapter
- VCR20 Remote Control
- 2 x AAA Battery
- Velcro Patch
- 5 x Cable Tie
- Mounting Bracket & Accessories
- Mounting Screw Set
- Limited 2-Year Manufacturer Warranty
- Yealink VCR20 Remote Control for MVC/ZVC Series Conferencing Systems
- Limited 2-Year Manufacturer Warranty
- Yealink Native Teams Rooms System Base Kit
- Yealink MCore Pro Mini-PC
- Yealink 11.6" MTouch Plus Extension Console for MVC Series
- RoomSensor
- Teams Rooms (Preinstalled)
- Yealink AVHub Meeting Audio & Video Processor
- Yealink BYOD Extender for MVC Kits
- Ethernet Cable (24.6')
- Limited 3-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Yealink UVC86 4K Dual-Eye Intelligent Tracking PTZ Camera
| Image Sensor |
Size-Unspecified CMOS
|
| Sensor Resolution |
Effective: 8 Megapixel
|
| Max Optical Zoom |
12x
|
| Max Digital Zoom |
1.7x ( in 1080p)
|
| Video Output |
HDMI / RJ45 / USB
3840 x 2160 at 30.00 fps |
| Wireless |
IR
|
| PoE Support |
PoE 802.3af
|
| Image Sensor |
Size-Unspecified CMOS
|
| Sensor Resolution |
Effective: 8 Megapixel
|
| Focus Control |
Autofocus
|
| Precise Scan Rate Control |
No
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| Max Optical Zoom |
12x
|
| Max Digital Zoom |
1.7x ( in 1080p)
|
| Field of View |
Diagonal: 90?
Horizontal: 81? Vertical: 50? |
| Video Output |
HDMI / RJ45 / USB
3840 x 2160 at 30.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45) Output
|
| Presets |
9
|
| Pan/Tilt |
Pan: 200? (-100 to 100?)
Tilt: 130? (-90 to 40?) |
| Tally Light |
Yes
|
| Wireless |
IR
|
| Video I/O |
1x HDMI Output
1x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x RJ45 Output (Shared with Video Output)
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x Barrel (48VDC at 0.7 A)
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 10 to 90% Humidity
|
| Impact Resistance |
No
|
| Mounting |
1x 1/4"-20 Female
|
| OS Compatibility |
Windows 7 or Later / macOS 10.11 or Later
|
| Security Lock Support |
Kensington Lock Slot
|
| Dimensions |
8.3 x 6.2 x 6.1" / 210 x 157.6 x 155.6 mm
|
| Weight |
7.21 lb / 3.27 kg
|
| Package Weight |
9.1 lb
|
| Box Dimensions (LxWxH) |
15.1 x 10.8 x 9"
|
