Description

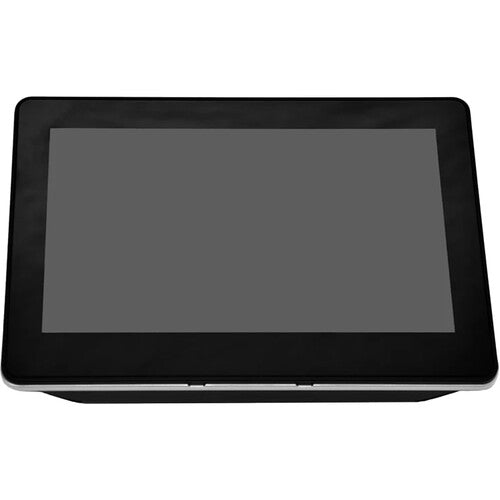

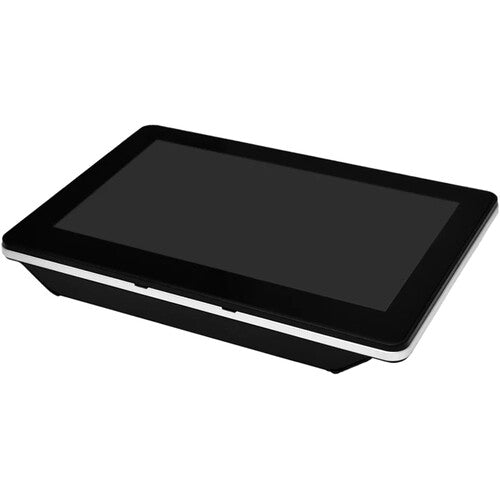

Mimo Monitors UM-760C Overview
The Mimo Monitors UM-760CH-SMK 7" WSVGA Commercial Touchscreen Monitor is a 250 nits bright LCD display with capacitive touch technology designed for retail, hospitality, information systems, control applications, and more. It features DisplayLink technology, which utilizes a single USB connection to supply power and video from a connected computer. In addition to the USB DisplayLink input, the UM-760CH-SMK can also be connected via HDMI for video where USB video is not supported or inconvenient.
USB Extender
For installations where the display needs to be distanced from the connected computer, check out the Mimo USB-102-NA USB port extender (sold separately). This convenient and powerful little device utilizes a two port USB 2.0 high-speed solution that links the remote hub to the source site over Cat 5e extension cabling (otherwise known as Power over Twisted Pair). This eliminates the need to place the display installation near an AC outlet and increases ease of deployment for the Mimo Vue HD in industrial, commercial, medical, education, hospitality, or consumer applications.
Additional Features

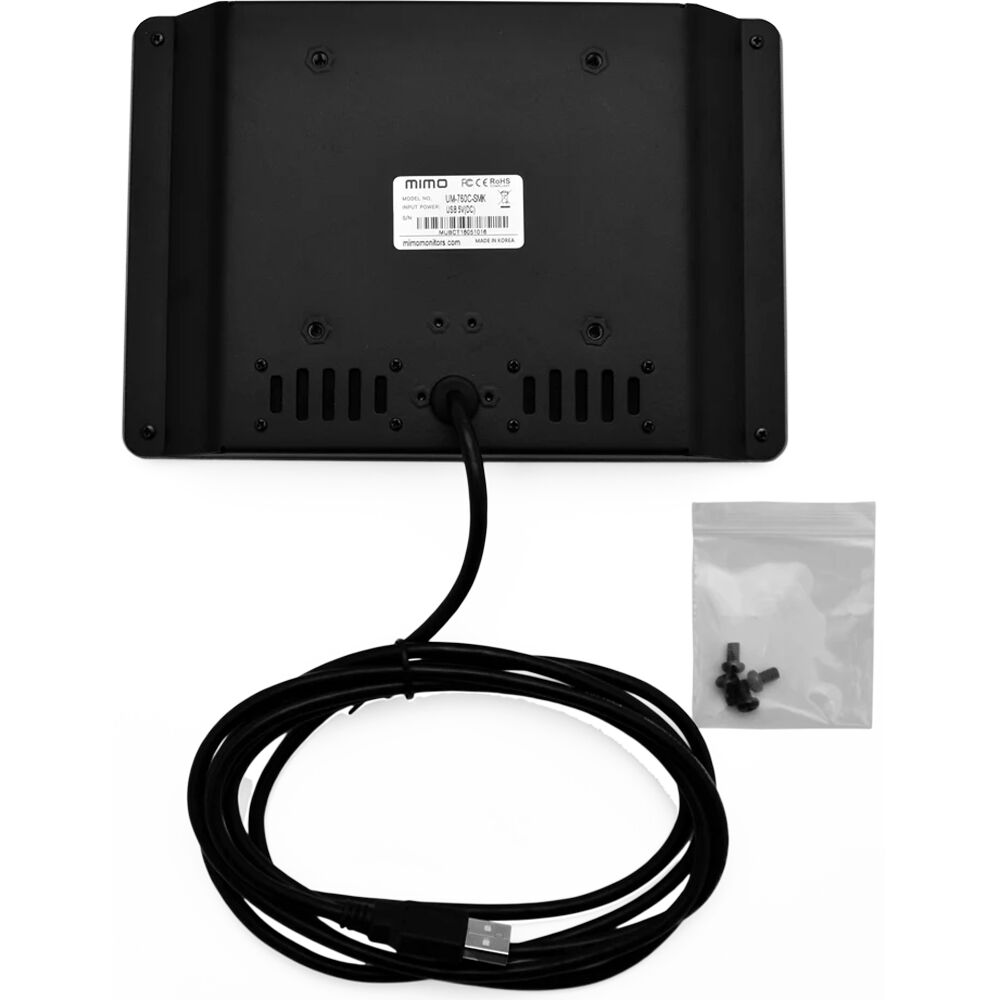

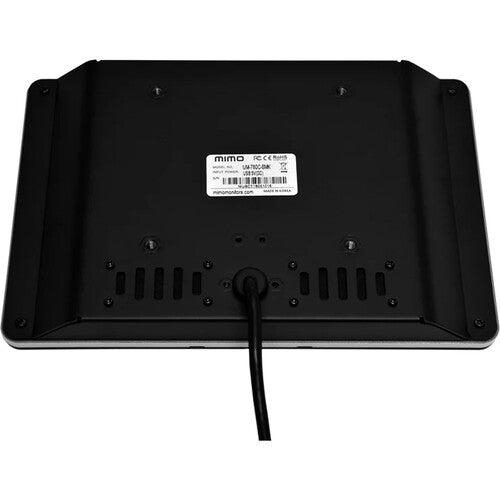

- Fully enclosed metal backing specifically designed for 75 x75mm VESA mounts for secure and reliable mounting
- Rear-facing 1W stereo speakers utilizing audio transfer over USB
- Adjustable backlight via USB-connected interface
- Touch is driverless on most operating systems
- Fully compatible with Windows, Linux, and macOS
- Touchscreen driver purchase required for macOS systems

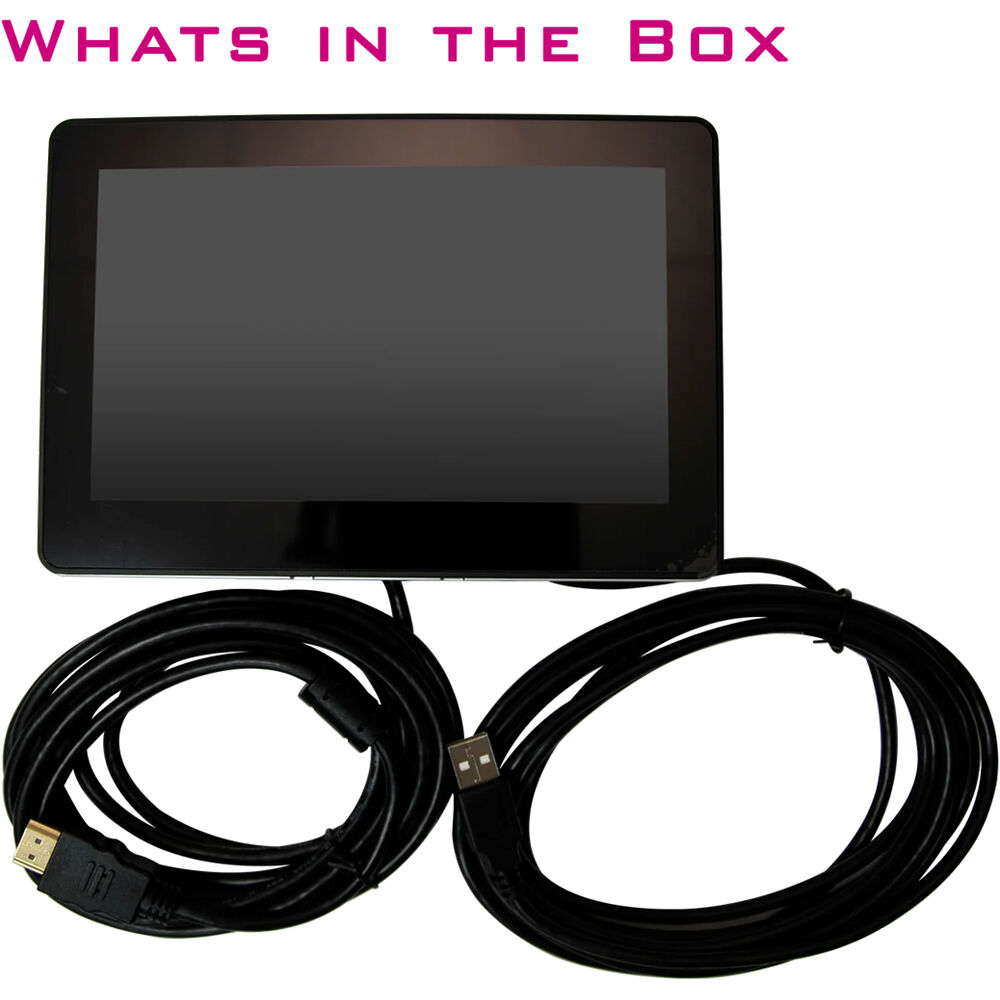

Items Included
- Mimo Monitors UM-760CH-SMK 7" WSVGA Commercial Touchscreen Monitor with HDMI, Speakers & Adjustable Brightness
- USB Cable
- HDMI Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Mimo Monitors UM-760C Specs
Key Specs
| Display Size |
7"
|
| Panel Type |
LCD
|
| Native Resolution |
1024 x 600
|
| Maximum Brightness |
250 nits / cd/m2
|
| HDR Support |
No
|
| Finish |
Anti-Glare / Matte
|
| Touchscreen Technology |
Capacitive
|
| Inputs |
1x HDMI
|
| Outputs |
No
|
| USB I/O |
1x USB-A (Unspecified Version) (Video/Touchscreen Control)
|
Display
| Display Size |
7"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Native Resolution |
1024 x 600
|
| Maximum Brightness |
250 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
700:1
|
| Refresh Rate |
60 Hz
|
| Variable Refresh Technology |
No
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| Viewing Angle (H x V) |
150 x 150°
|
| Pixels Per Inch (ppi) |
169 ppi
|
| Finish |
Anti-Glare / Matte
|
| Touchscreen Technology |
Capacitive
|
| Hardness Rating |
3H
|
Connectivity
| Inputs |
1x HDMI
|
| Outputs |
No
|
| HDCP Support |
Yes
|
| USB I/O |
1x USB-A (Unspecified Version) (Video/Touchscreen Control)
|
| USB Power Delivery |
4 W (via USB-A)
|
| Built-In Speakers |
No
|
Electrical
| Power Consumption |
Operational: 4.0 W
|
| Power Adapter Type |
External
|
General
| Operating Conditions |
-4 to 140°F / -20 to 60°C
|
| Certifications |
FCC, CE, RoHS, KC, TAA
|
| Lock Slot |
No
|
| Dimensions |
7.3 x 5 x 0.8" / 185.7 x 127 x 21 mm
|
