Description

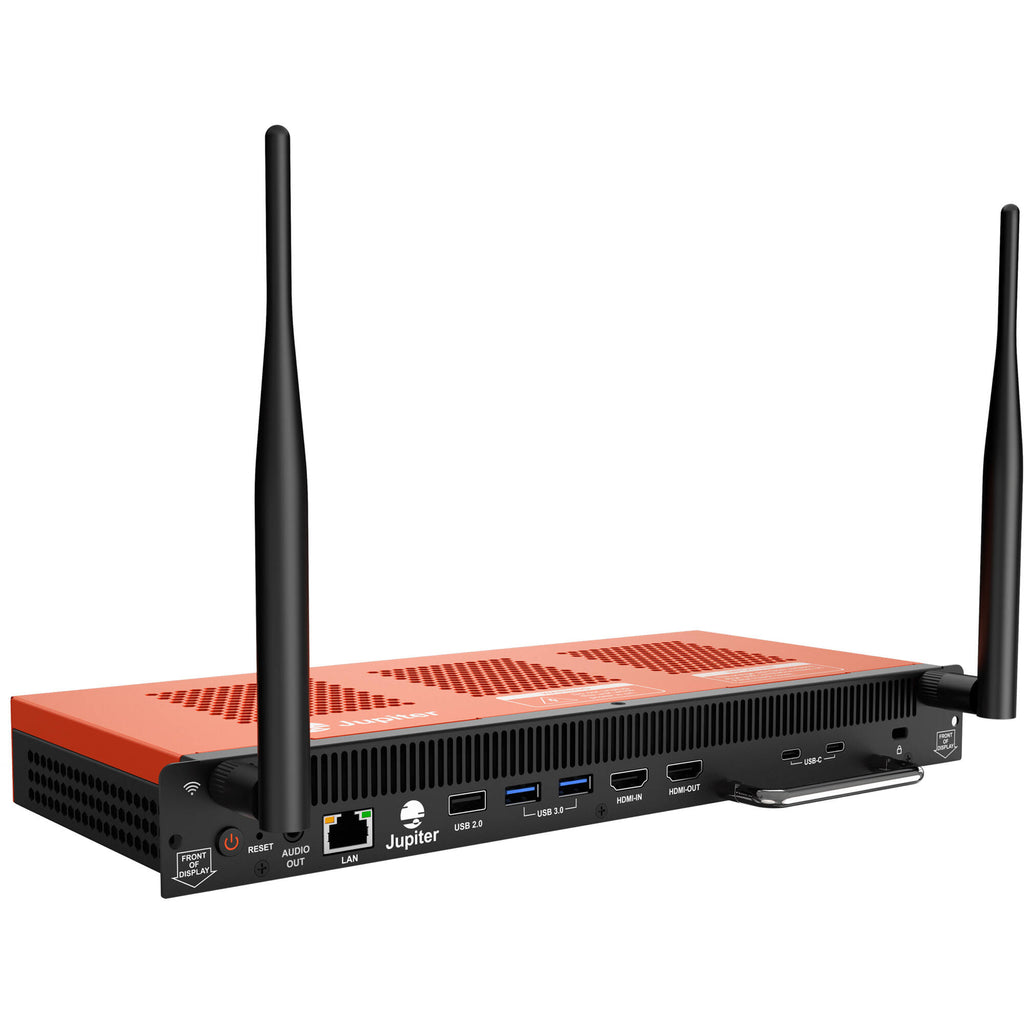

Jupiter Systems JPCM Overview
Add a powerful computer to your Pana X 21:9 5K display with this JCPM Jupiter Proprietary Computer Module from Jupiter Systems. The module is designed to install into a Pana X display using its 80-pin interface and provide computer services directly onto the display.
It features a powerful Intel i7 processor and GeForce RTX 3050 GPU to run Windows 10 Pro and output up to 5K120 video to the display. Connectivity options include Wi-Fi, Bluetooth, and Gigabit Ethernet. It can also be removed from the display and used as a portable Windows workstation.
Features
- Plugin display computing module for Pana X 21:9/5K displays
- Intel i7 Intel Core desktop processor
- Outputs 5K at 120 Hz
- Nvidia RTX3050 8GB GPU
- Upgradeable 256GB SSD
- 16GB DDR4 RAM
- Gigabit Ethernet LAN
- 2.4/5 GHz Wi-Fi 6 and Bluetooth 5.2 support
- Two USB-C 3.0 and two USB-A 3.0 ports
- HDMI input and output
- 3.5mm stereo audio output
- Windows 10 Pro
- Cable lock hole
- Can be converted to a portable desktop workstation
Items Included
- Jupiter Systems JCPM Jupiter Proprietary Computer Module for Pana X Displays
- Limited 3-Year Manufacturer Warranty
Additional Resources
Jupiter Systems JPCM Specs
| Processor |
Intel i7-12700 12th Gen Intel Core Desktop Processor
|
| # of Cores |
12
|
| # of Threads |
20
|
| Max Turbo Frequency |
4.9 GHz
|
| Security |
TPM 2.0 Chip
|
| RAM |
16 GB DDR4
Dual SODIMM DDR4, 3200 MHz |
| SSD Storage |
256 GB M.2 2280 NVMe PCIe 4 SSD
|
| GPU |
NVidia GeForce RTX 3050 8 GB GDDR6
|
| Operating System |
Windows 10 Pro
|
| Connectors |
1 x HDMI 2.1 Output (5K120)
1 x HDMI 1.4 Input (4K30) 1 x 80-Pin Back Panel Connector for Display Panel 2 x USB-C, PD 100 W, 5K120 Video 2 x USB-A 3.0 1 x USB-A 2.0 1 x RJ45, 10/100/1000 Ethernet 1 x 3.5 mm Audio/Headphone Output |
| Bluetooth |
5.2
|
| Wi-Fi |
2.4/5 GHz 2 x 2 Wi-Fi 6E 802.11ax
Model AX210 |
| Antennas |
Yes, 2
|
| Maximum Power Consumption |
180 W
|
| Standby Power |
1.3 W
|
| Input Voltage |
19 VDC, 10 A (via 80-Pin Connection)
|
| Battery |
CR2032 XP X, 3 V Lithium-Ion
|
| Color |
Orange and Black
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
14 to 149°F / -10 to 65°C
|
| Operating Humidity |
10 to 90%
|
| Storage Temperature |
10 to 90%
|
| Noise Level |
?30.4 db
|
| Security Lock Slot |
Yes
|
| Dimensions |
5.12 x 12.39 x 1.38" / 130.0 x 314.8 x 35.0 mm
|
| Net Weight |
3.75 lb / 1.7 kg
|
