- Installs Flush to the Floor
- Ideal for High Traffic Areas
- Quickly Access or Hide Cabling

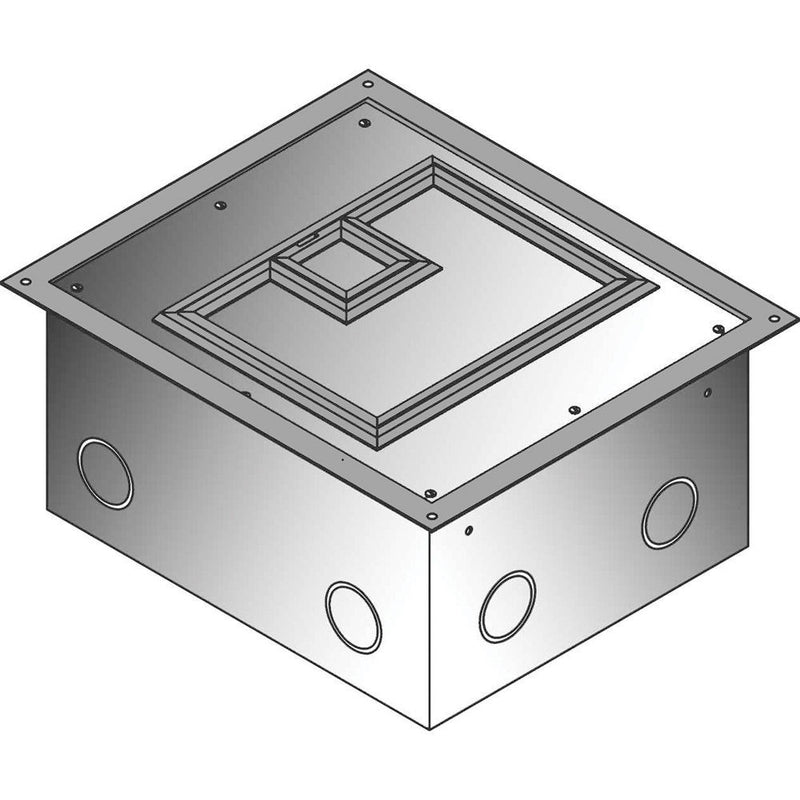

The FSR FL-540P 10" Deep Floor Box is ideal for auditoriums, stages or other venues with floors constructed of wood or thin tile over concrete.
A floor box provides ready access to cabling, coupled with the ability to stow and hide it when not in use, while retaining use of the floor space.
The box features a large hinged cover which folds back�for�user access to cables and connector plates, which also incorporates�a smaller hinged door for utilizing cable with minimal open box exposure.�The welded steel box features leveling feet to ensure a clean, flat�installation and eliminate hazardous protrusions. The 2 internal brackets will hold�1 single gang plate, 1 double gang plate�and 1 four gang plate.
The FL-540 ships with a temporary construction cover which must be replaced with a finished cover.�Oak, black, aluminum and brass finished�covers may be purchased separately.
In the Box
FSR FL-540P 10" Deep Floor Box
- Temporary Construction Cover (Finished Covers Available Separately)
- 1 Year Manufacturer's Warranty
| Dimensions | (LxWxD) 12 x 10 x 10" (30.5 x 25.4 x 25.4 cm) |
| Weight | 19 lbs (8.6 kg) |
| Packaging Info |
| Package Weight | 24.65 lb |
| Box Dimensions (LxWxH) | 14.8 x 12.5 x 11.9" |
