Comprehensive WPD-HD-U3C-AW Overview

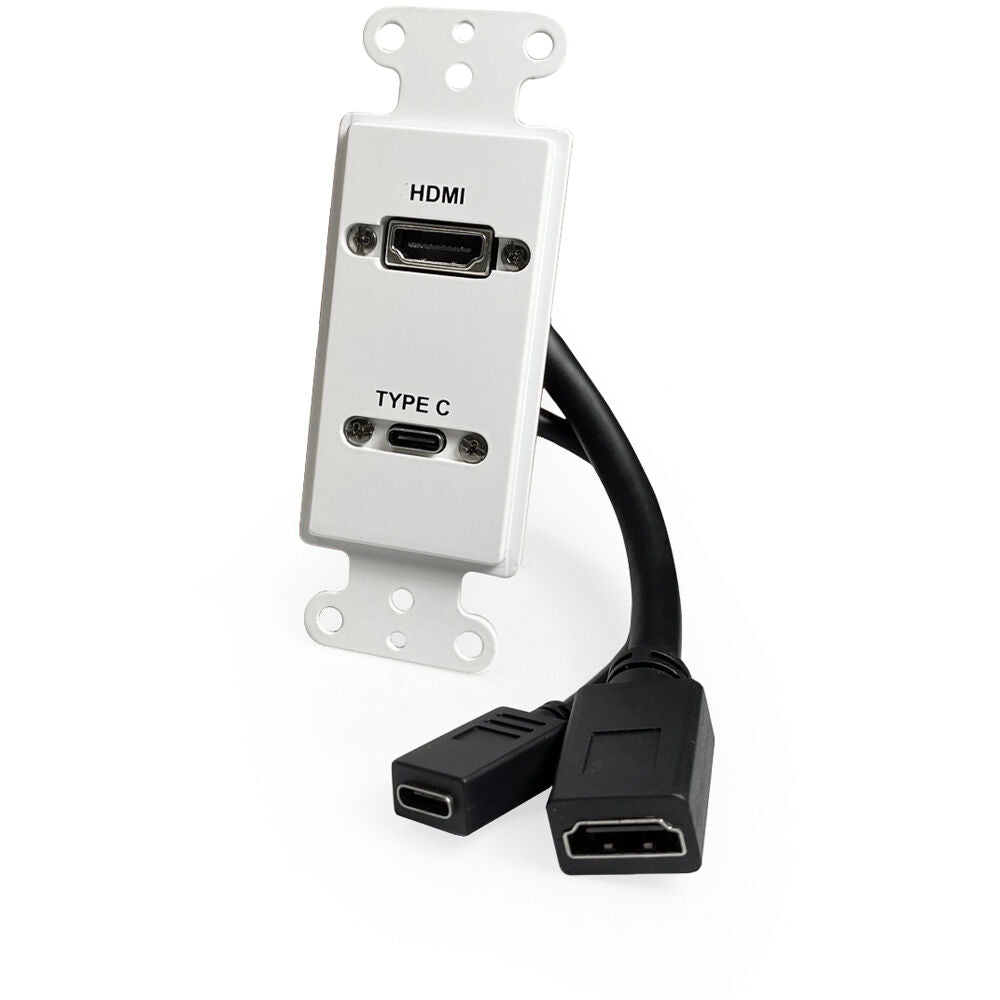

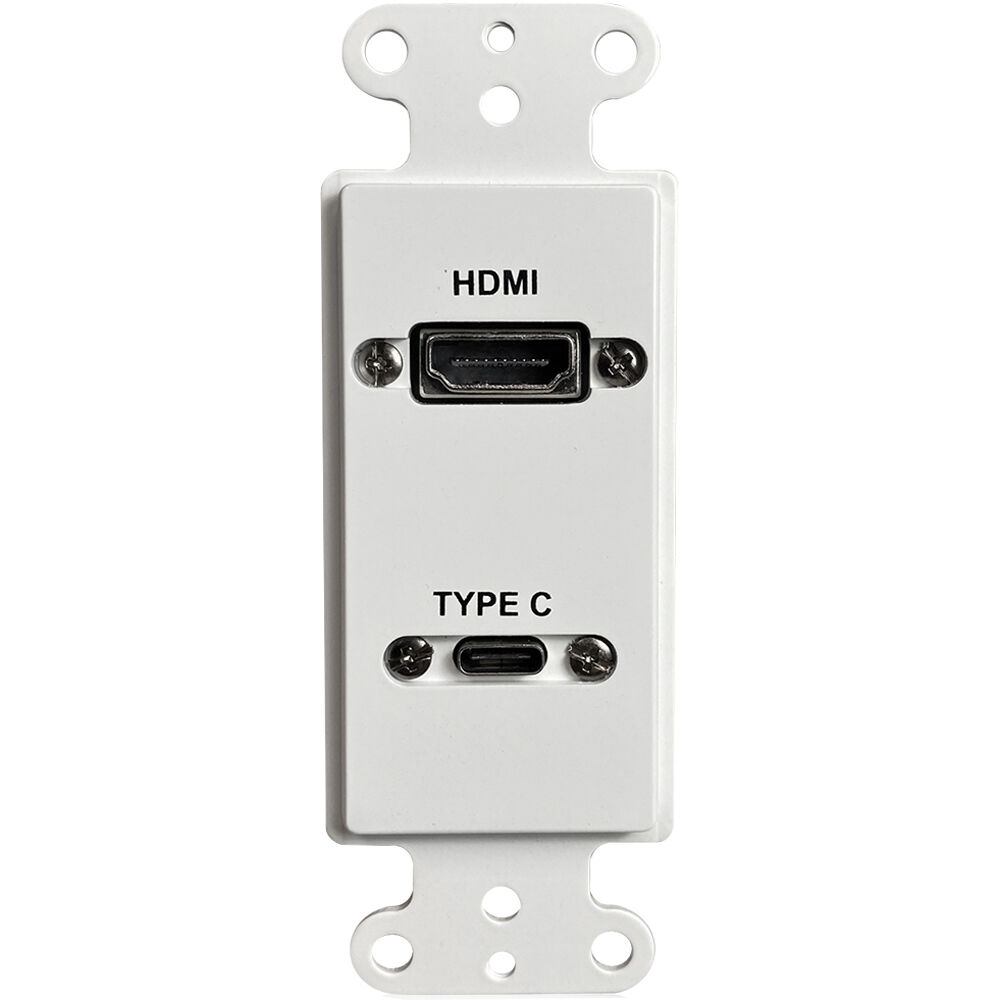

The Comprehensive HDMI and USB Type-C Pigtail Wall Plate is perfect for all in-wall cabling applications requiring HDMI and USB 3.0 connectivity. Constructed of white-finished metal and an ABS cover plate, this pass-through wall plate offers a sleek and professional appearance to reduce cable clutter. It is an ideal solution for A/V integrators for in-wall installation. The included USB 3.1 Gen 1 Type-C port supports data transfer speed up to 5 Gb/s and is compatible with USB 2.0 devices.

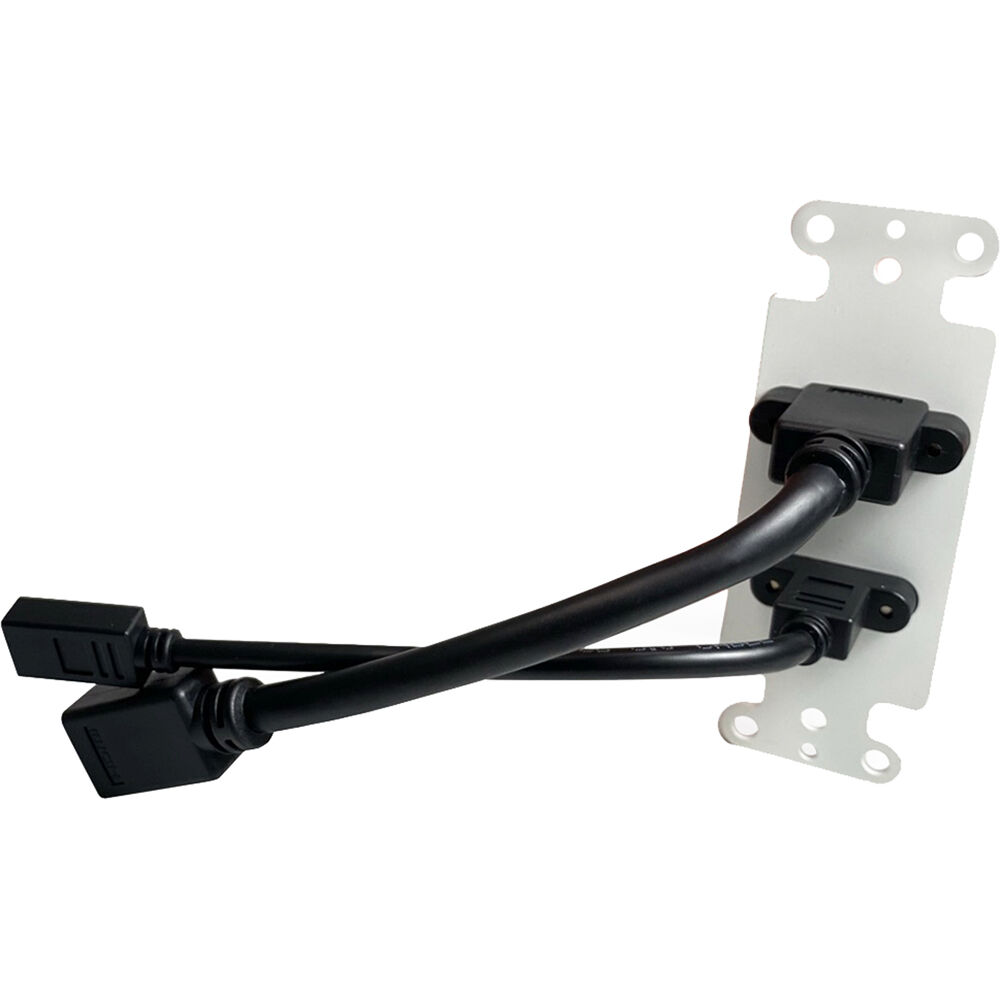

The pass-through ports are professional-grade for repeated use in offices, meeting spaces, classrooms, houses of worship, or wherever A/V room connectivity is required. Each port includes a thin, flexible pigtail cable to accommodate the tight-bend radius required for installations within a standard junction box.
- Commercial-grade design
- HDMI 2.0 and 1.4 support
- USB 3.1 Gen 1
In the Box
- Comprehensive HDMI and USB Type-C Pigtail Wall Plate (White)
- 2 x 5/16" White Screws
Comprehensive WPD-HD-U3C-AW Specs
General
| Compatibility |
Not Specified by Manufacturer |
Environmental
| Certifications |
RoHS
*as per Manufacturer |
| Operating Temperature |
32 to 102°F / 0 to 70°C |
| Operating Humidity |
5 to 95% |
| Storage Temperature |
-4 to 158°F / -20 to 70°C |
Physical
| Mounting |
1 x Wall Plate |
| Color |
White |
| Material of Construction |
ABS Face Plate, PVC Jacket |
| Dimensions |
4.48 x 2.75 x 0.13" / 11.38 x 6.99 x 0.33 cm |
| Weight |
Not Specified by Manufacturer |
Packaging Info
| Package Weight |
0.215 lb |
| Box Dimensions (LxWxH) |
8.05 x 5.4 x 2.45" |
Comprehensive WPD-HD-U3C-AW Reviews
