Description

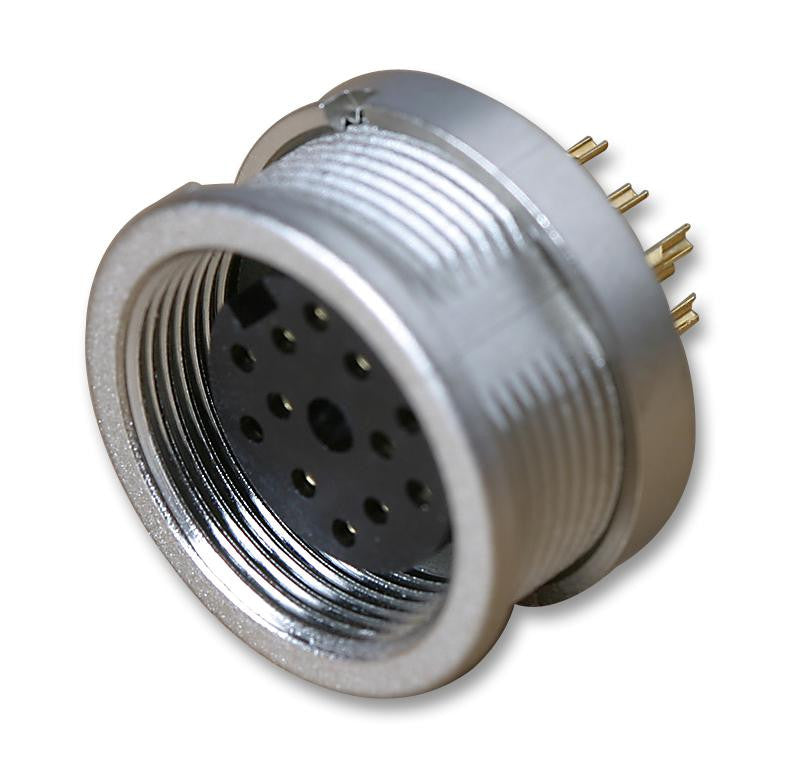

The KFV 120 is a 12-pole Chassis Socket with threaded joint and solder terminals for front mounting. UL94V-0 flame-rated polyamide insulating body, nickel-plated contacts. The chassis socket is suitable for use with SV and WSV series plugs. Designed according to IEC 61076-2-106 standards.
- IP40 Protection rating
- <5.0N Insertion force/contact
- >=0.9N Withdrawal force/contact
- <=5mR Contact resistance
Applications
Industrial, Audio, Imaging, Video & Vision
Product details
| No. of Contacts | 12Contacts |
| Contact Plating | Nickel Plated Contacts |
| Gender | Socket |
| Product Range | - |
| Connector Body Material | Plastic Body |
| Connector Mounting | Panel Mount |
Other details
| Brand | LUMBERG |
| Part Number | KFV 120 |
| Quantity | Each |
| Technical Data Sheet EN |  |
