Description

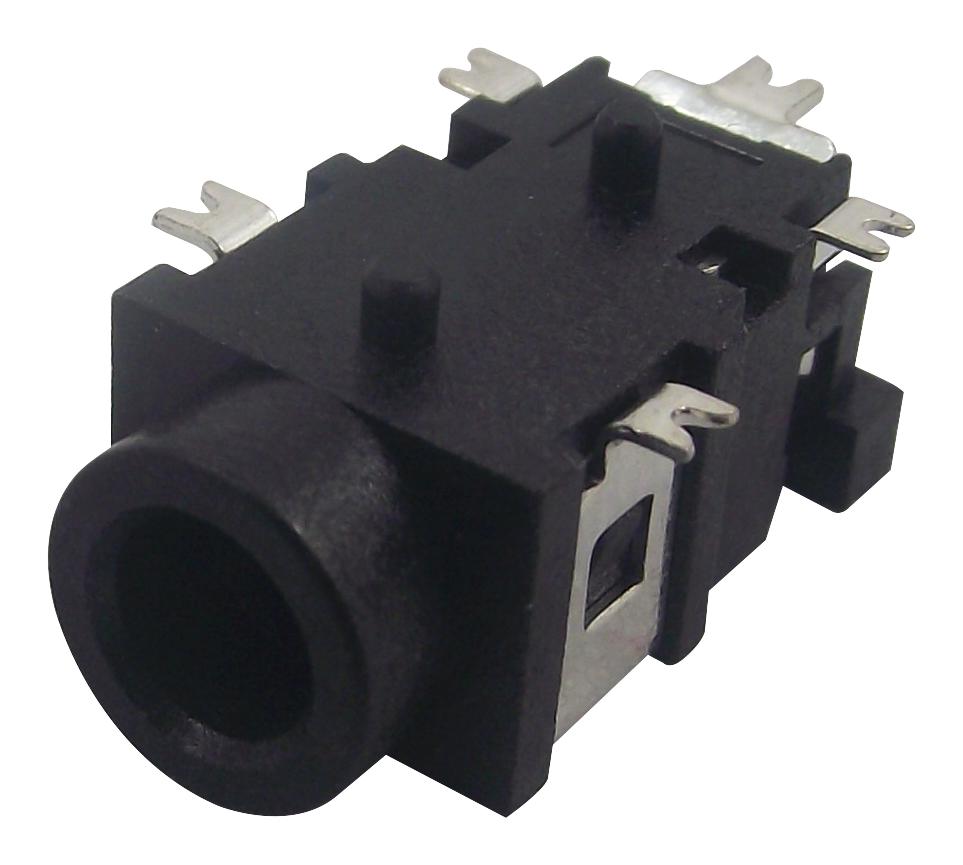

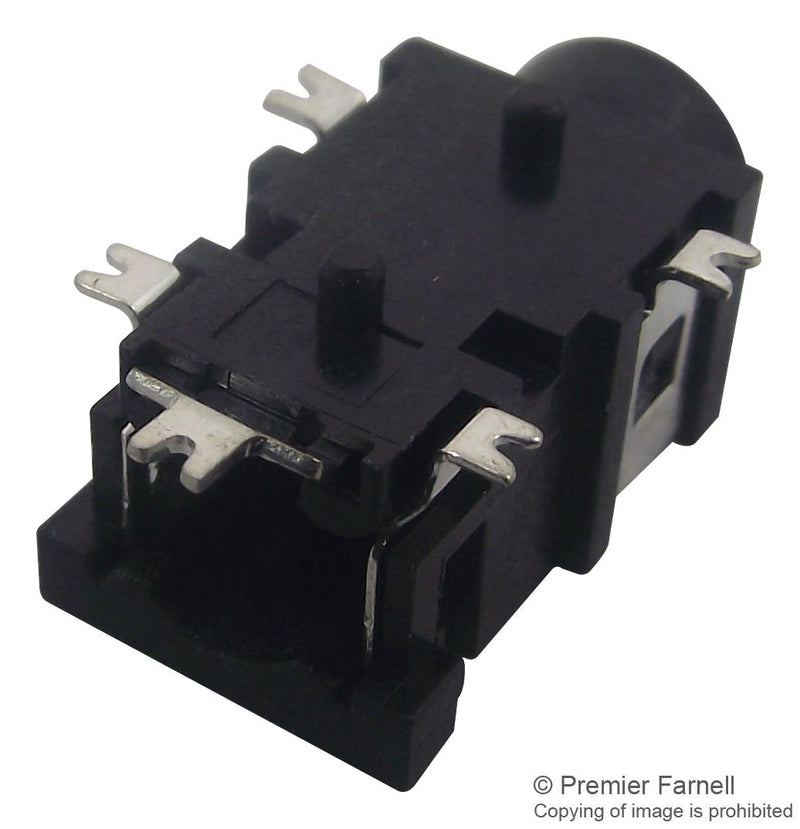

The 1503 03 from Lumberg is a 3.5mm, 3pole stereo jack socket connector. The angular version jack chassis socket are according to JIS C 6560 JC35J3A standard for printed circuit boards and surface mounting technology (SMT).
- Rated current of 1A
- Rated voltage of 34VAC/VDC
- Insulating body material is polyamide, UL94-HB rated
- Copper alloy, tin plated contact
- Mating with KLS 40, KLS 44, WKLS 40 jack plugs
- Temperature range from -20°C to 70°C
Applications
Audio, Industrial
Product details
Other details
| Brand | LUMBERG |
| Part Number | 1503 03 |
| Quantity | Each |
| Technical Data Sheet EN |  |
