Description
Switchcraft MT48FN Overview

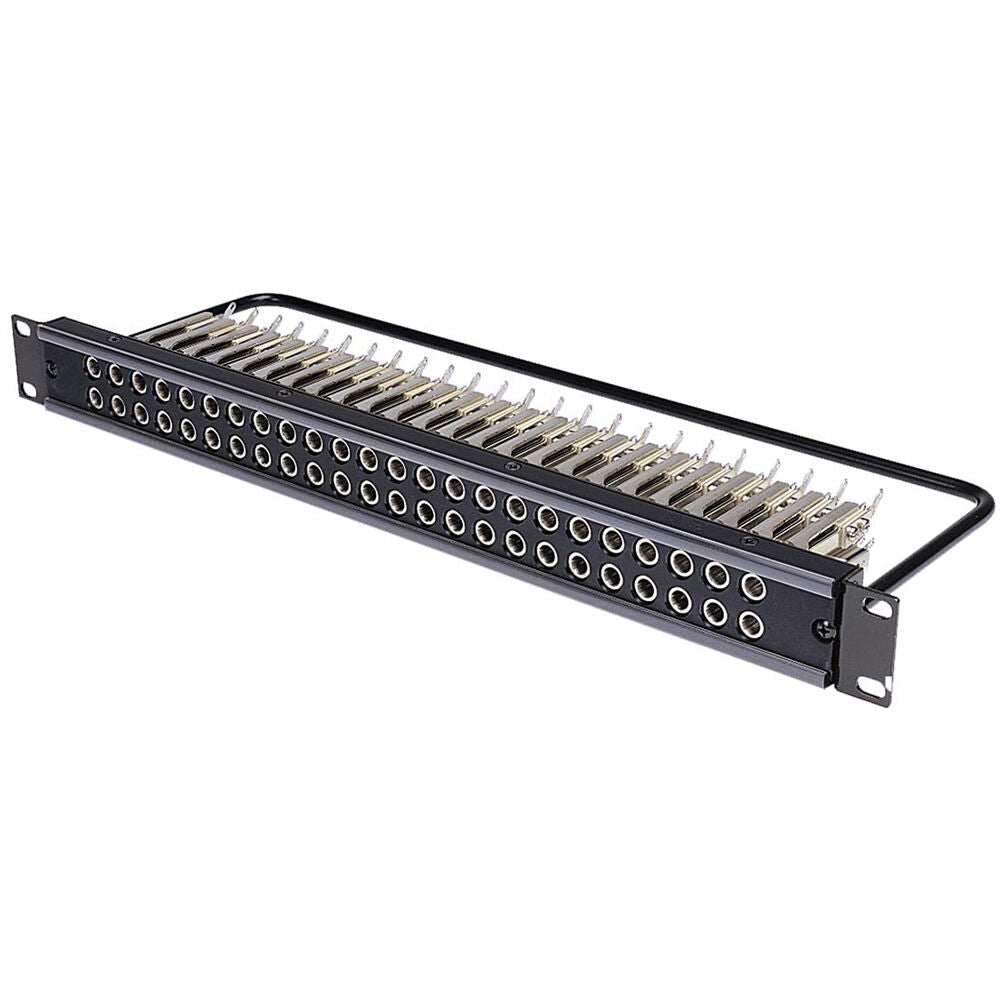

The Switchcraft MT48FN is a rugged, versatile patch bay originally designed to meet military specifications. Use this patch bay to keep your studio connections organized.
This is a fully normalled patch bay with 48 (2 x 24) heavy-duty 1/4" long-frame connection points. The patch bay offers a cable-tie bar for supporting the weight of cables. You'll also find prominent pre-tinned solder lugs on the back for I/O, as well as changable designation strips for keeping track of connections.
In the Box
- Switchcraft MT48FN 2 x 24 Long Frame Audio 1/4" Patchbay Cable Tie Bar (Full Normals Out, 1 RU)
- Limited Lifetime Warranty
Switchcraft MT48FN Specs
Connectors
| Connections | 48 |
| Frame | Stamped Nickel-Plated Steel |
| Bushing | Nickel-Plated Brass |
| Springs | Tip, Ring and Shunt: Nickel Silver with Welded Contacts |
| Screws | Assembly Screws: Nickel-Plated Steel |
| Contacts | Welded Contacts: Gold Alloy |
Panel
| Material | Front Panel: Thermoplastic |
| Frame | Cold Rolled Steel, Black Epoxy Painted |
| Designation | Designation Strips: Black Polycarbonate 94V-0 Designation Strip Covers: Clear Polycarbonate |
Mechanical
| Life Cycles | 30,000 Cycles |
| Insertion Force | 7 lb / 3.2 kg, Maximum |
| Withdrawal Force | 1 lb / 0.5 kg, Minimum |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
Electrical
| Contact Resistance | 30 Milliohms, Maximum Initial |
| Insulation Resistance | 10,000 Megohms, Maximum |
| Dielectric Withstanding Voltage Test | 500 VAC at 60 Hz |
| Working Voltage | 140 VDC Maximum |
| Current Rating | 100 mA |
