Description
Flock Audio PATCH Overview

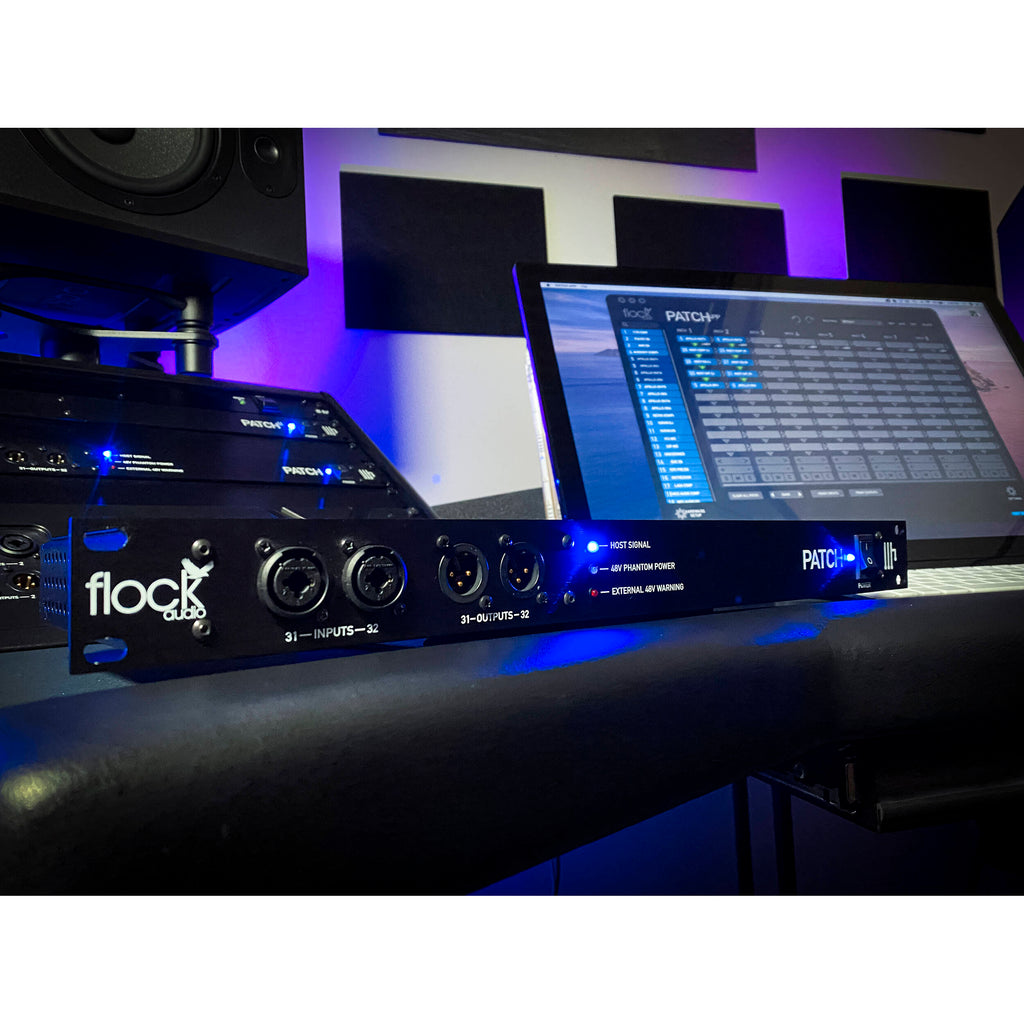

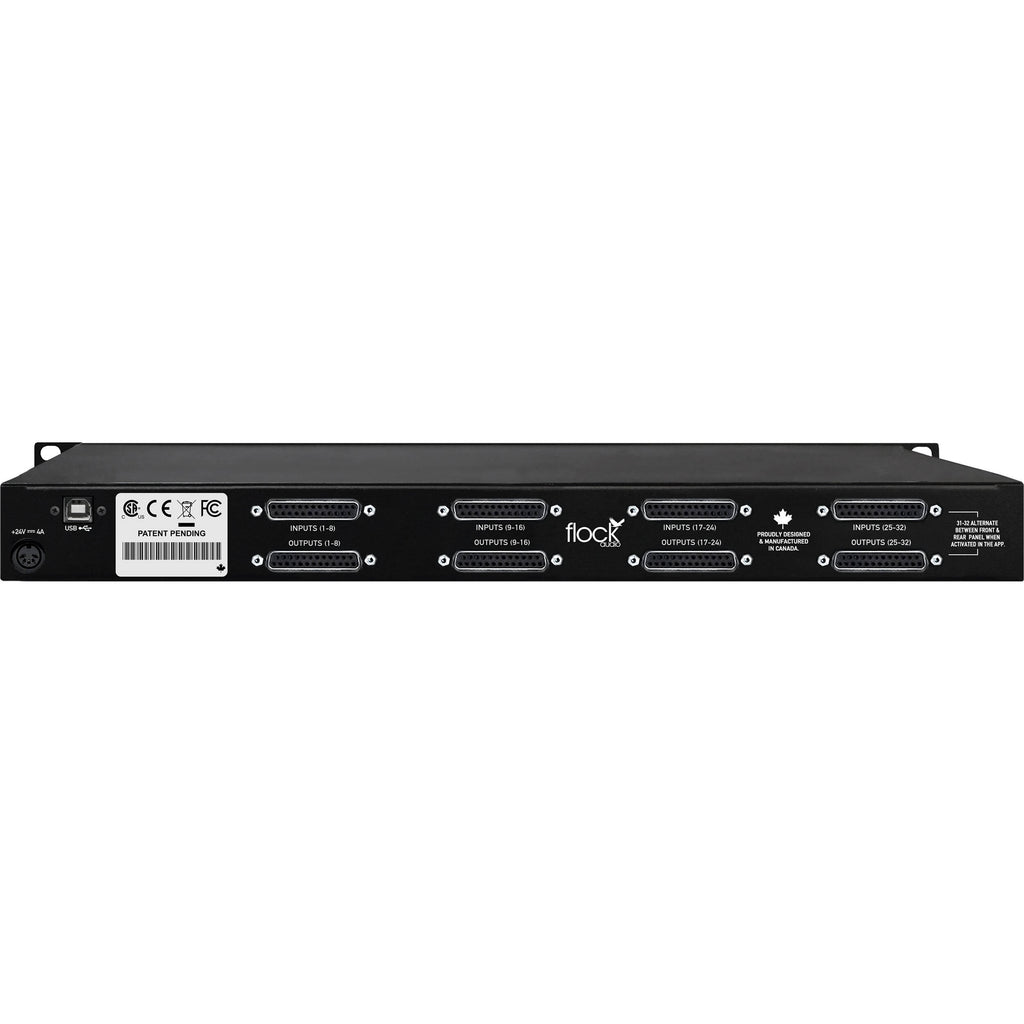

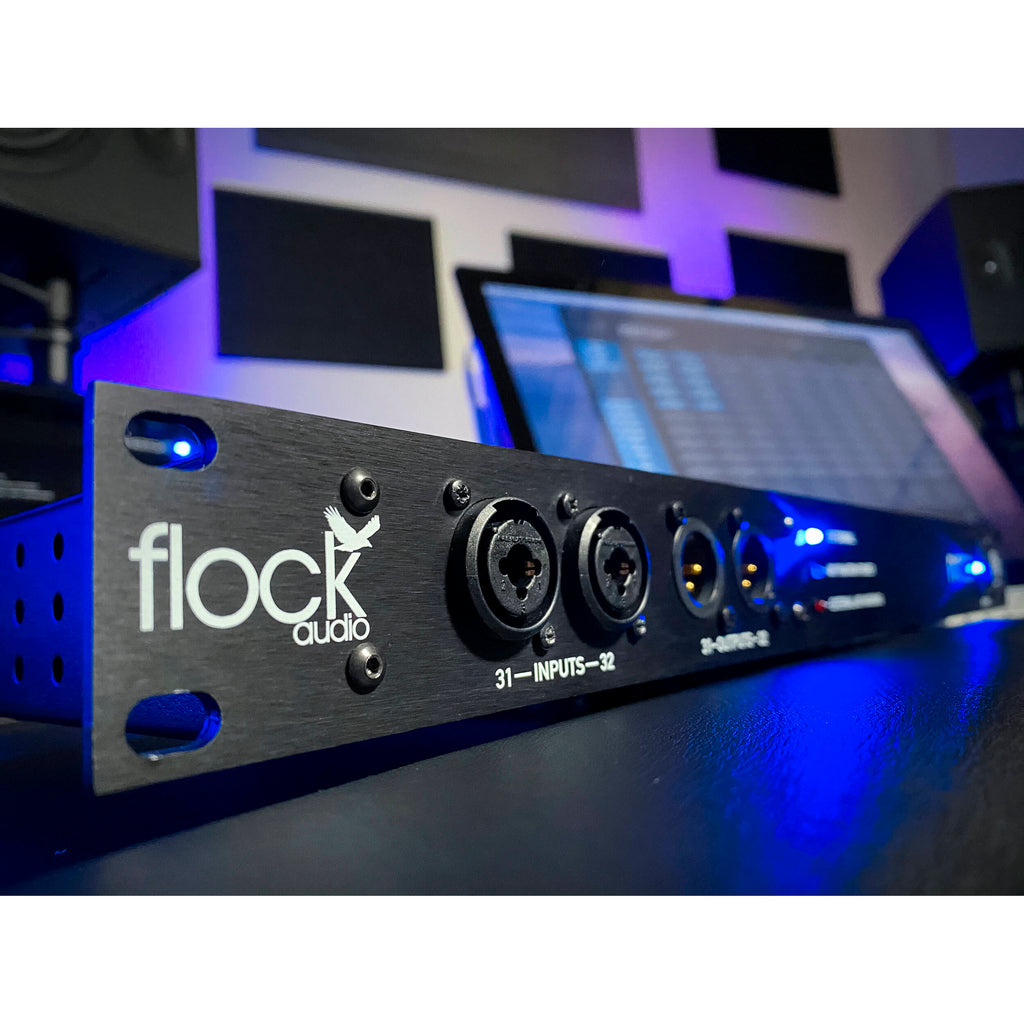

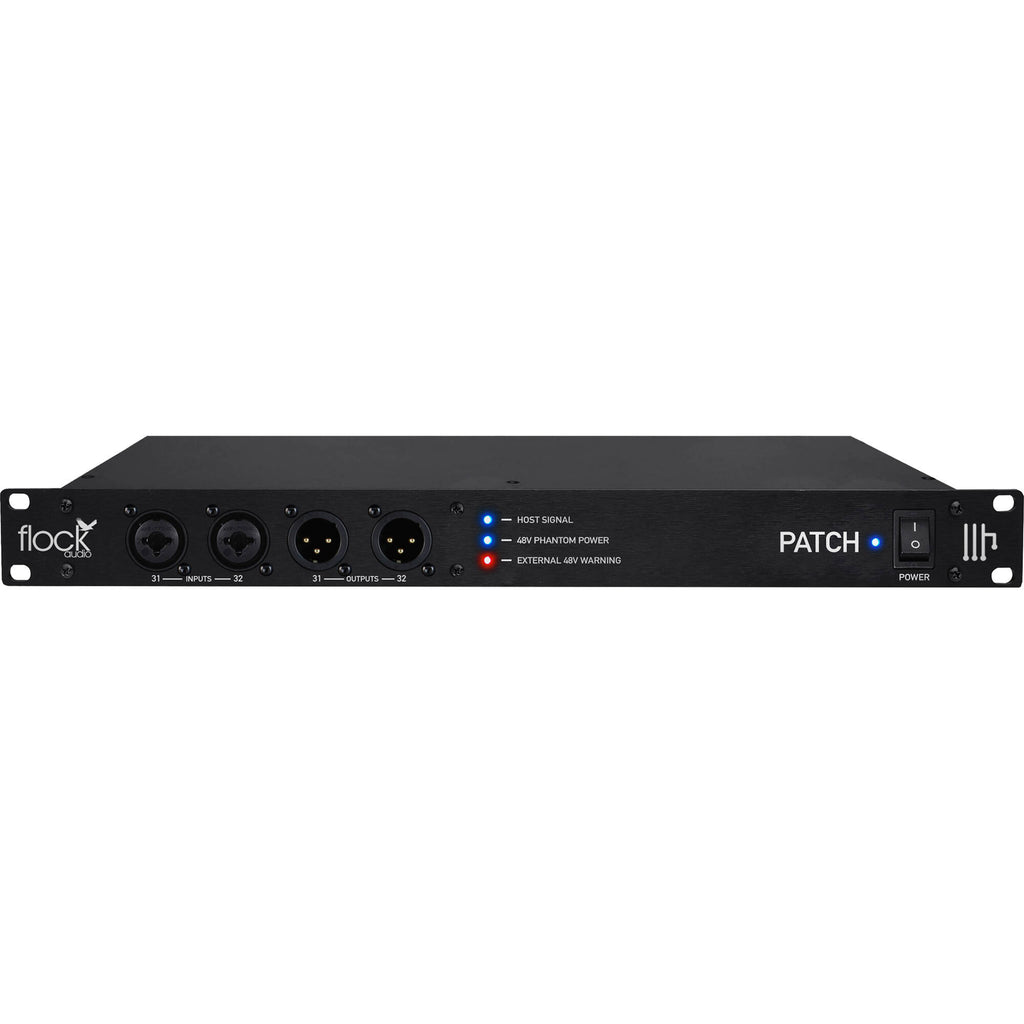

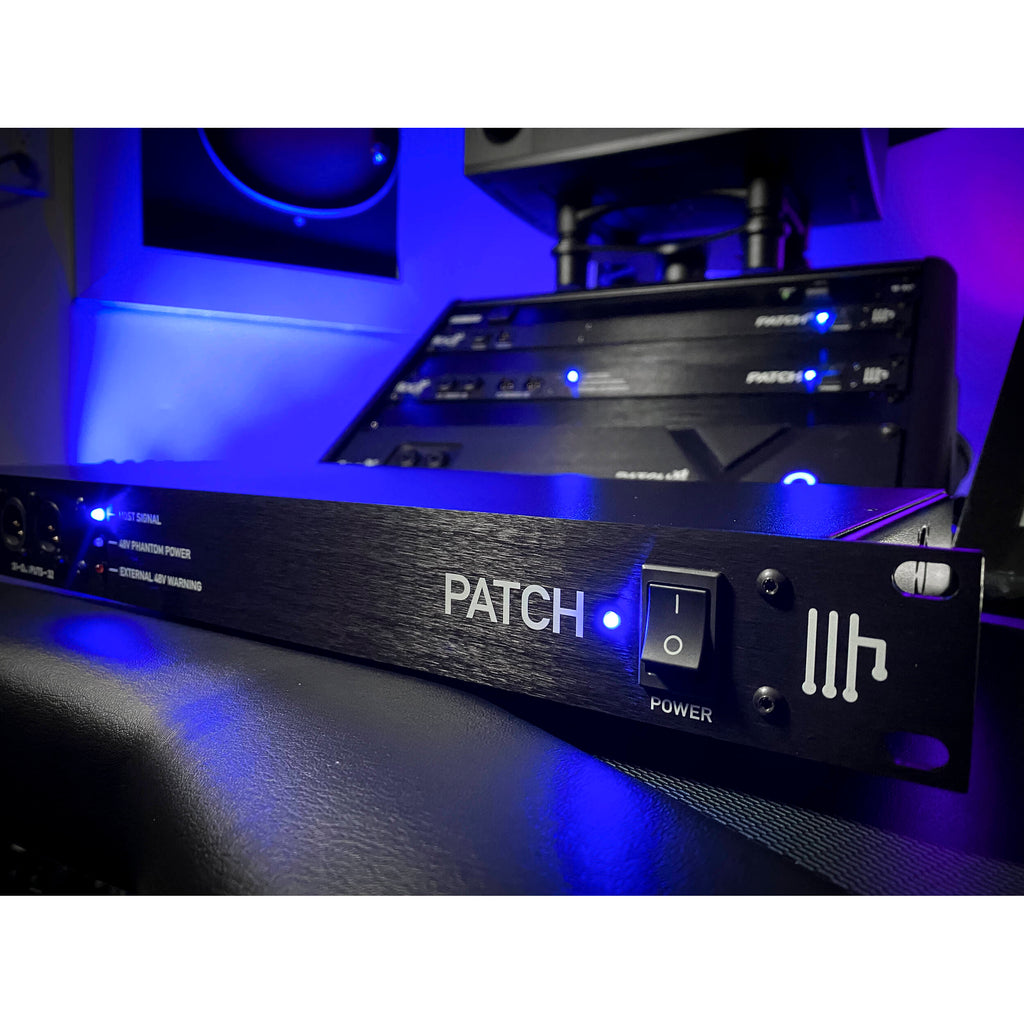

Route and digitally control 32 analog audio inputs and 32 outputs with the PATCH 64-Channel Digital/Analog Patch System from Flock Audio. This 64-channel rackmount patching system offers two Neutrik XLR/TRS combo jack inputs and two Neutrik XLR male outputs, along with standard Tascam 25 pinout wiring format using four DB-25 / D-Sub connectors. A USB-B host connector provides vast compatibility with a wide range of control devices while three LED indicators provide verification of the signal status of the host device, 48V phantom power, and external 48V warning.

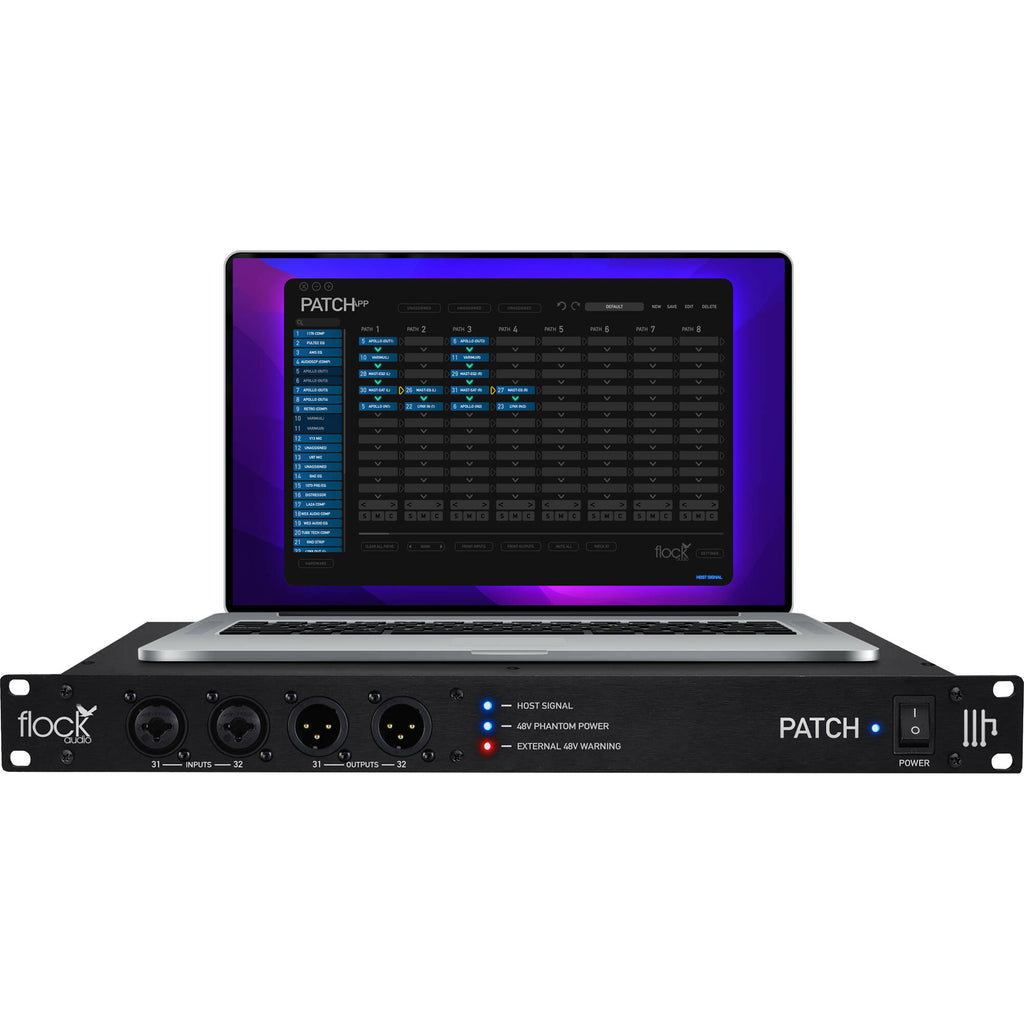

Employing the PATCH APP software application, which is compatible with both Windows and Mac operating systems, facilitates the control and routing of analog audio signals without the need of manual patch cables. The use of digital technology over analog audio is a unique feature that singles out the PATCH as an essential centerpiece hub of any audio processing setup. The package includes a 24 VDC power supply, a 110 to 220V IEC power cord, and a 10' USB-A to USB-C cable.
Items Included
- Flock Audio PATCH 64-Channel Digital/Analog Patch System
- 24 VDC Power Adapter
- 110-220V IEC Power Cord
- USB-A to USB-C Cable (10')
- Limited 1-Year Manufacturer Warranty
Additional Resources
Flock Audio PATCH Specs
| Compatibility |
Flock Audio EcoSystem
|
| USB I/O |
1 x USB-B Integrated Male Input
|
| Audio I/O |
2x Combo XLR-1/4" 3-Pin Input
2x Combo XLR-1/4" 3-Pin Output |
| Power Source |
AC Adapter with Power Brick (Included)
|
| AC Input Power |
110 to 220 VAC, 50 / 60 Hz
|
| DC Input Power |
24 VDC at 4 A
|
| Mounting |
4x Rack Screw
|
| Color |
Black
|
| Certifications |
CE, FCC, RoHS
|
| Dimensions |
19 x 9 x 1.7" / 482 x 227.4 x 43.8 mm
|
| Weight |
8.8 lb / 4 kg
|
| Package Weight |
13.32 lb
|
| Box Dimensions (LxWxH) |
27.3 x 13 x 5.3"
|
