Dsan PRO-2000RM Overview

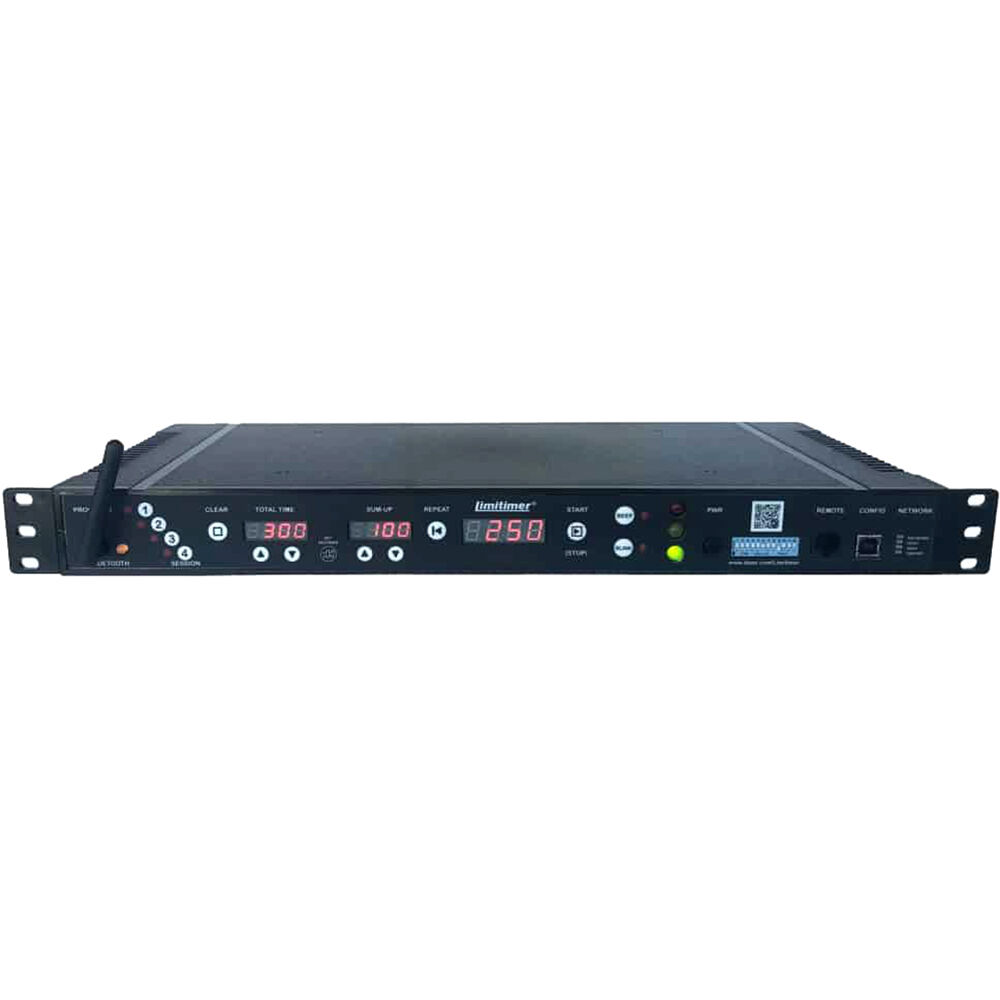

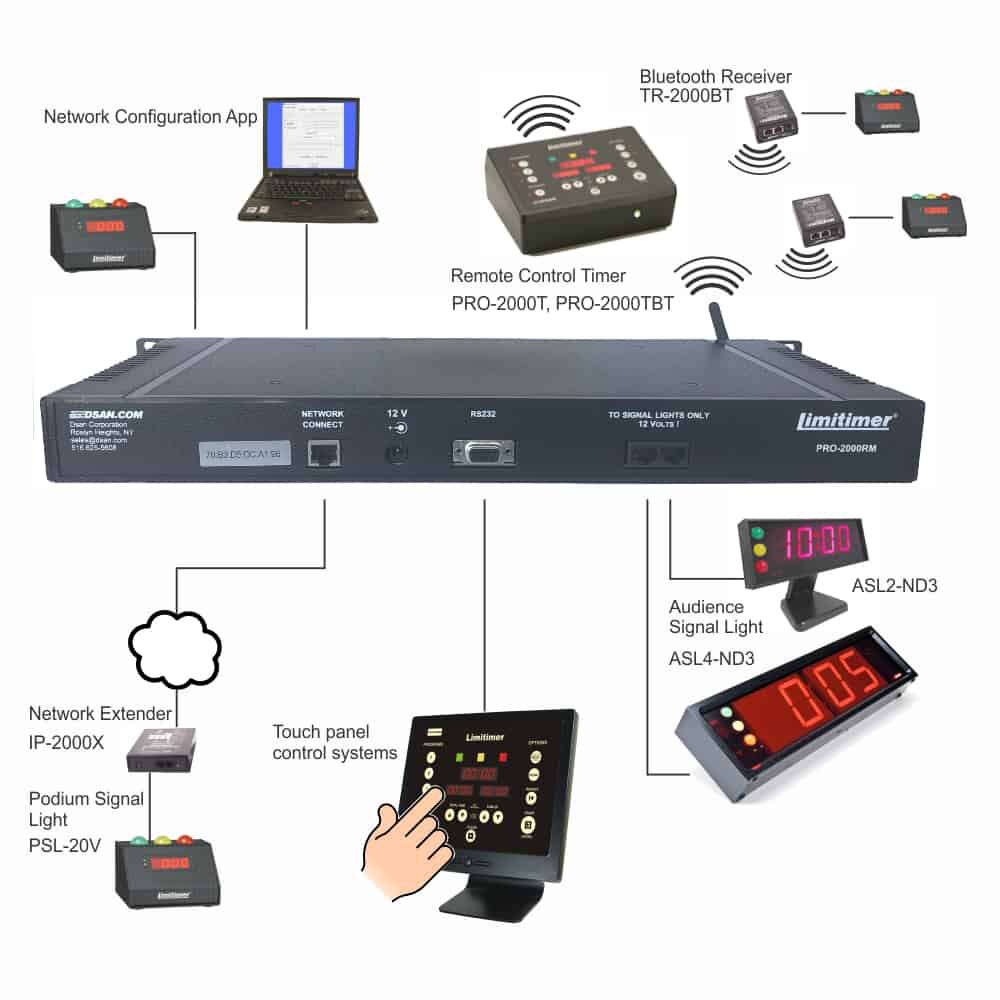

The Dsan Limitimer PRO-2000RM is a speaker timer system for studio installations. Housed in a 1 RU rackmount enclosure, it combines the Limitimer controller with an Ethernet port and a serial data port to connect to popular touch panels and show-control systems. Limitimer Signal Lights are triggered via hardwire or across local or wide-area networks. The unit can also be controlled by other client-configured timers in the Limitimer family.
Front DIP switches allows for easy access to set options for sound cues, volume, counting format, seconds display, and wireless channels. Through a front-panel USB port, a computer can access user guides, setup examples, touch-panel programs, store personal documents, and launch an application to configure network properties (IP address, gateway, mask, port and DHCP). Limitimer PRO-2000RM Rackmount is sold without a display signal light.
Note:
The Limitimer Rackmount usually includes Bluetooth ability. However, due to global supply chain issues, this wireless part may not be available. When and if the part becomes available, Dsan will provide it at no charge upon request from customers who did not get Bluetooth ability with the original purchase.
- Four program presets
- Two signal light RJ45 ports
- One Ethernet jack with USB-accessible software to configure network parameters
- One RS-232 serial jack with ASCII command API
- Integrated Bluetooth transceiver to serve up to 6 remote Bluetooth signal light receivers
- Onboard speaker with selectable sound cues: beep, blink, chime
- 110-220V external power supply sufficient to drive timer and two signal lights
In the Box
- Dsan Limitimer PRO-2000RM System (1 RU)
- Power Supply
Dsan PRO-2000RM Specs
General
| Compatibility |
Not Specified by Manufacturer |
Power
| Power Source |
AC Adapter with Power Brick (Included) |
| AC Input Power |
110 to 220 VAC, 50 / 60 Hz |
| DC Input Power |
12 VDC at 1 A |
Physical
| Mounting |
1 x Rackmount |
| Color |
Black |
| Dimensions |
17 x 8 x 1.7" / 43.2 x 20.3 x 4.3 cm |
| Weight |
4 lb / 1.8 kg |
