Description
Williams Sound WaveCAST Overview
The WaveCAST C Single-Channel Wi-Fi Audio Streaming System with Dante from Williams Sound is a hardware-based DSP audio system that can stream real-time audio over Wi-Fi for professional audio applications that require high-quality sound. Audio for assistive listening or other purposes may be streamed to a free mobile app that is compatible with iOS and Android, or to personal devices with Wi-Fi receivers. The WaveCAST C can be easily integrated with third-party room systems and controlled with Telnet commands via Ethernet.

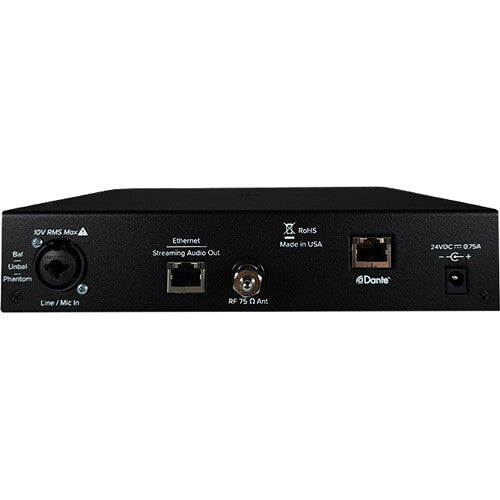

The device features a 3-pin XLR-1/4" TRS combo connector with selectable phantom power and a line level output jack, as well as an RJ-45 port for Dante connectivity. DSP features include AGC, custom audio presets, high- and low-pass filters, limiters, and compressor gain control. WaveCAST C offers unicast and multicast network configurations. And it can have most of its settings controlled via front-panel integrated OLED display or hosted web interface. You can select channel and volume levels when you're connected to the Wi-Fi network using a personal device.
In the Box
- Williams Sound WaveCAST C Single-Channel Wi-Fi Audio Streaming System with Dante
- Power Supply
- Limited 2-Year Manufacturer Warranty
Williams Sound WaveCAST Specs
| Audio |
Audio Inputs:
1 x Combination 3-pin XLR, 1/4" (TRS) Jack for Balanced or Unbalanced Line Level, or Balanced or Unbalanced Microphone with Selectable Phantom Power, RJ-45 Port for Dante Connectivity Audio Processor Functions: DSP-Based; Compression: 1:1, 1.5:1 or 2:1; High-Pass and Low-Pass Filter Frequency Control, Music, Voice, and Hearing Assistance Audio Presets Frequency Response: 31 to 16,000 Hz, ±3 dB (Re: 1 kHz) for Music Audio Preset Signal-to-Noise Ratio: 64 dB (Typical) Transmitted RF at 1 kHz Total Harmonic Distortion: Less than 0.25% at 1 kHz (RF Output) Common Mode Rejection: >57 dB at 1 kHz, Mic or Line Mode Audio Input Gain Adjust: From 24 dB to -60 dB, in 1 dB Steps from Front Screen or Web Interface Phantom Power: 14.4 VDC via 2.2 Kilohms Resistors to Analog Combo Jack: Pin 2 and Pin 3 on XLR jack, or Tip and Ring on 1/4" TRS Jack Audio Level Display: Bar Graph Display, 3 dB per Segment, -18 to 12 dB Headphone Output: 1/4" TRS Stereo Jack, Mono Signal, 7.8 mW Total Power with 33 Ohms |
| Interfaces |
3.12" High Resolution OLED Display, Hosted Web Page, Telnet Commands over Ethernet
|
| Ethernet |
RJ-45 with Support for Cat 5e up to 328' / 100 m
|
| Operating Temperature |
32 to 122° F / 0 to 50°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Power Supply |
Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz, IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID Center Positive Barrel Connector
|
| Color |
Black
|
| Dimensions (W x D x H) |
8.45 x 8.25 x 1.72" / 21.5 x 21 x 4.4 cm
|
| Weight |
3.2 lb / 1.45 kg
|
