Description

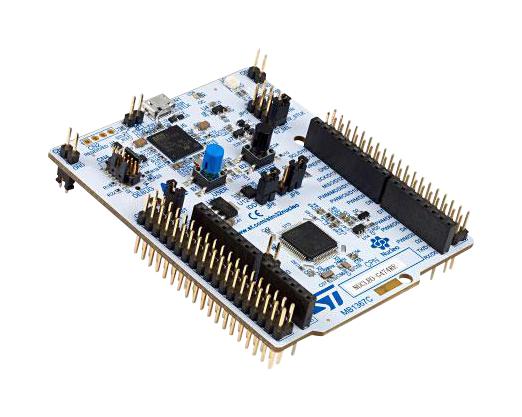

STM32 Nucleo-64 development board with STM32G474RE MCU, supports Arduino and ST morpho connectivity. The STM32 Nucleo-64 boards provide an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the external SMPS significantly reduces power consumption in Run mode.
- 1 user LED shared with Arduino�
- 1 user and 1 reset push-buttons
- 32.768KHz crystal oscillator
- Arduino� Uno V3 expansion connector
- ST morpho extension pin headers for full access to all STM32 I/Os
- Flexible power-supply options: ST-LINK, USB VBUS or external sources
- On-board ST-LINK debugger/programmer with USB re-enumeration capability
- Comprehensive free software libraries and examples available with the STM32Cube MCU Package
- Support of a wide choice of IDEs including IARâ�¢, Keil®, and GCC-based IDE
Footnotes
The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer: STMicroelectronics |
| No. of Bits: 32bit |
| Silicon Family Name: STM32G4 |
| Core Architecture: ARM |
| Core Sub-Architecture: Cortex-M4F |
| Silicon Core Number: STM32G474RET6U |
| Kit Contents: Nucleo-64 Dev Board STM32G474RET6U |
| Product Range: - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | NUCLEO-G474RE |
| Quantity | Each |
| Technical Data Sheet EN |  |
