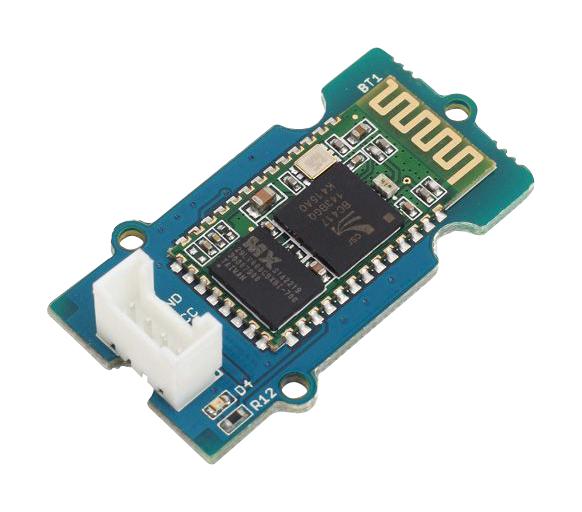

Grove - Serial Blueseeed TH (CSR BC417) is an easy to use module compatible with the existing Grove Base Shield, and designed for transparent wireless serial connection setup. The Grove - CSR BC417 module is fully qualified BluetoothV2.0+EDR(Enhanced Data Rate) 2Mbps Modulation with a complete 2.4GHz radio transceiver and baseband. It uses CSR Bluecore 04-External single chip Bluetooth system with CMOS technology and with AFH(Adaptive Frequency Hopping Feature).
- Selectable baud rate
- Auto-reconnect in 30 min when disconnected as a result of beyond the range of connection
- Dimension is 140mm x85mm x11.6mm
Contents

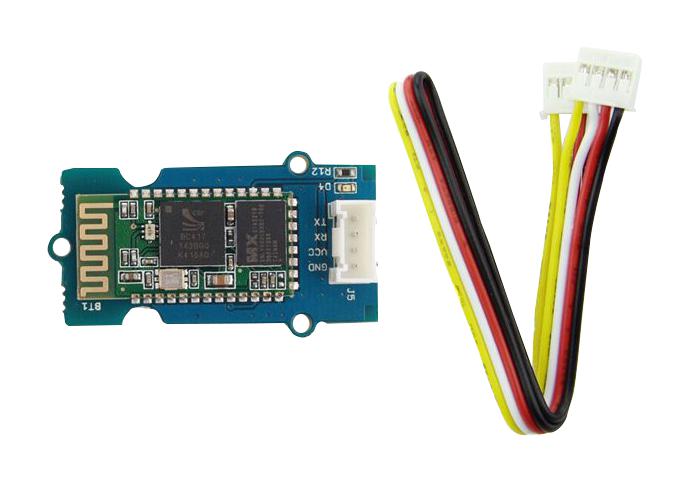

Grove - serial Bluetooth v3.0 x 1, Grove cable x 1.
Product details
| Accessory Type |
Serial Bluetooth Module |
| For Use With |
Arduino Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
113020008 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
