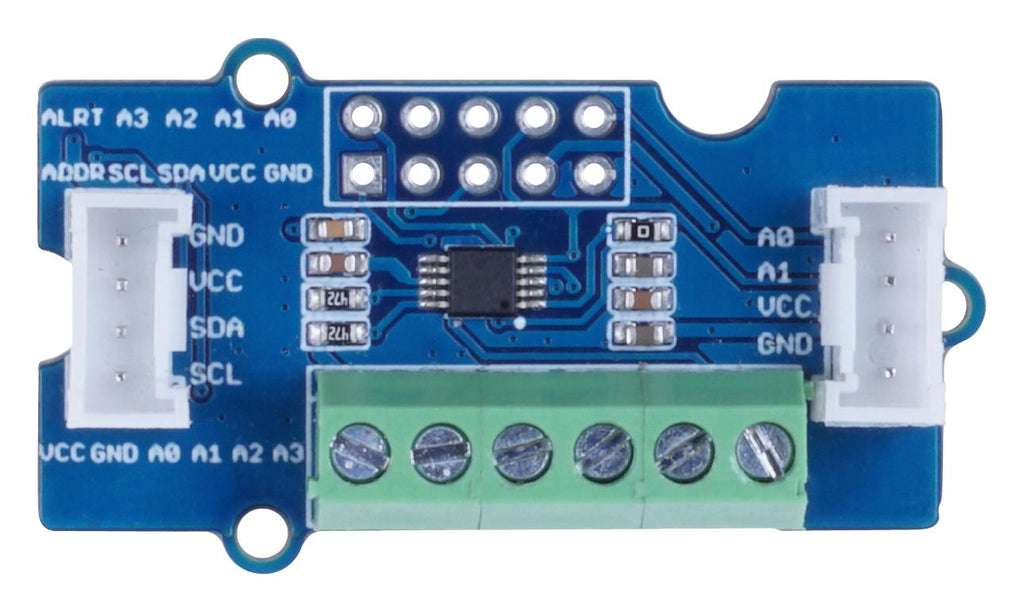

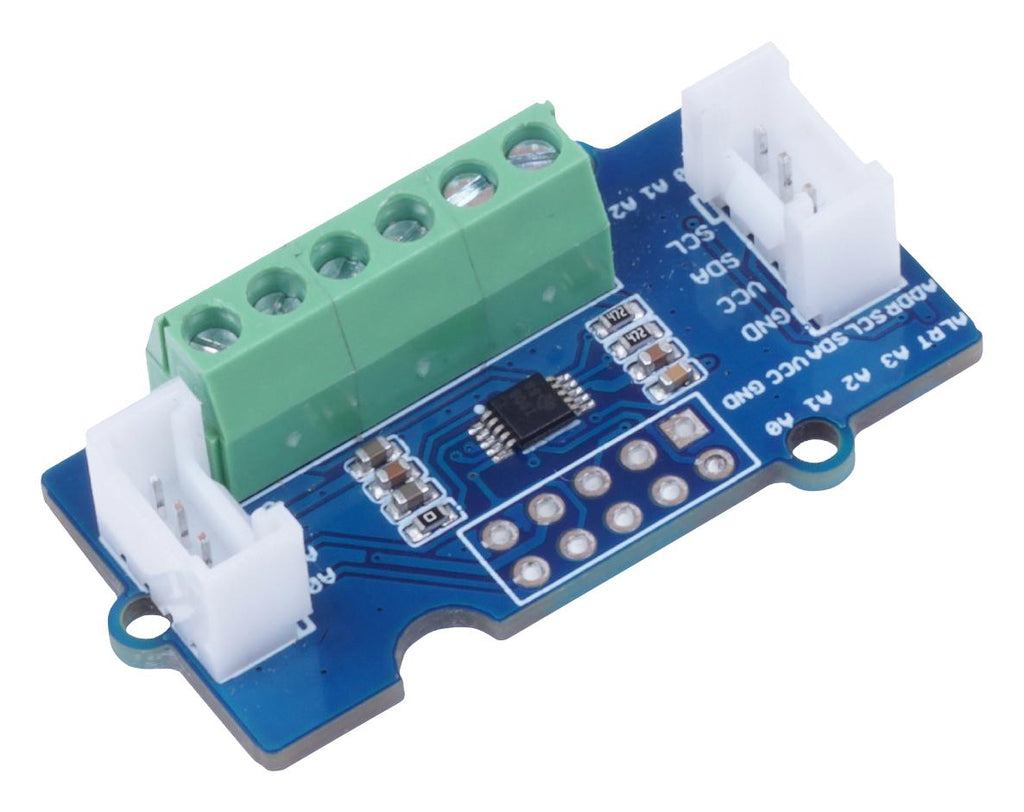

Grove - 4 Channel 16-bit ADC (ADS1115) is a 4-channel 16-bit high-resolution, low-power ADC chip with PGA (programmable gain amplifier) function. The PGA allows it to measure input voltages from ±256 mV to ±6.144 V, thus greatly expanding its application scenarios.
- Wide supply range from 2.0V to 5.5V, support 3.3/5V system
- Programmable data rate is 8 SPS to 860 SPS
- Internal Programmable Gain: x16 with Internal low-drift voltage reference and oscillator
- Built-in PGA is gain-adjustable and can be controlled by software
- 4 single-ended inputs or 2 differential Inputs
- Input voltage is 3.3V / 5V
Product details
| Accessory Type |
ADC W/ Programmable Amplifier Gain Board |
| For Use With |
Arduino, Raspberry Pi & ArduPy Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
109020041 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
