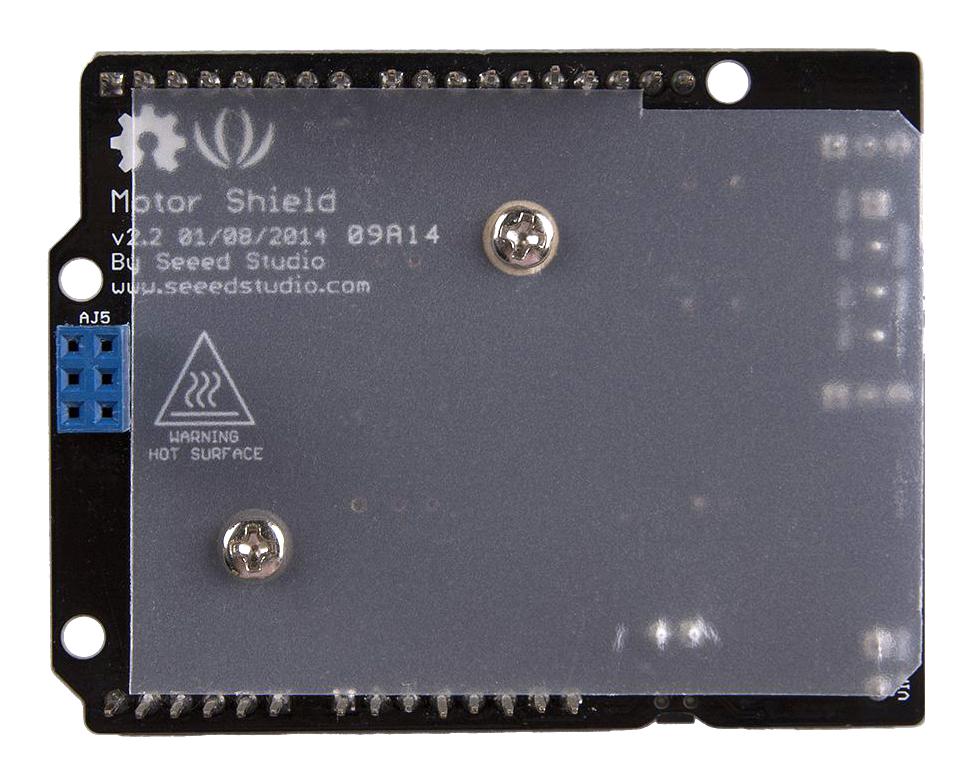

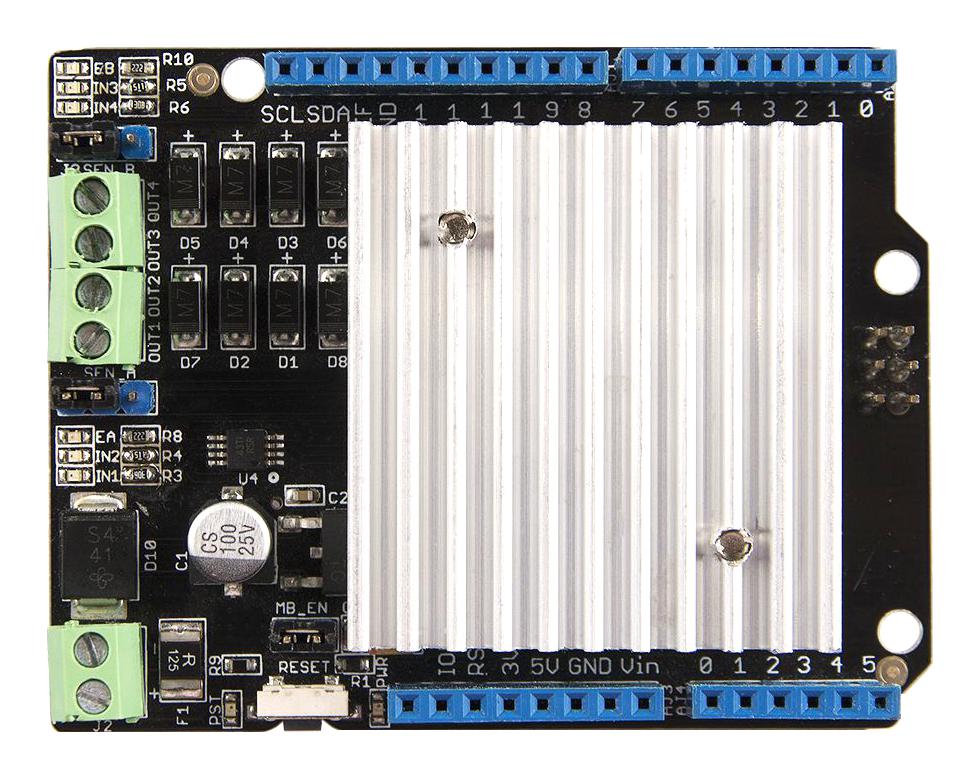

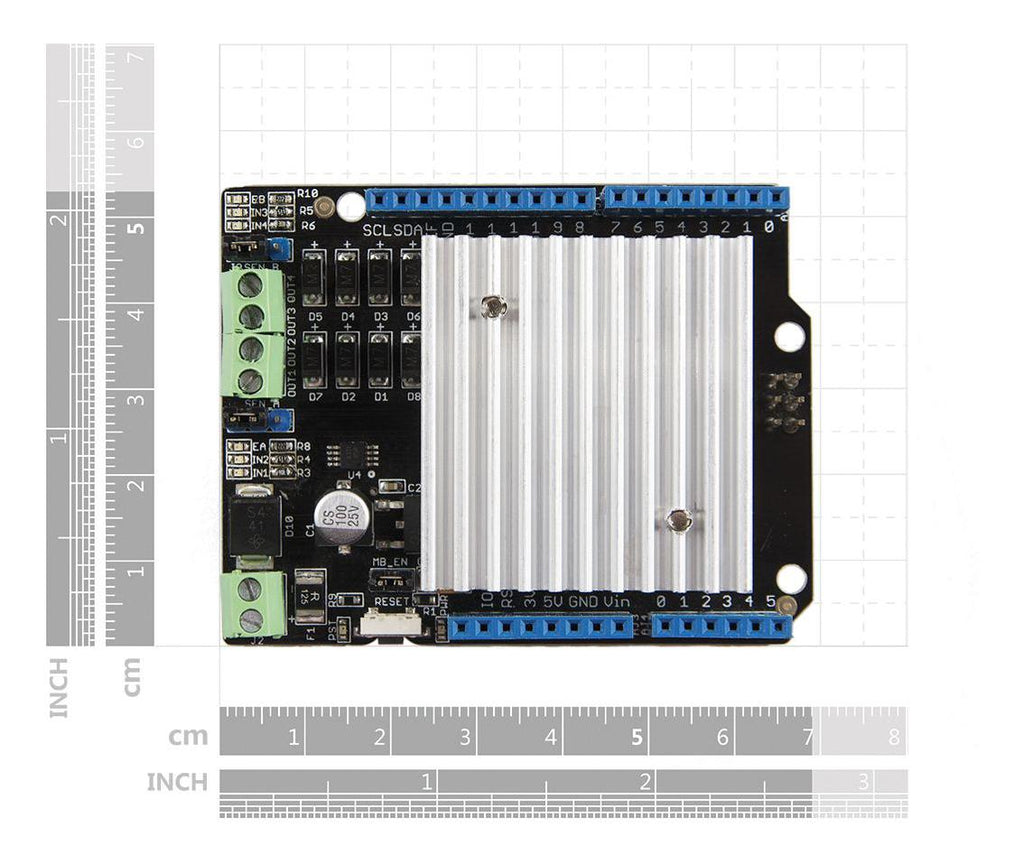

Motor Shield V2.0 for Arduino is a motor driver which can directly switch on many Arduino boards, such as Arduino Uno, Arduino Mega. It carries a Motor Driver chip L298 which is widely used in most motor drivers.
- Arduino/Seeeduino compatible
- Standardized shape design
- LED enable indicator
- LED rotation direction indicator
- Overcurrent turn-off
- Built around the dual full-bridge drive chip L298
- Overcurrent protection
Product details
| Silicon Manufacturer |
STMicroelectronics |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
L298 |
| Silicon Family Name |
- |
| For Use With |
Arduino/Seeeduino Board |
| Kit Contents |
Motor Shield V2.0 Driver Module L298 |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
105030001 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
