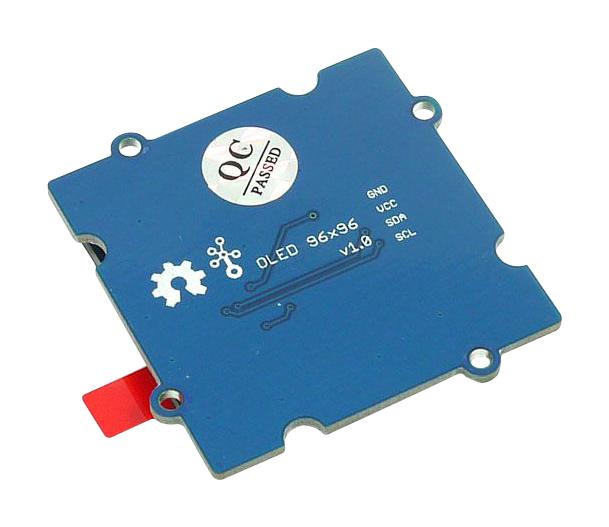

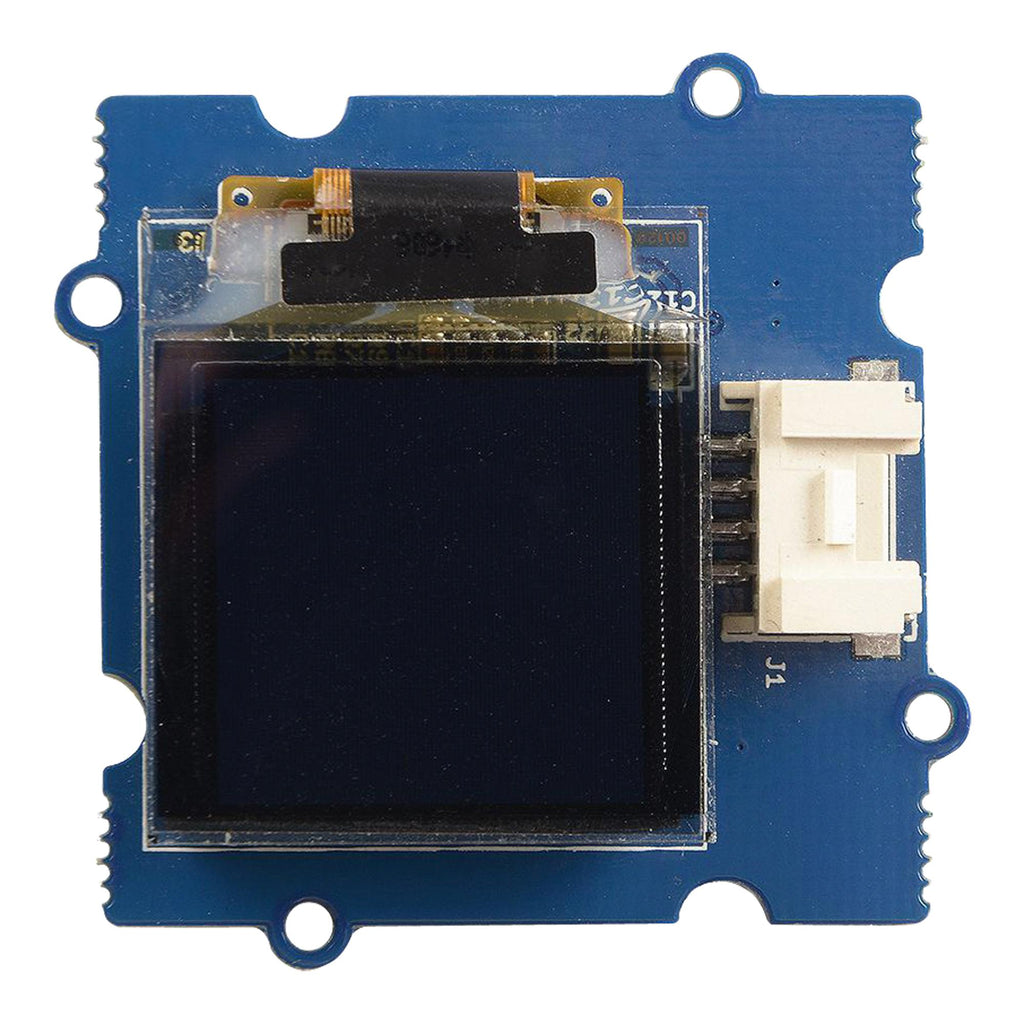

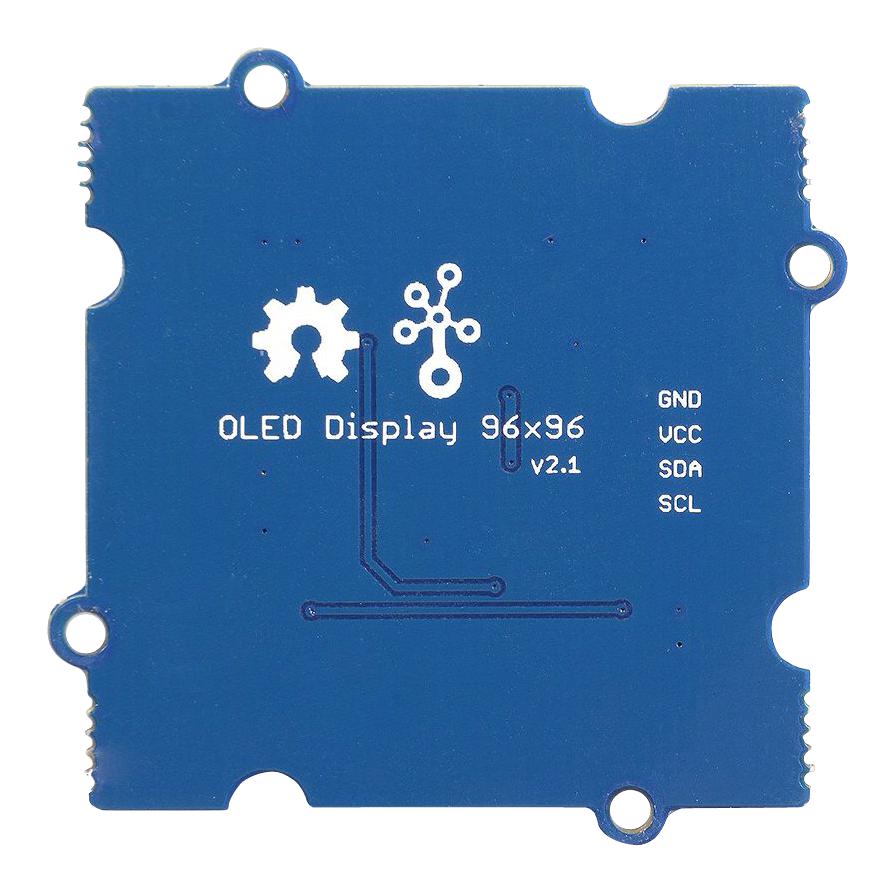

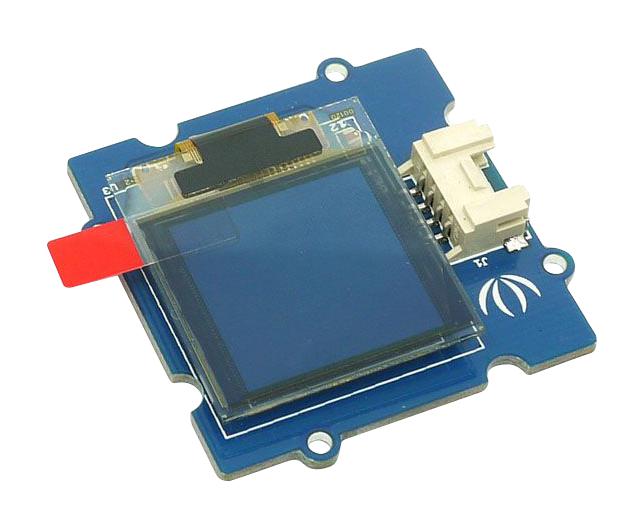

Grove - OLED 28.4mm is a 16 colour grayscale 96�96 dot matrix OLED display module with Grove compatible 4pin I2C interface. Grove - OLED 28.4mm is constructed with 96 x 96 dot matrix OLED module ([ LY120])and SSD1327 driver IC. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim / thin outline, wide viewing angle, wide temperature range, and low power consumption.
- Supports both normal and inverse colour display
- Supports continuous horizontal scrolling
- Grove compatible 4pin I2C connector
- Works with both 5V and 3.3V logic MCUs
- Wide range of operating temperature from -40°C to 70°C

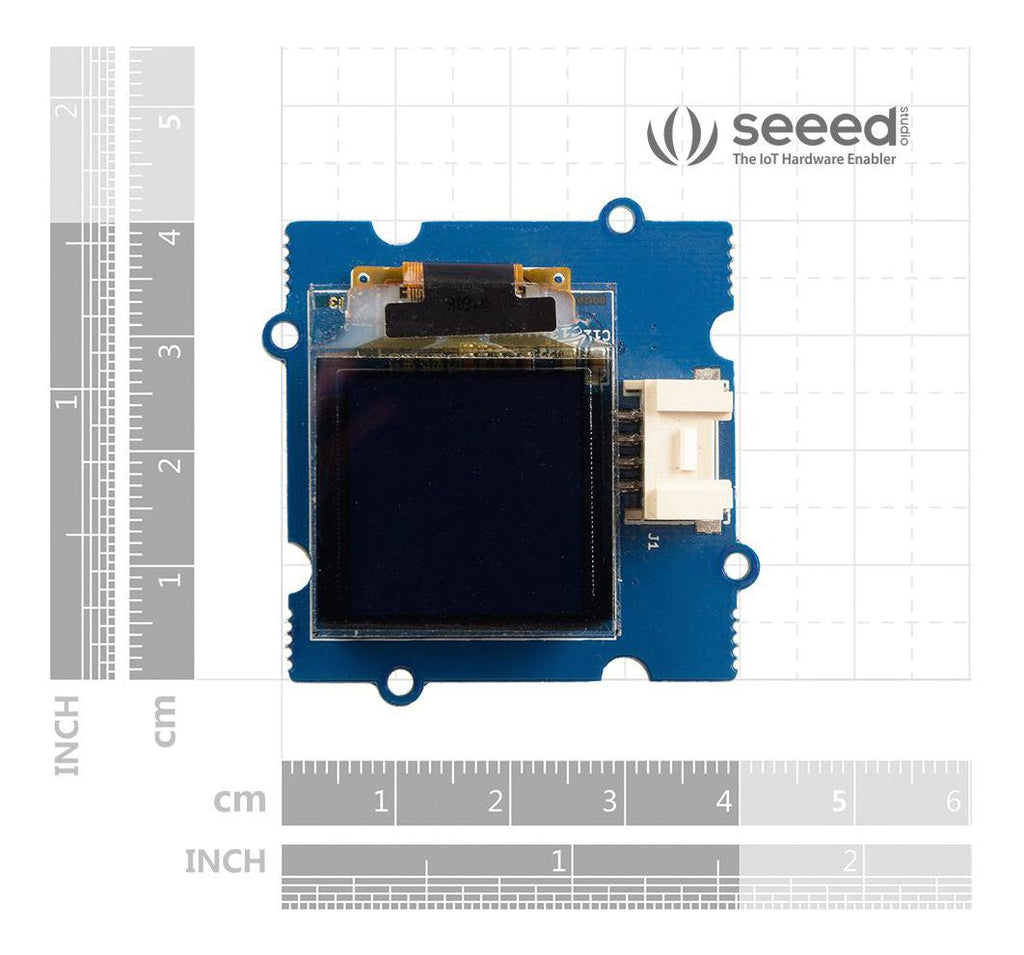

- Dimension is 40mm x 40mm x 10mm
Product details
| Accessory Type |
1.12" OLED Display Board |
| For Use With |
Arduino & Raspberry Pi Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
104030011 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
