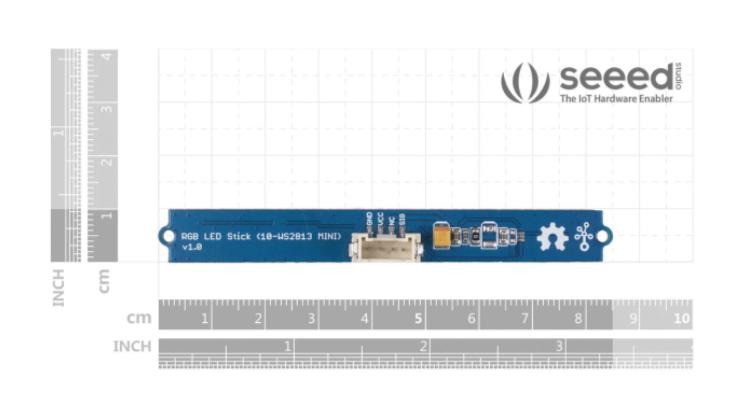

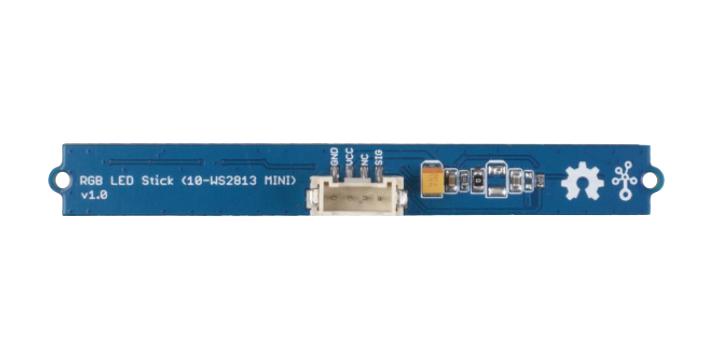

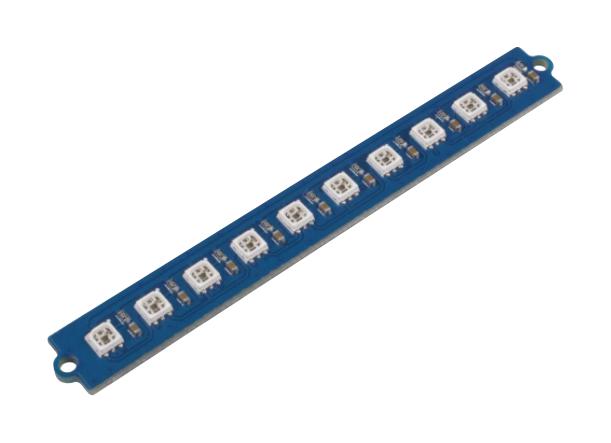

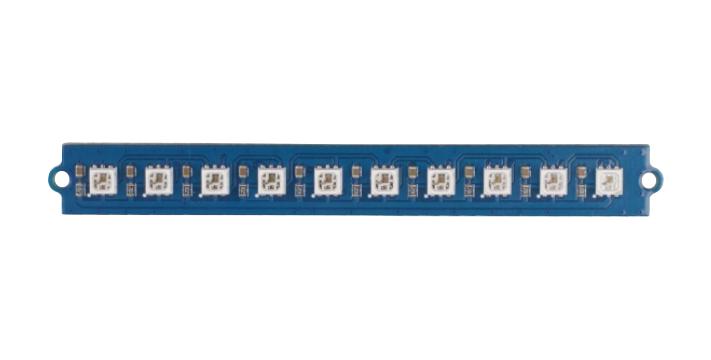

Grove - RGB LED Stick (10 - WS2813 Mini) is a 10 full-colour RGB LEDs on this stick It ahs only one signal pin you can control all 10 LEDs easily. All the LEDs are WS2813 Mini, which is an intelligent control and high cost-effective LED.
- Intelligent reverse-connection protection
- The grey levels of each pixel are of 256, which achieves "256*256*256=16777216" full-colour display
- The refresh frequency reaches to 2KHz
- Serial cascade interface, data receiving and decoding depend on just one signal line
- Dual-signal wires version, signal break-point continuous transmission
Contents
Grove - RGB LED stick (10 - WS2813 mini) x 1, Grove cable x 1.
Product details
| Accessory Type |
10x RGB LED Stick Board |
| For Use With |
Arduino Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
104020131 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
