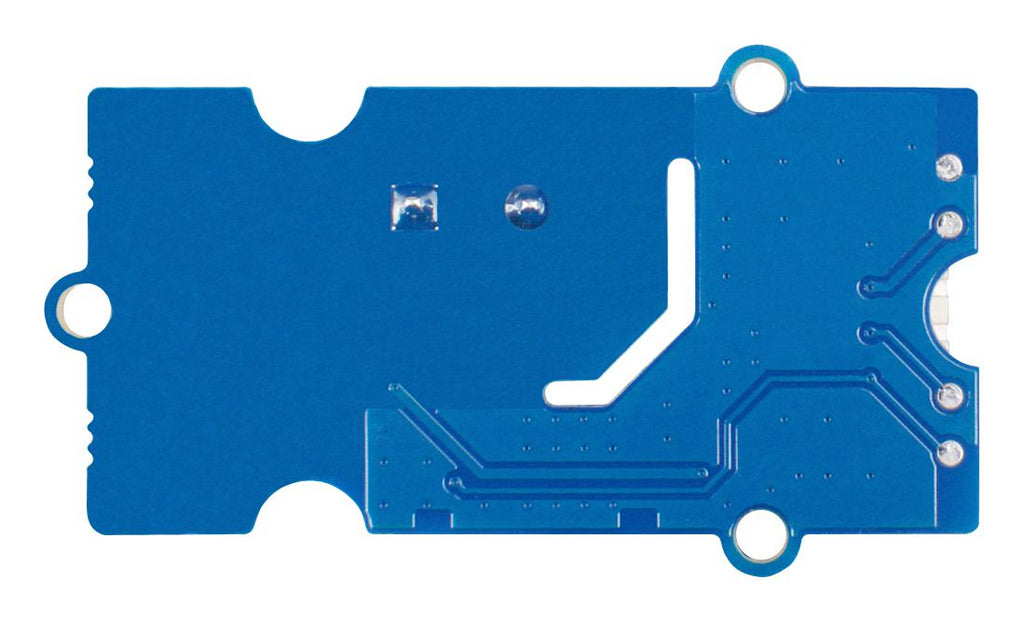

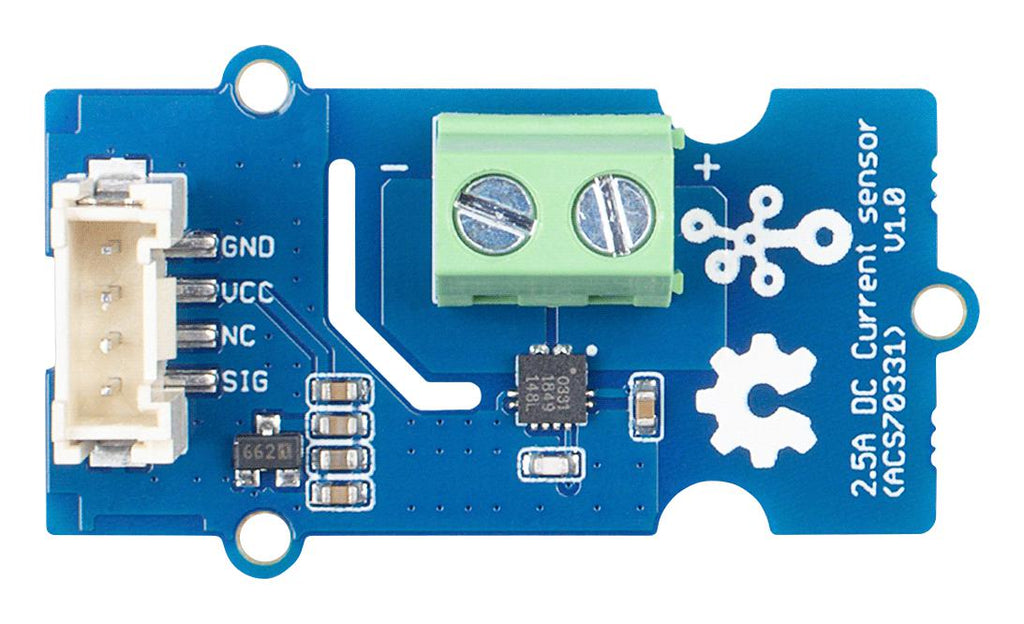

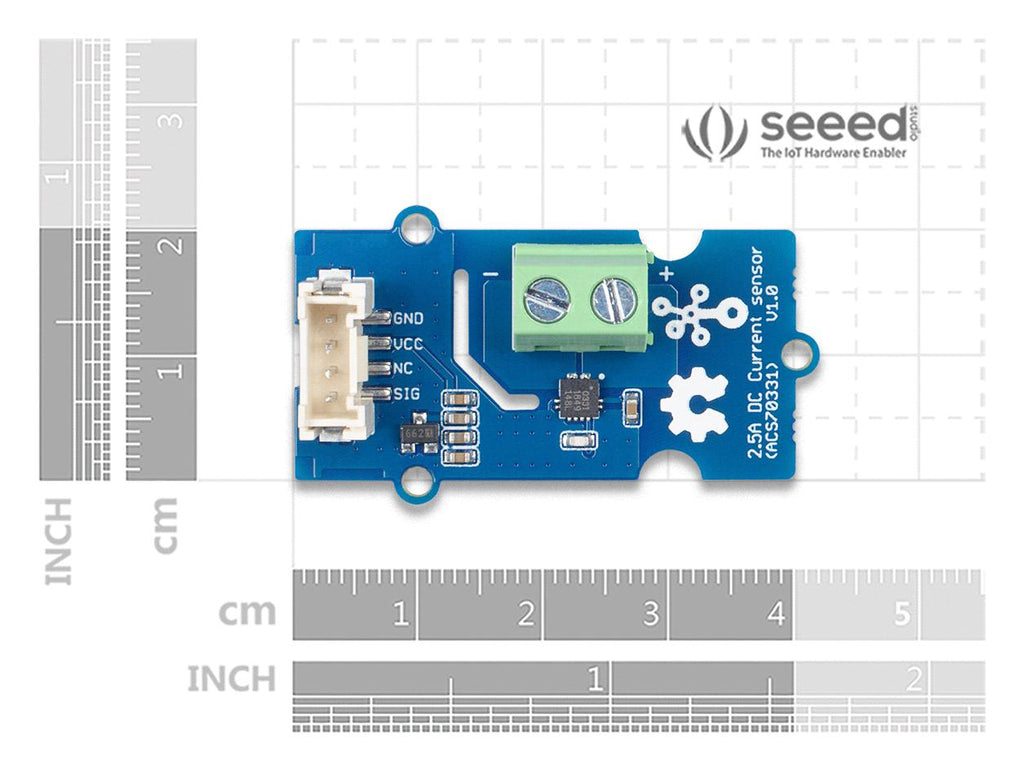

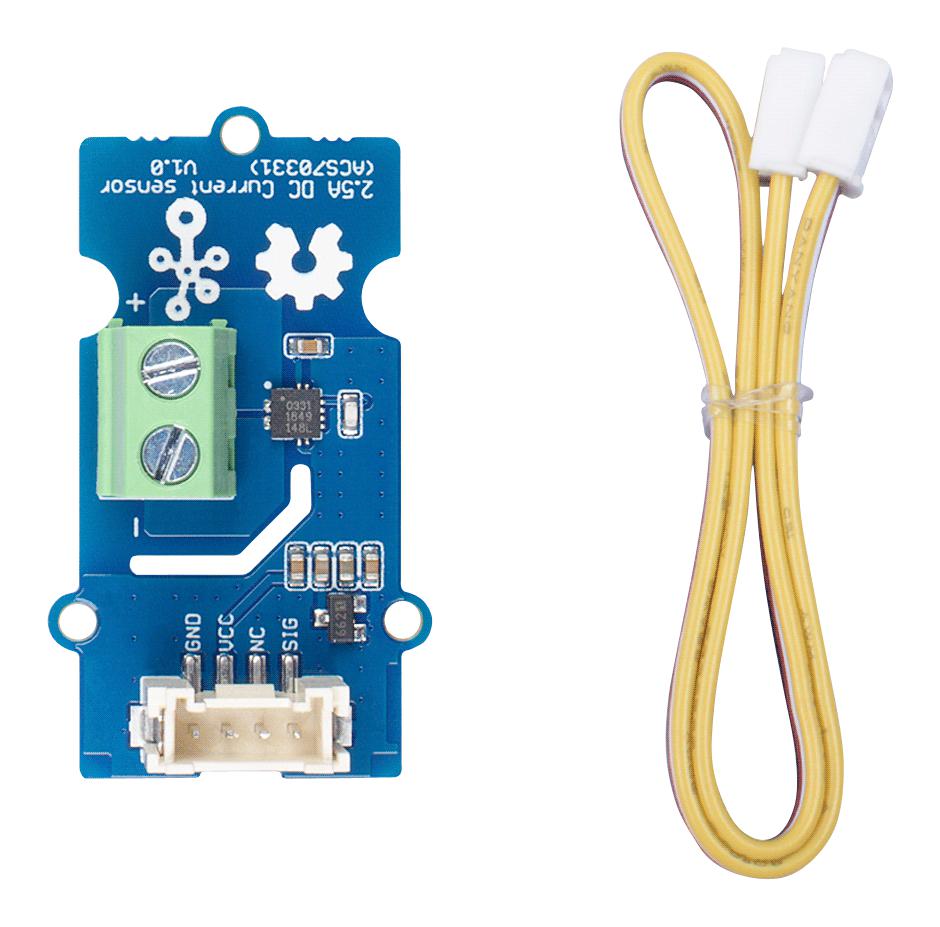

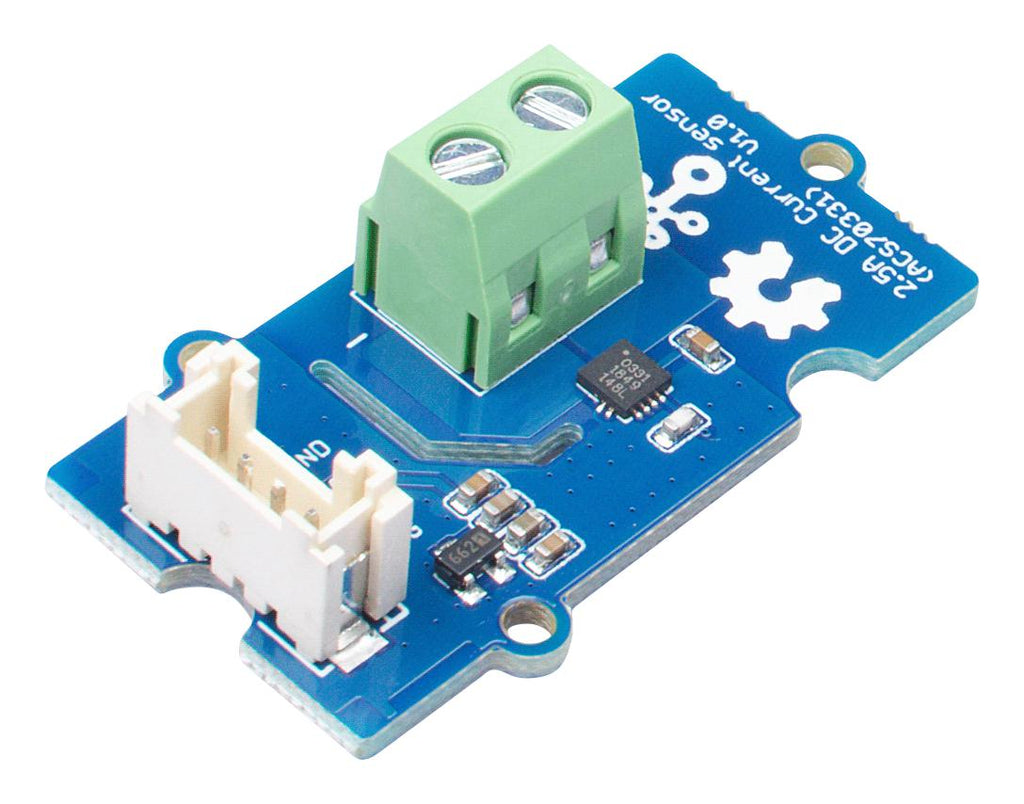

Grove - 2.5A DC Current Sensor(ACS70331) is a high precision DC current sensor based on ACS70331. It can measure the DC current up to 2.5A and has a base sensitivity of 800mV/A.
- 1MHz bandwidth with response time <550ns
- Low noise: 8 mA(rms) at 1MHz
- 1.1mohm primary conductor resistance results in low power loss
- High DC PSRR enables use with low accuracy power supplies or batteries (3 to 4.5 V operation)
Product details
| Accessory Type |
2.5A DC Current Sensor Board |
| For Use With |
Arduino & Raspberry Pi Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
101020652 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
