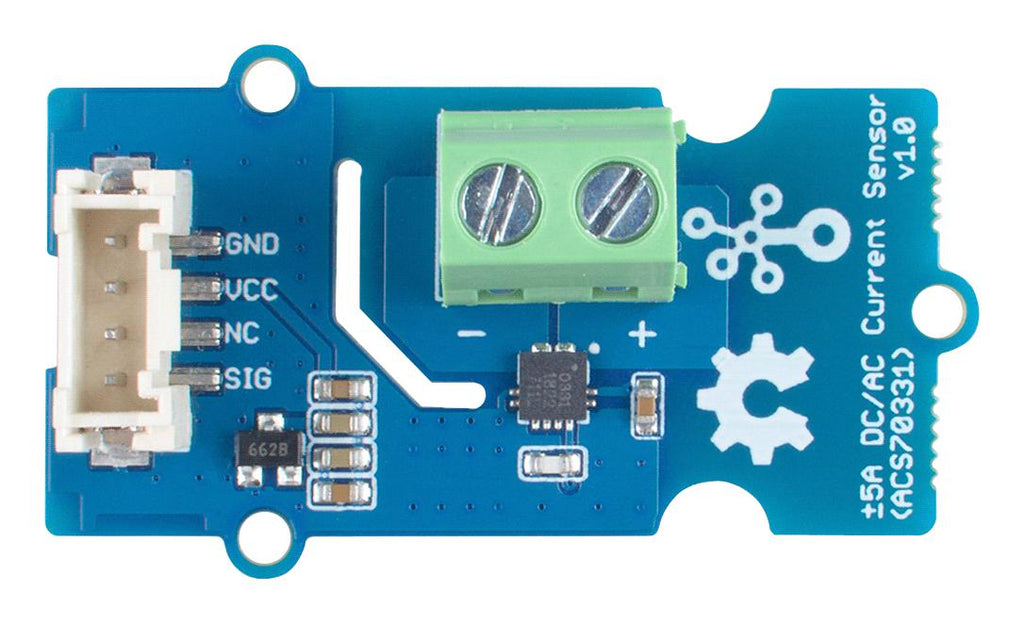

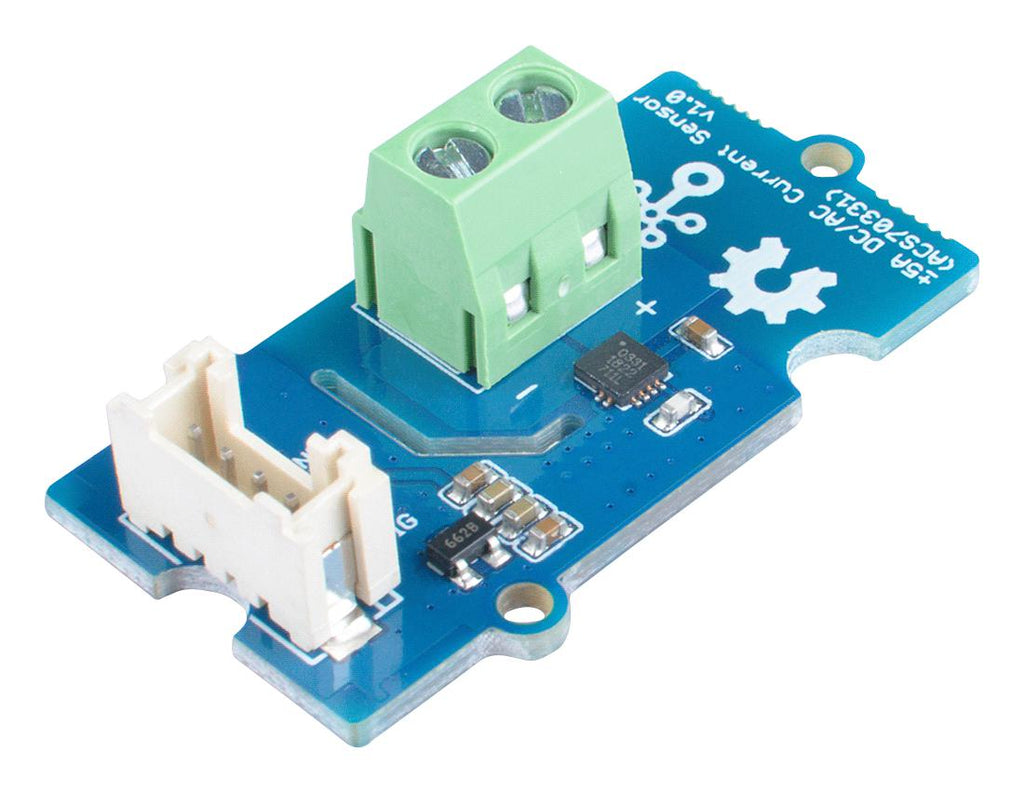

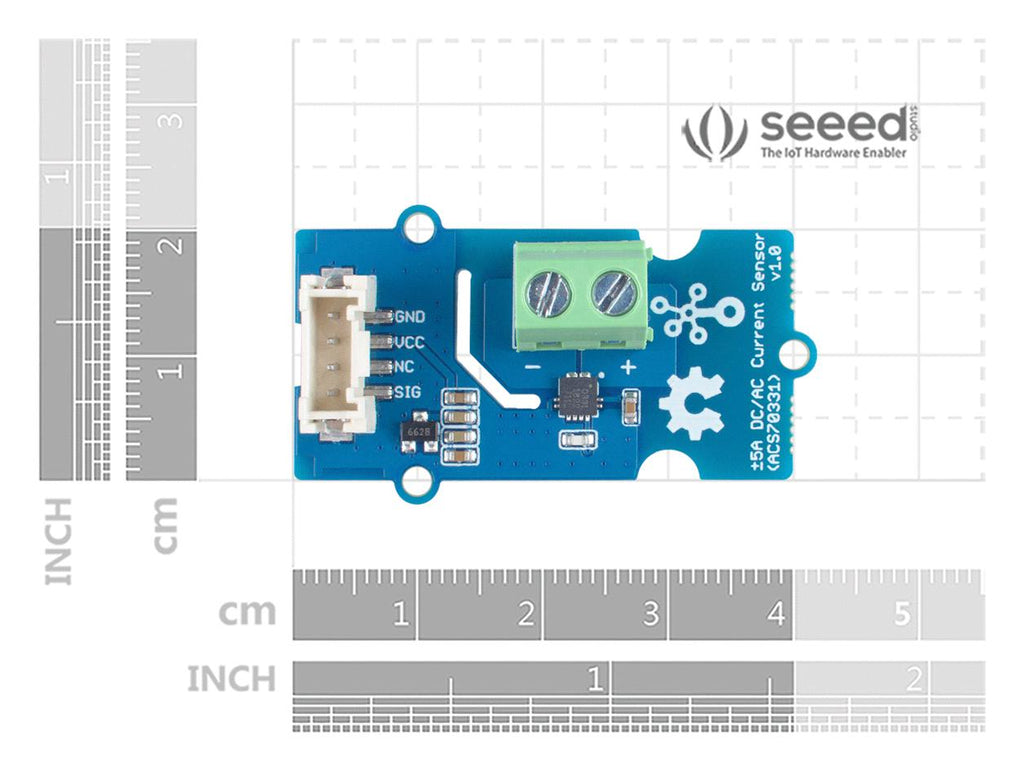

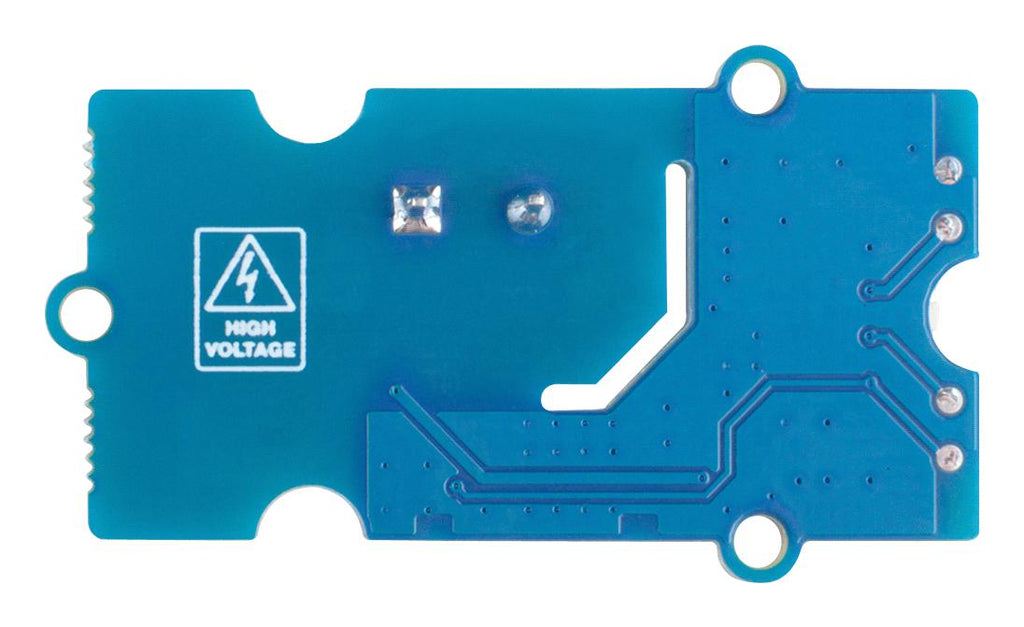

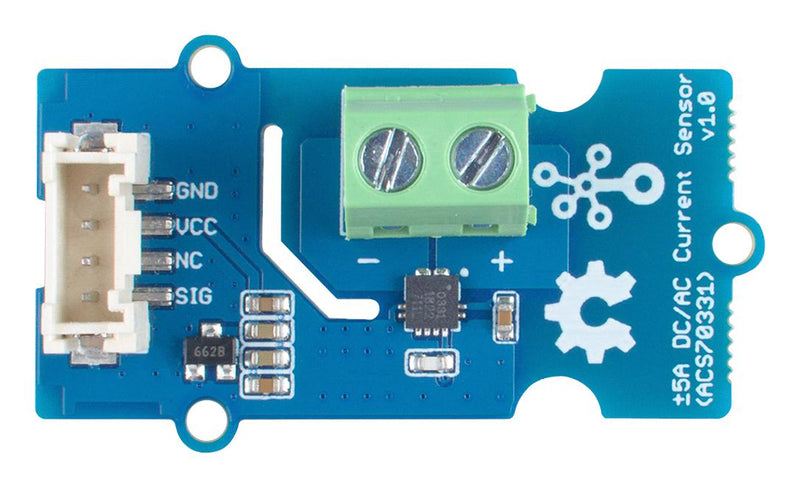

Grove - ±5A DC/AC Current Sensor (ACS70331) is a high precision DC/AC current sensor based on ACS70331. The ACS70331EESATR-005B3 is Allegro's high sensitivity, current sensor IC for <5 A current sensing applications. It incorporates giant magneto-resistive (GMR) technology that is 25 times more sensitive than traditional Hall-effect sensors to sense the magnetic field generated by the current flowing through the low resistance, integrated primary conductor.
- 1MHz bandwidth with response time <550ns
- Low noise: 8mA(rms) at 1MHz
- 1.1mohm primary conductor resistance results in low power loss
- High DC PSRR enables use with low accuracy power supplies or batteries (3 to 4.5V operation)
Product details
| Accessory Type |
5A DC/AC Current Sensor Board |
| For Use With |
Arduino & Raspberry Pi Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
101020615 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
