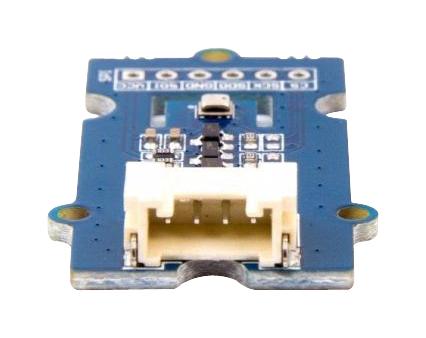

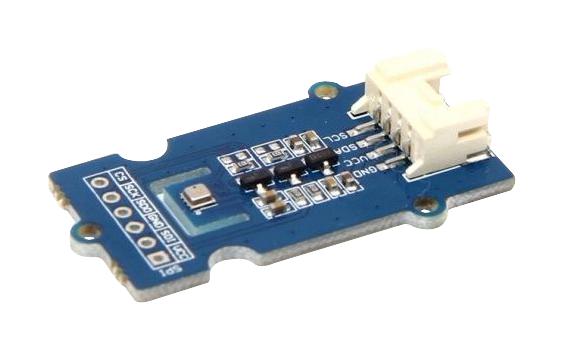

Grove - temperature, humidity and barometer sensor (BME280) provides a precise measurement of not only barometric pressure and temperature, but also the humidity in the environment. The air pressure can be measured in a range from 300 hPa to 1100hPa with ±1.0 hPa accuracy, while the sensor works perfectly for temperatures between - 40°C and 85°C with an accuracy of ±1°C. As for the humidity, you can get a humidity value with an error less than 3%.
- Easy-to-use grove compatible interface

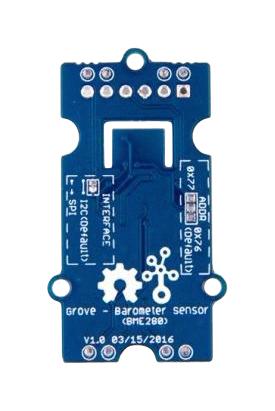

- Supports both I2C and SPI communication
- Can be used as an altimeter with the accuracy of ±1 meter
- Dimension is 40mm x 20mm x 15mm
- Supply voltage of 5V or 3.3V
Contents

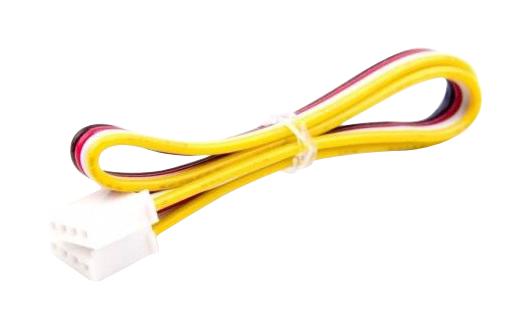

1 x grove - temp&humi&barometer sensor (BME280), 1 x grove - cable.
Product details
| Silicon Manufacturer |
Bosch |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
BME280 |
| Silicon Family Name |
- |
| For Use With |
Arduino Board |
| Kit Contents |
Grove - Temperature & Humidity & Barometer Sensor Board BME280, Grove - Cable |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
101020193 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
