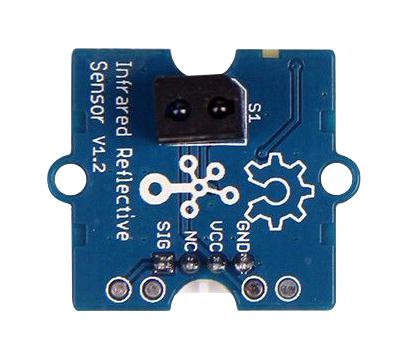

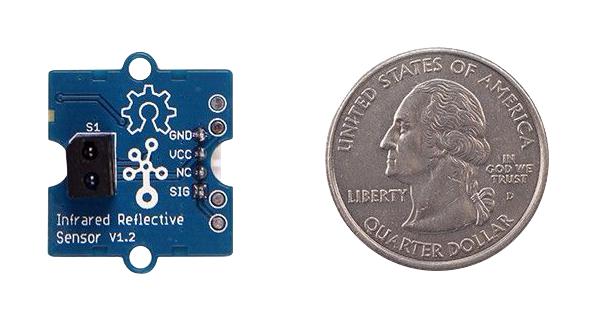

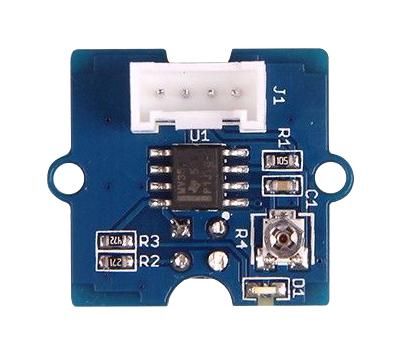

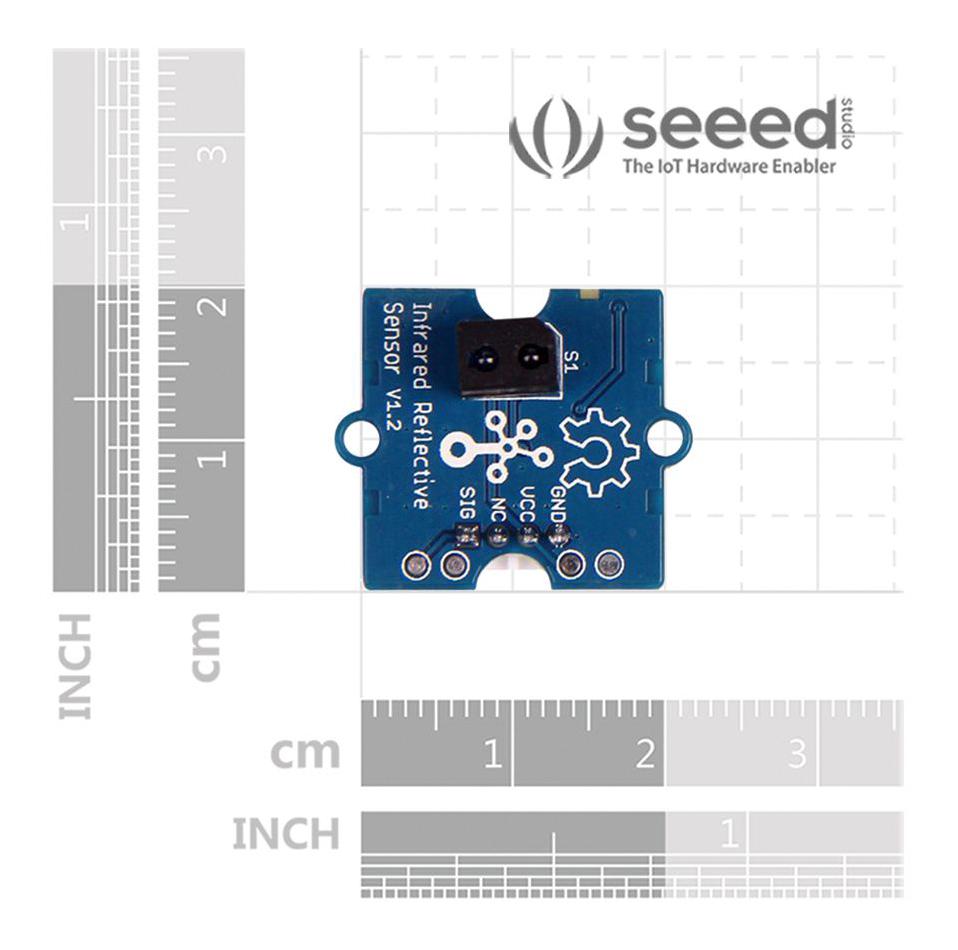

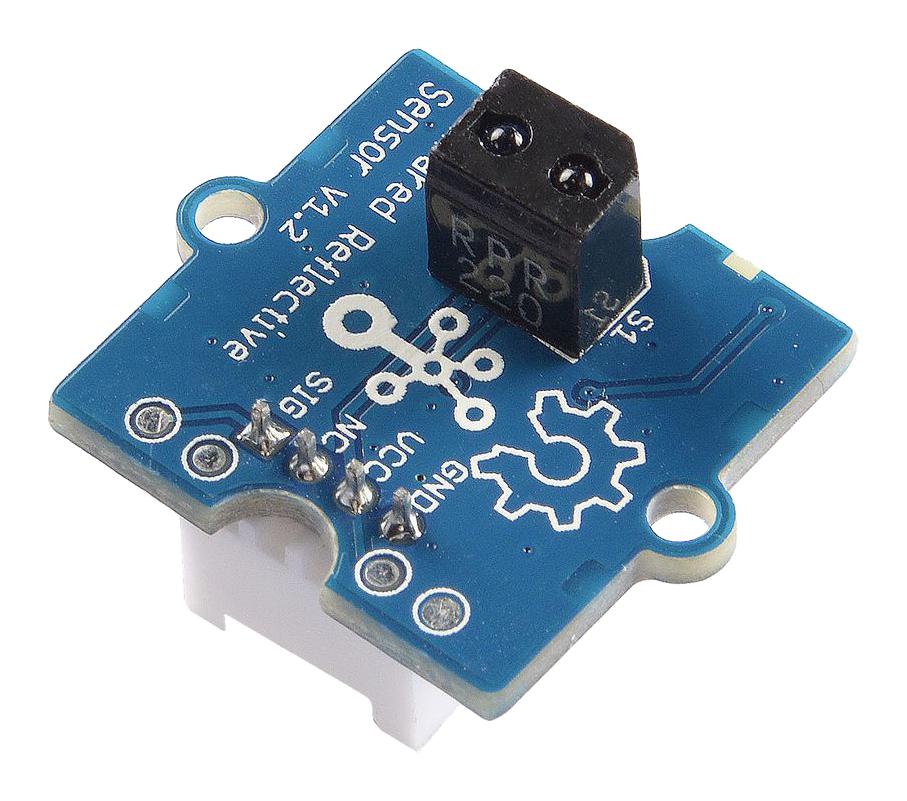

Grove - Infrared Reflective Sensor v1.2 can be used for the detection of proximity and colour of objects. The reflective photosensor - RPR-220 used in this module consists of an infrared light emitting diode and a high -sensitivity phototransistor. This sensor is widely used in applications such as line-following robots, rotary speed detection and auto-data logging on utility meters or other situations where colour or distance contrast is sharp.
- Panel-mounting grove interface
- Built-in indicator LED
- Threshold adjustable via potentiometer
- Reflective Photosensor: RPR-220
- Effective working distance: 4-15mm
- Minimum detectable width for monochrome lines: 10mm
- 4 pin buckled grove interface
Contents
Grove - infrared reflective sensor x 1, Grove cable x 1.
Product details
| Accessory Type |
Infrared Reflective Sensor Board |
| For Use With |
Arduino Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
101020174 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
