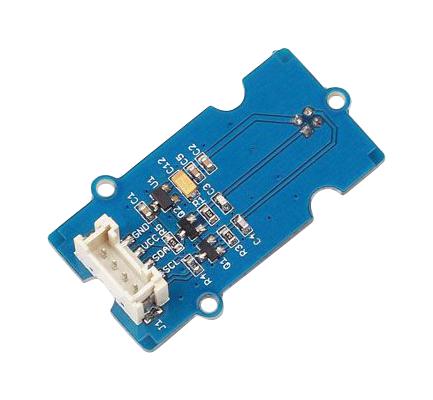

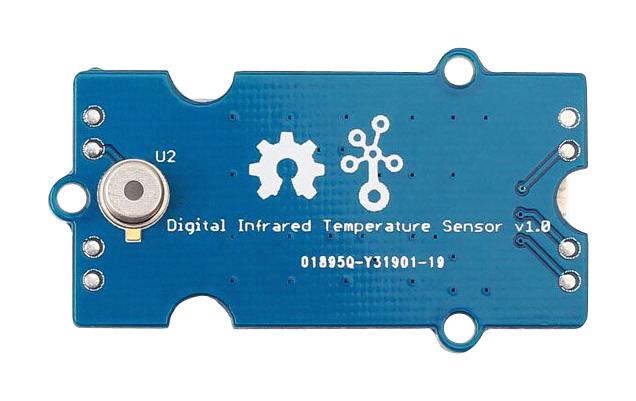

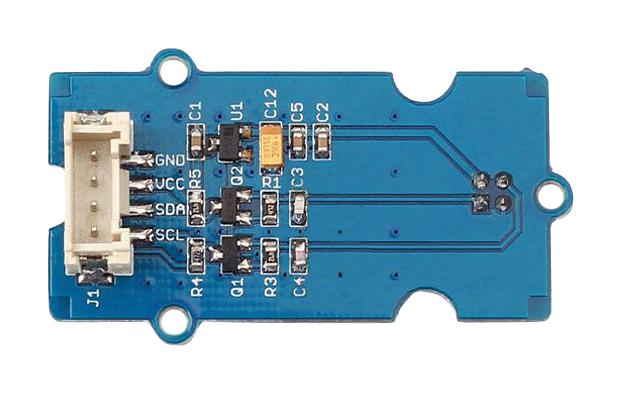

Grove - MLX90615 Digital Infrared Temperature Sensor is a non-contact temperature measurement module which bases on MLX90615. Both the IR sensitive thermopile detector chip and the signal conditioning chip are integrated in the same package. This module communicates with Arduino using SMBus, up to 127 sensors can be read via common 2 wires. Thanks to the module's low noise amplifier, 16-bit ADC and powerful DSP unit, it can achieved a high accuracy of 1°C over wide temperature rage and a high measurement resolution of 0.02°C.
- Temperature detecting range -40 to 85°C for sensor temperature, -40 to 115°C for object temperature
- Measurement resolution of 0.02°C
- Embedded emissivity compensation
- Power saving mode
- Dimension is 130mm x 90mm x 9mm
Contents
Grove - digital infrared temperature sensor x 1, Grove cable x 1.
Product details
| Accessory Type |
Digital Infrared Temperature Sensor Board |
| For Use With |
Arduino Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
101020077 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
