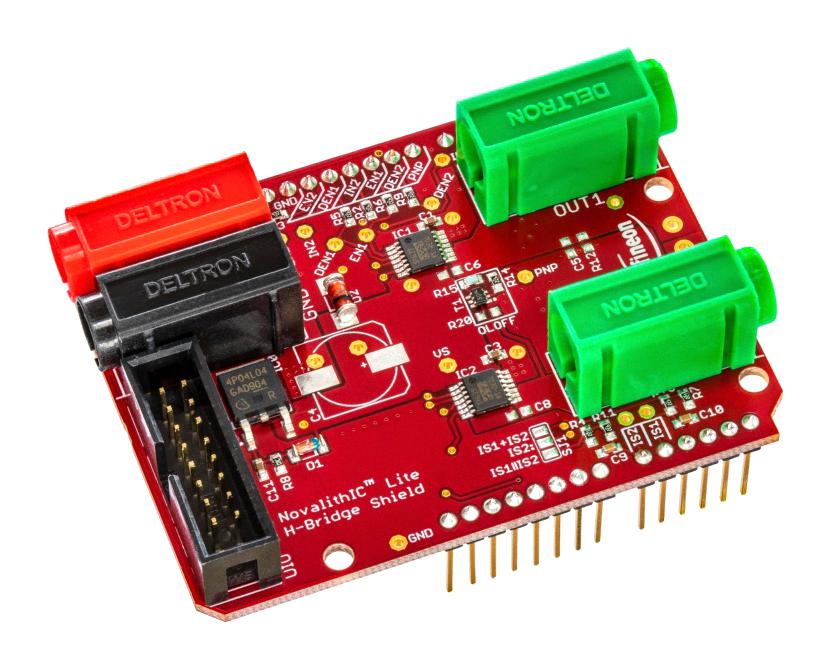

Motor control shield with BTN7030-1EPA is designed to drive DC motors in combination with an Arduino compatible baseboard. The shield can be controlled with the general logic IO-ports of a microcontroller.
- Arduino Uno R3 or XMC1100 Boot Kit can control 2 BTN7030-1EPA devices via general IO pins
- 6 to 18V nominal input voltage (max. 3.8 to 28 V)
- Typical nominal current 7A
- Drives either one brushed bi-directional DC motor or two uni-directional DC motors
- Capable of PWM up to 2 kHz
- Status flag diagnosis with current sense capability
- Current sense accuracy of 5%
- Protection against overtemperature, overcurrent, cross current, undervoltage
- Voltage clamping
- OFF state diagnosis (missing load and short circuit to battery or ground)
Product details
| Silicon Manufacturer |
Infineon |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
BTN7030-1EPA |
| Silicon Family Name |
- |
| For Use With |
Arduino Boards |
| Kit Contents |
Evaluation Board BTN7030-1EPA |
| Product Range |
- |
Other details
| Brand |
INFINEON |
| Part Number |
DCSHIELDBTN7030TOBO1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
