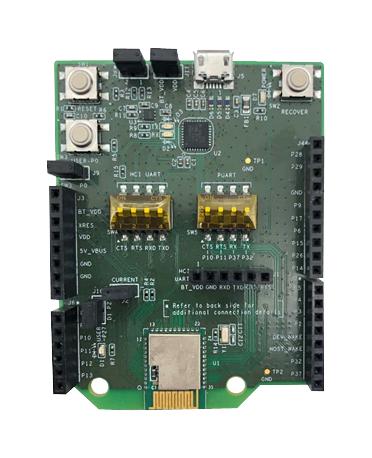

CYBT-243053-EVAL is an AIROC� CYBT-243053-02 Bluetooth® & Bluetooth® LE module evaluation kit. It enables evaluation, prototyping, and development of a wide array of IoT applications using the AIROC� CYBT-243053-02 module, which is based on CYW20820 SoC. The AIROC� CYW20820 Bluetooth® & Bluetooth® LE system on chip provides reliable Bluetooth® connectivity, core spec compliant to 5.2, along with high-performance compute capability integrating an Arm® Cortex®-M4 processor with floating point unit. It is a highly integrated device integrating multiple serial interfaces, PWMs, and more. This eval kit includes an Infineon in-house AIROC� Bluetooth® Module hosting the AIROC� CYW20820 that is globally certified and has PCB antenna integrated, rapidly reducing time-to-market. The AIROC� CYBT-243053-EVAL is supported in the AIROC� Bluetooth® SDK within ModusToolbox� software and tools with copious code examples and documentation enablement for BLE data transfer, Bluetooth® Mesh use cases.
- Can support various Bluetooth protocols including GAP, GATT, SMP, RFCOMM, SDP and BLE Mesh protocol
- Eval board with integrated serial flash
- Input/output interfaces for communications and programming
- Various sensors like the light sensor, thermistor and LEDs
- External headers for debugging and connectivity
- Interfaces to USB power or to a coin cell
- PCB Antenna and PA/LNA
- 24MHz crystal oscillator
Contents
1 x module Arduino evaluation board (CYBT-243053-EVAL) with on-board AIROC™ Module (CYBT-243053-02), 1 X USB cable for USB - UART programming, Convenient user buttons, Bluetooth and Bluetooth module.
Product details
| Silicon Manufacturer |
Cypress |
| No. of Bits |
- |
| Silicon Family Name |
ARM |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M4F |
| Silicon Core Number |
CYBT-243053-02 |
| Kit Contents |
1 x Module Arduino Evaluation Board, USB Cable, Convenient User Button, Bluetooth & Bluetooth Module |
| Product Range |
- |
Other details
| Brand |
INFINEON |
| Part Number |
CYBT-243053-EVAL |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
