Description

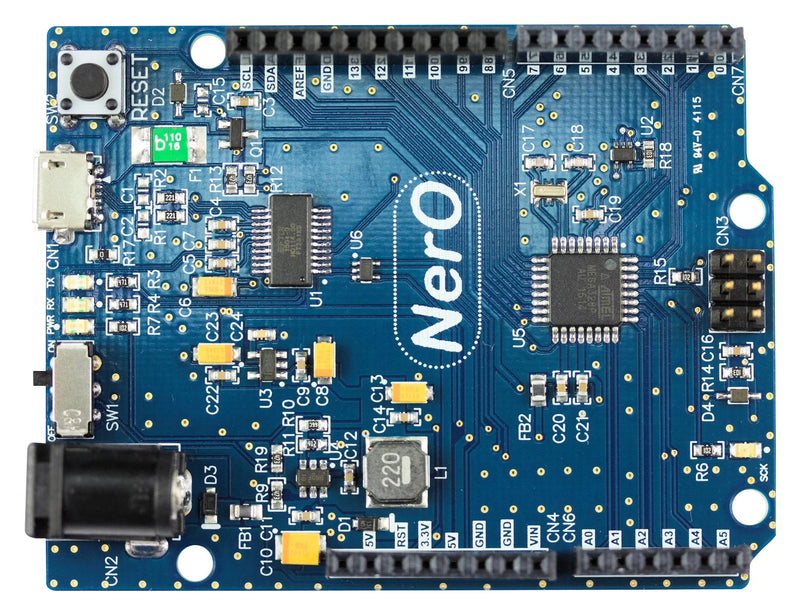

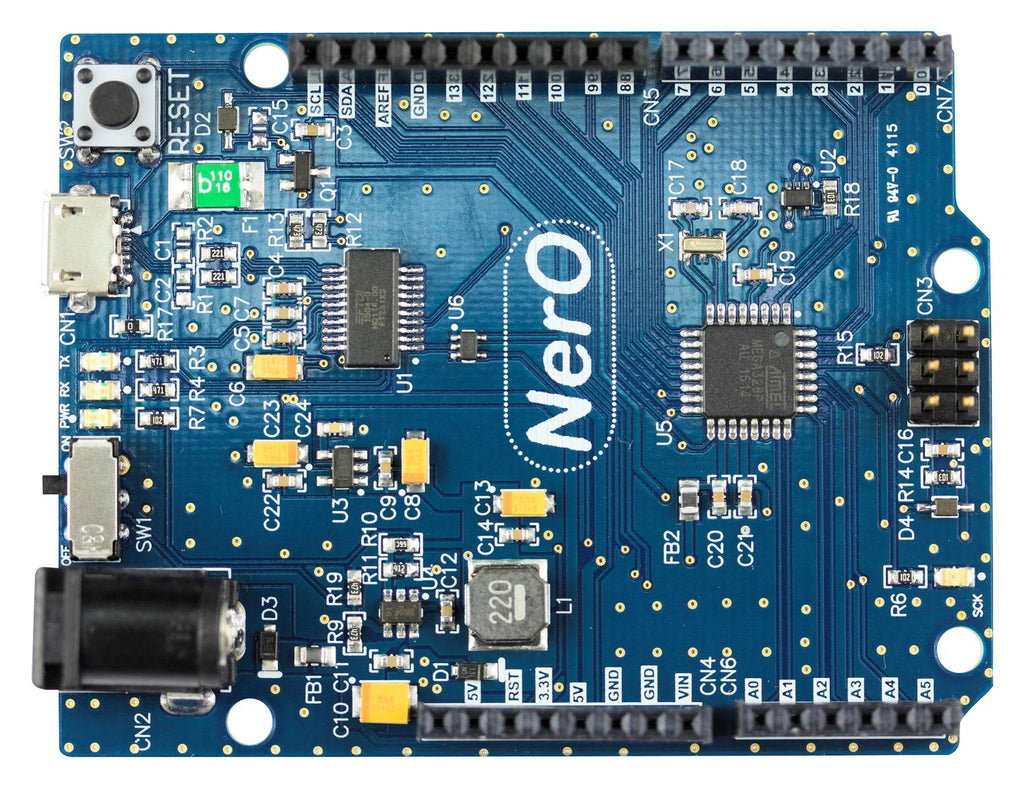

The NERO-LP1 is a Nero module with long shield pin. This Nero module is a reference design for an energy efficient Arduino UNO compatible board based on the ATMEGA328 with the FTDI FT231X USB- UART delivers 5V at a full 1A without overheating.
- NerO-LP1 with 2.54mm pitch female header with long shield pins
- 16MHz ATmega328 32-pin TQFP package microcontroller and FTDI FT231XS USB UART interface
- UNO R3 form factor
- 14 digital I/O pins (6 PWM outputs)
- 6 analogue inputs
- A micro-B USB connects to PC connect or provides power supply over USB for board
- VIN input voltage range from 7V to 20V, hardware reset button provided
- CE and FCC certified
- Optiboot bootloader preloaded, Arduino SW (IDE) & UNO library compatible, Arduino shield compatible
Embedded Design & Development
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | BRIDGETEK |
| Part Number | NERO-LP1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
