| ₹ 21774.3 includes GST and import duties. | |
| B2B customers can avail ₹ 3320.58 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

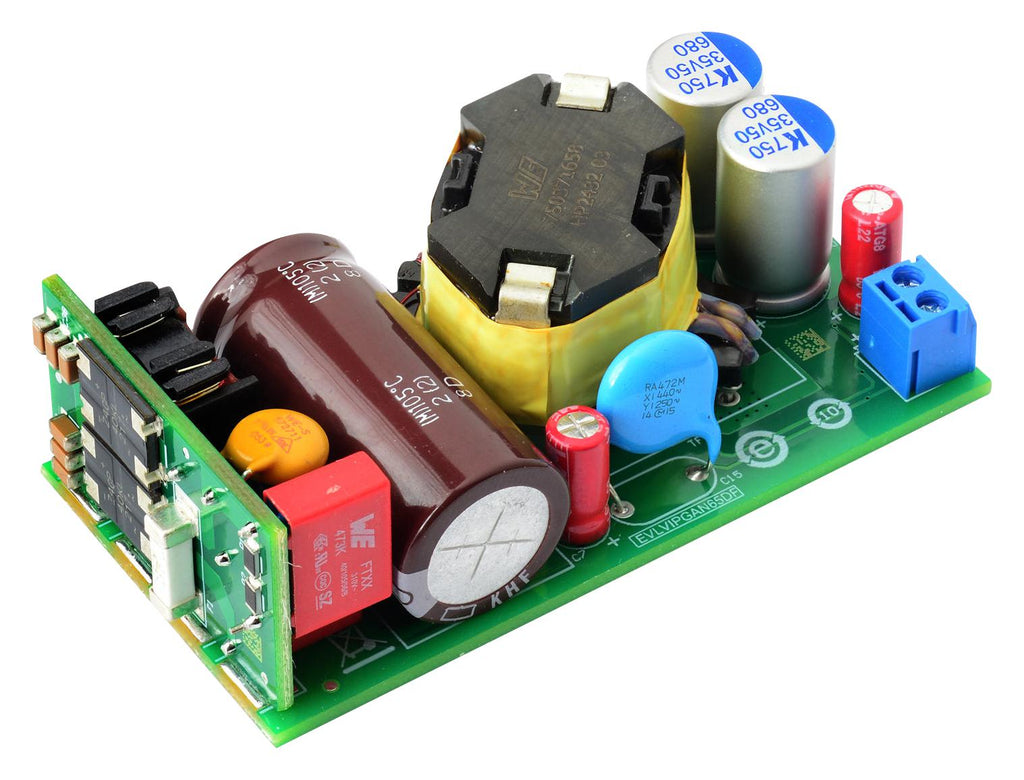

EVLVIPGAN65DF is a 24V / 65W reference design set in isolated QR flyback topology, based on the VIPERGAN65D high-voltage converter. This controller combines, in the same package, a low-voltage PWM controller chip with a 700V GaN HEMT and integrates: a complete set of features which help design high-efficiency and low-standby consumption SMPSs with a short bill of materials, for cost-effective and fast design: ZVS quasi-resonant operation with dynamic blanking time; feedforward compensation; valley synchronization adjustment; low quiescent current; advanced light load management. A complete set of protections that considerably increases end-product�s safety and reliability: output overvoltage protection (OVP), output overload/short-circuit protection (OLP), brown-in/out protection, input overvoltage protection (iOVP). Suitable for high-efficiency auxiliary power supply for appliances, industrial and consumers applications.
- Input voltage range: universal AC from 90 to 264V AC with 47Hz to 63Hz frequency
- 65W maximum output power
- 24V DC output voltage
- 2.7A output current
- Peak efficiency is > 93%
Product details
Other details
| Brand | STMICROELECTRONICS |
| Part Number | EVLVIPGAN65DF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 21338.81 |
| 3-5 | ₹ 21121.07 |
| 5-10 | ₹ 20685.59 |
| 10+ | ₹ 20250.1 |
Bulk discount will be automatically applied during checkout based on quantity.
