Description
Product Overview

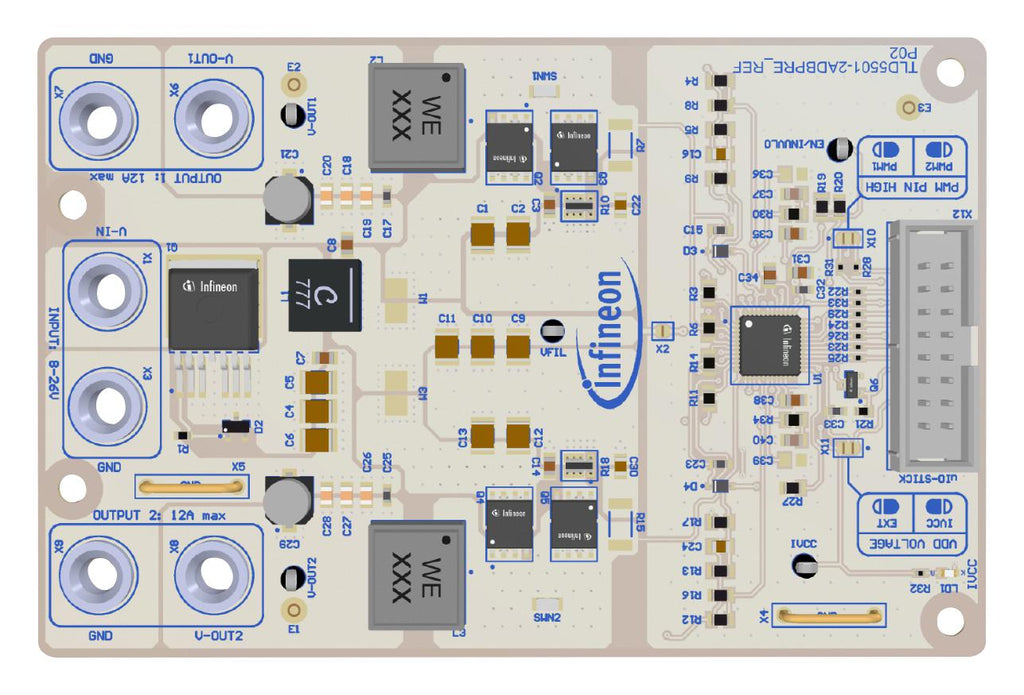

TLD55012ADBPREREFTOBO1 is a dual channel voltage pre-regulator reference board. This is composed of two independent synchronous buck converters configured as constant voltage power supply. It can be set for a constant voltage output up to 5V and a current up to 12A per channel. This board can be also controlled via SPI by an Infineon ?IO-stick and a specific GUI for PC. Suitable for ADB applications and support on power supplies design for ADB applications.
- High output current up to 2 x 12A continuous (2 x 25A peak)
- Fully controlled via SPI protocol by a dedicated GUI (Graphic User Interface)
- Excellent efficiency performances higher than 95%
- Working temperature up to 85°C
- Integrated EMI filter
- Integrated reverse-polarity protection
- Possibility to work in stand-alone mode (without SPI control) with 5 V fixed output
- Compact and versatile, easy to use, no need for filtering
- It can be tested directly on a real automotive application up to 85°C
- Fully protected against reverse-polarity
Product details
Other details
| Brand | INFINEON |
| Part Number | TLD55012ADBPREREFTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
