Description
Product Overview

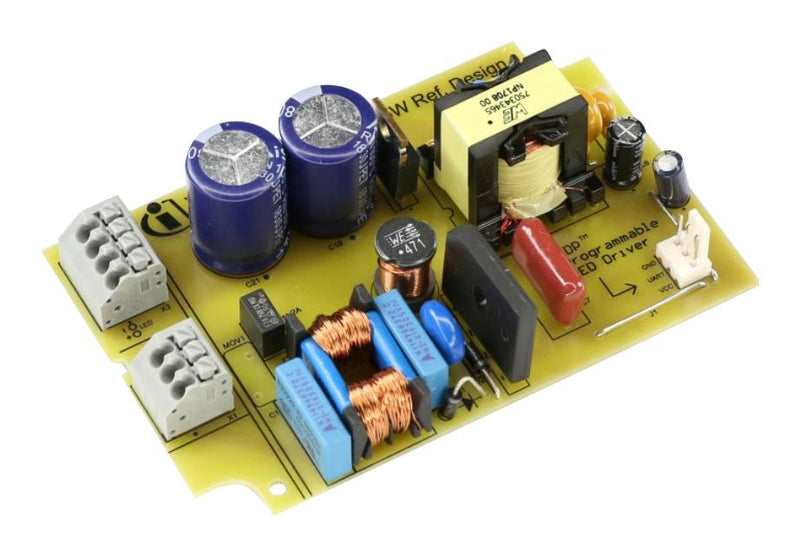

REFXDPL8210U35WTOBO1 is a 35W reference board for LED driver with isolated 0 to 10V dimming and dim-to-off operation. This reference board operates as a constant current board with XDP� digital power controller IC XDPL8210 for LED drivers. The board features analogue dimming input with CDM10VD device. It has excellent power quality over wide load range. With the REF-XDPL8210-U35W output current and output power are configurable by parameters via the XDP� interface board (IF-BOARD.DP-GEN2) and .dp Vision software. It provides protections for all failure modes.
- Wide input range from 90VAC to 305VAC
- Output current up to 830mA
- Dimming: 10mA or <1% of nominal output current
- Low stand-by power is less than 150mW
- PF is greater than 0.98 at 230V/50Hz for nominal load
- THD is less than 8% at 230V/50Hz for nominal load
- 0-10V dimming down to 1% of nominal output
- Connector for XDP� interface board for parameter configuration
- Small form factor of 98mm x 63mm
Product details
Other details
| Brand | INFINEON |
| Part Number | REFXDPL8210U35WTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14269.19 |
| 3-5 | ₹ 14123.59 |
| 5-10 | ₹ 13832.38 |
| 10+ | ₹ 13541.17 |
Bulk discount will be automatically applied during checkout based on quantity.
