| ₹ 5646.1 includes GST and import duties. | |
| B2B customers can avail ₹ 861.03 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

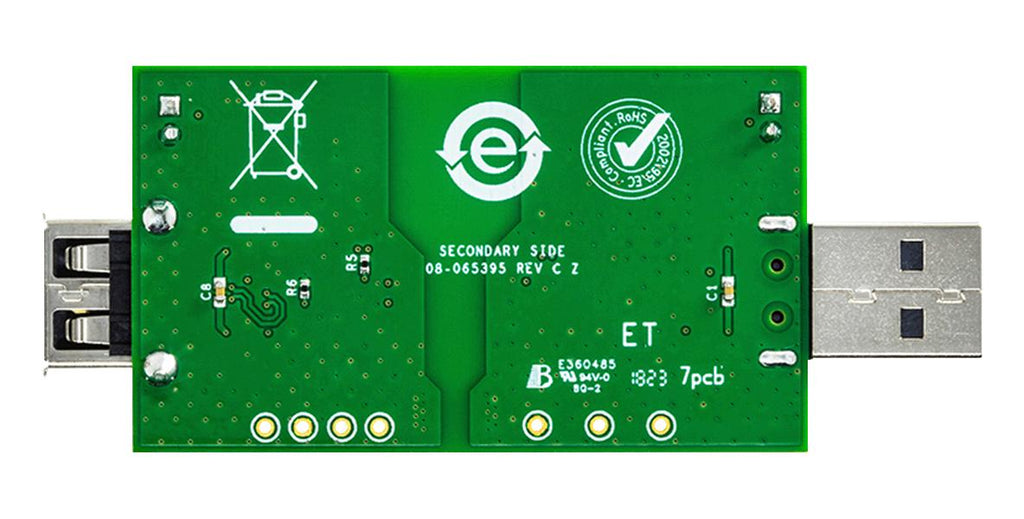

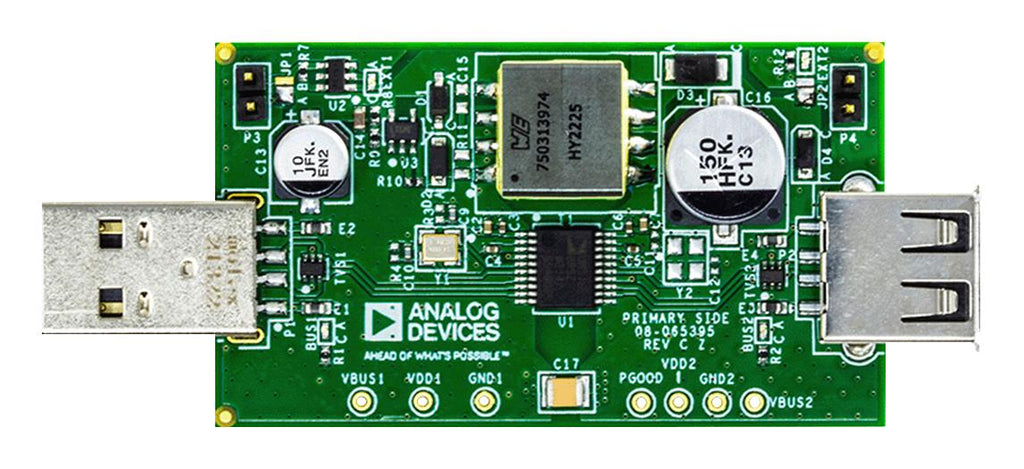

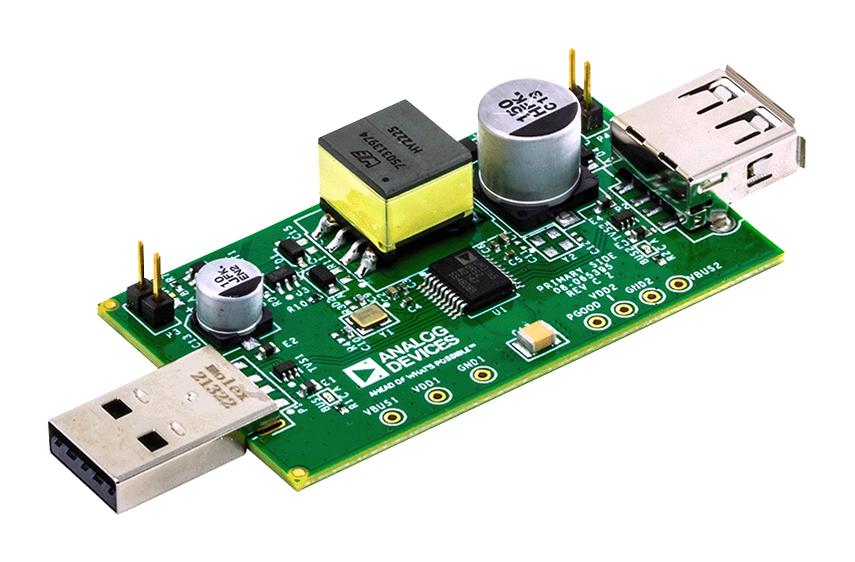

EVAL-CN0550-EBZ is a 4-layer printed circuit board (PCB) that allows evaluation of the CN0550 high speed USB 2.0 peripheral isolator circuit. The board is fabricated with a 0.5oz./1oz. copper cladding and IPC-4101 (or IPC-4103) laminates and bonding materials. Designed to be connected between a host controller and a USB peripheral device, the EVAL-CN0550-EBZ features a small form factor with dimensions of 2.315 in × 1.335 in x 0.062mm (PCB only). The evaluation board uses standard Type-A USB connectors for its signal path for easy integration with USB systems, a male connector is used for the host side and a female connector is used for the peripheral side. Straight headers on each side allow the users to use an external power supply for high-current applications.
- High speed isolated USB 2.0 board
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | EVAL-CN0550-EBZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5533.18 |
| 3-5 | ₹ 5476.72 |
| 5-10 | ₹ 5363.8 |
| 10+ | ₹ 5250.87 |
Bulk discount will be automatically applied during checkout based on quantity.
