Description
Product Overview

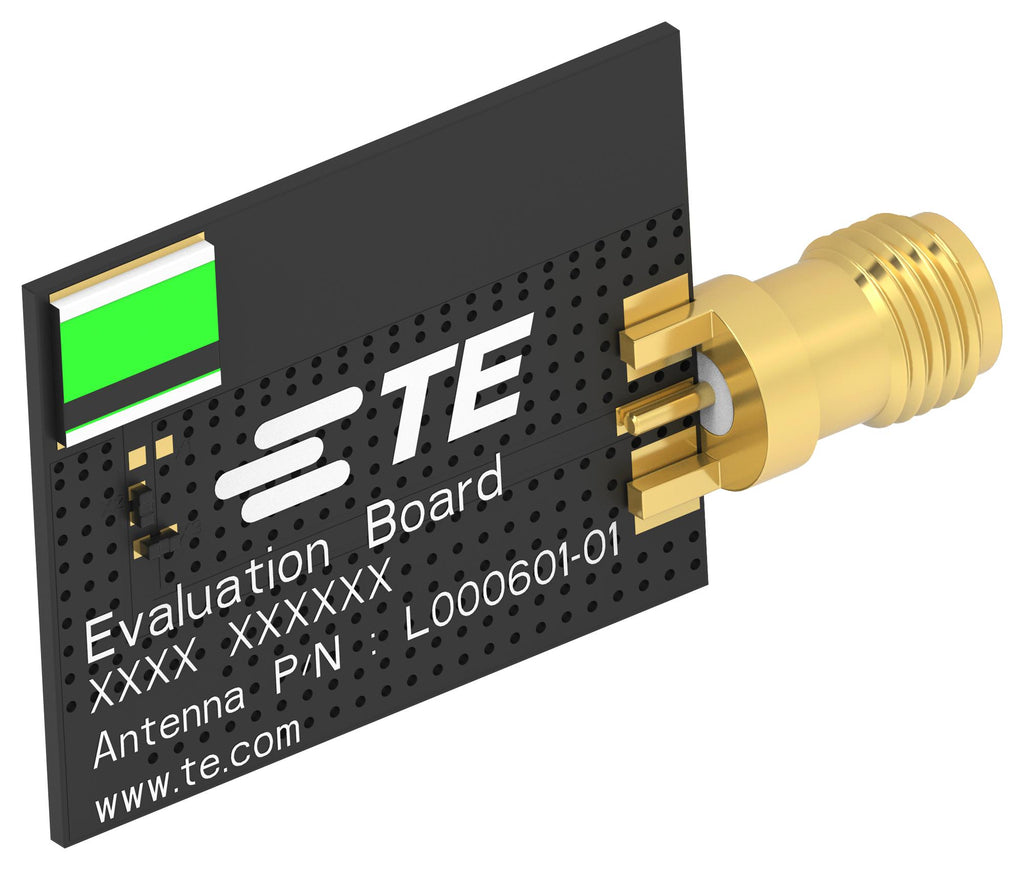

L000601-80 is a 6000 to 8000MHz UWB embedded chip antenna with EVB assembly. Bandwidth and performance dependent on ground plane size/ design suggested minimum ground plane length from antenna feed is 25mm.
- UWB channel 5,6,7,8,9
- On board SMD PCB antenna
- < 2.5 :1 VSWR, 53.1% average efficiency
- 3.7dBi peak gain, -2.8dBi average gain
- 10Watt cw power handling, 50 ohms feed point impedance
- Linear polarization
- Surface mounting
- Operating temperature range from -40 to +125°C
- Size (L x W x H) is 6.0mm x 5.0mm x 0.5mm (L/W±0.3mm?H±0.15mm)
Product details
Other details
| Brand | TE CONNECTIVITY |
| Part Number | L000601-80 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 6070.27 |
| 3-5 | ₹ 6008.33 |
| 5-10 | ₹ 5884.44 |
| 10+ | ₹ 5760.56 |
Bulk discount will be automatically applied during checkout based on quantity.
