Description
Product Overview

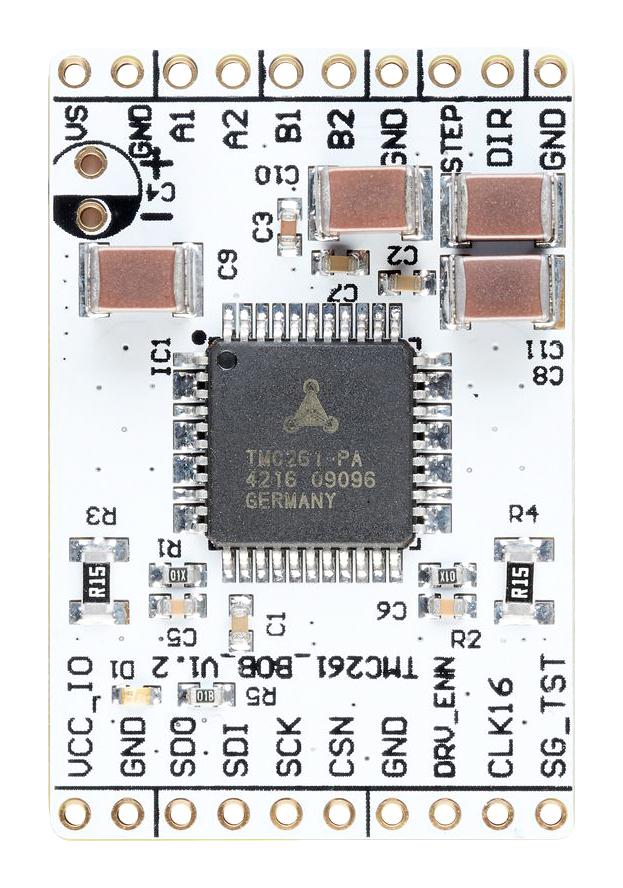

TMC261-BOB breakout board is a development board with the dedicated TMC261-PA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
- TMC261-PA stepper power driver
- Supply voltage 9-48V (60V max), Iphase, RMS up to 1.4A
- Configuration via SPI, control via step/direction
- Optional cooling from bottom side, optional electrolyte cap at supply rail
- Board width is 38.1mm, board height is 25.4mm
- 2x10 pin 0.1" header rows for pins/connectors
- StallGuard2�, CoolStep�, SpreadCycle�, MicroPlyer�
- 1 to 256 Microsteps
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | TMC261-BOB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 8879.92 |
| 3-5 | ₹ 8789.31 |
| 5-10 | ₹ 8608.08 |
| 10+ | ₹ 8426.86 |
Bulk discount will be automatically applied during checkout based on quantity.
