Description

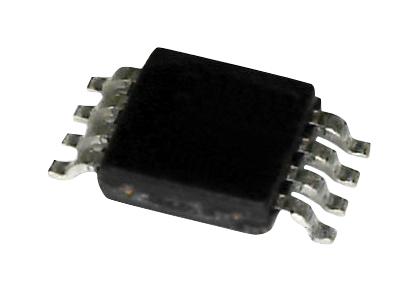

The OPA2354AIDGKR is a dual high-speed voltage-feedback CMOS Operational Amplifier with rail-to-rail input and output. It is unity-gain stable and can drive large output currents. Common-mode input range extends beyond the supplies. The output swing is within 100mV of the rails, supporting wide dynamic range. For applications requiring the full 100mA continuous output current. Multichannel version feature completely independent circuitry for lowest crosstalk and freedom from interaction.
- Thermal shutdown
- 6.5nV/Hz Low noise
- 100mA High output current
- 3pA Low input bias current
- 4.9mA Quiescent current
- 4µV/°C Typical offset drift
- 80dB Typical CMRR
- Green product and no Sb/Br
Applications
Imaging, Video & Vision, Audio, Test & Measurement, Signal Processing, Sensing & Instrumentation, Communications & Networking
Product details
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | OPA2354AIDGKR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
