Description

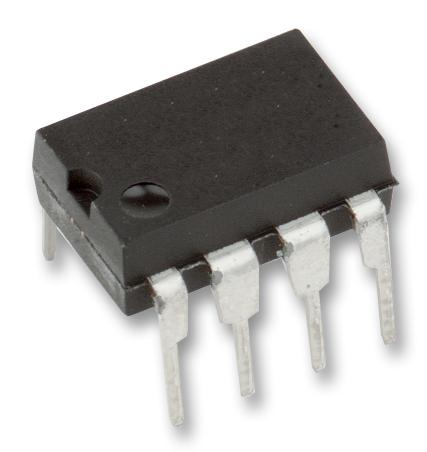

The NE5532 is a high-performance operational amplifier combining excellent dc and ac characteristics. It features very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.
- High DC voltage gain
- High slew rate
Applications
Audio, Communications & Networking, Signal Processing
Product details
| No. of Amplifiers: 2 Amplifier |
| Bandwidth: 10MHz |
| Slew Rate: 9V/µs |
| Supply Voltage Range: ± 5V to ± 15V |
| Amplifier Case Style: DIP |
| No. of Pins: 8Pins |
| Operating Temperature Min: 0°C |
| Operating Temperature Max: 70°C |
| Automotive Qualification Standard: -888 |
| MSL: - |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | NE5532P |
| Quantity | Each |
| Technical Data Sheet EN |  |
